AIO Wall Mounted

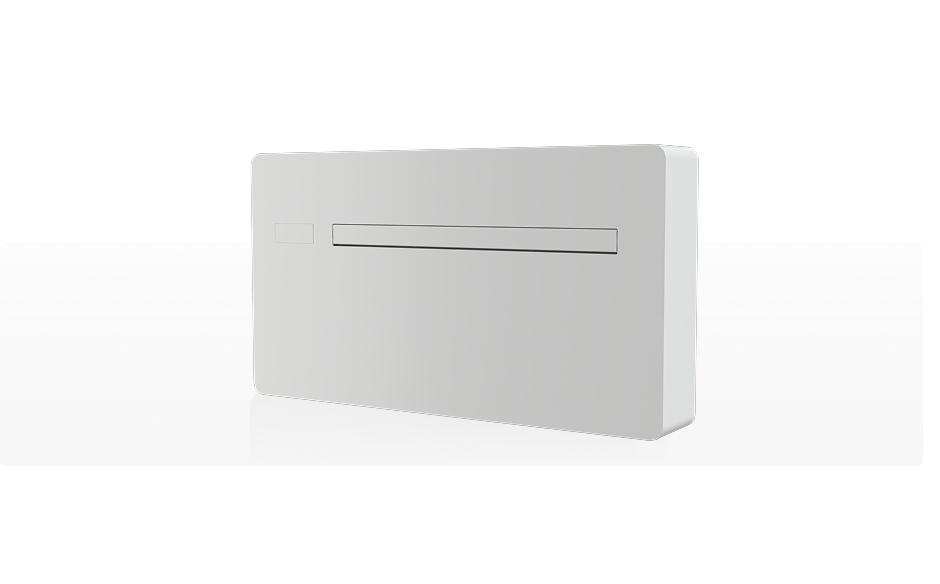

AIO Wall Mounted units are slim and sleek.

AIO Wall Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted units are available with an optional ERV module. Special adapters enable the unit to be installed perpendicular to an outside wall.

Key Features

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters

Options

  • 900/1,800W electric heat
  • Optional ERV module
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)

Mounting

  • High wall
  • Low wall
  • Sidewall with adapter

Airflow

  • Dual 8-inch external vents
  • Available 0.25" WC for louvers

Included controls

  • Onboard touch controller

Optional controllers

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Airflow

In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.

  • Outside air
  • Recirculate air

A - Outside air intake

The 8-inch (adaptable to 6-inch) outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

B - Outside air exhaust

The 8-inch (adaptable to 6-inch) round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

C - Return air

The return air is on the top through the integrated return air grille.

D - Supply air

The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.

Installation

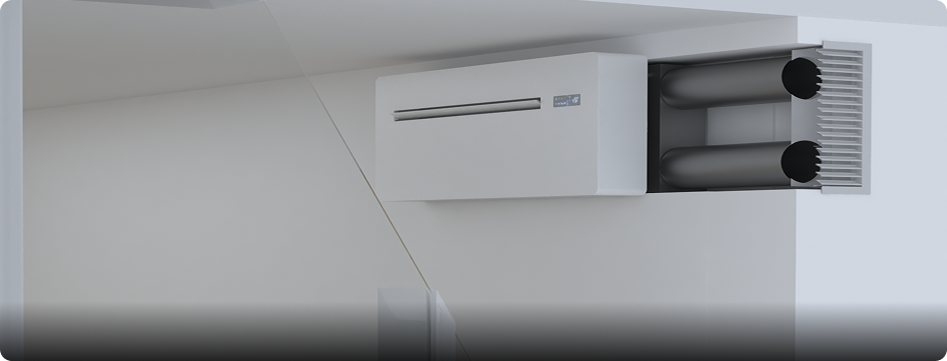

High-wall install

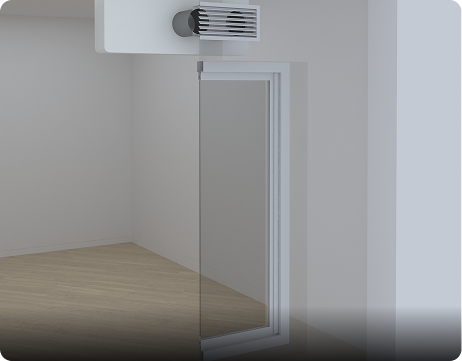

Low-wall install

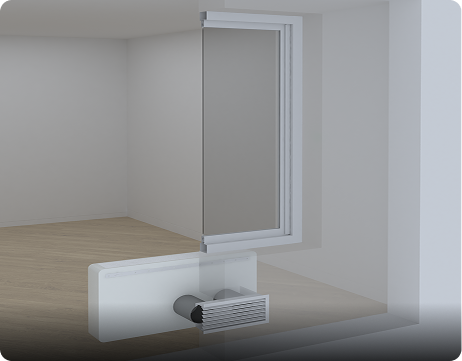

Low-wall install

What's Inside

Key Specifications

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 10.2
  • 9.0
  • 7.4
  • 3.3



  • 1.1
  • 1.05
  • 0.81
  • 0.21



  • 8.2
  • 8.6
  • 9.2
  • 13.65

1.9



105°F 2



  • 8.0
  • 7.5
  • 7.3
  • 3.3



  • 1.00
  • 0.93
  • 0.90
  • 0.24



  • 8.0
  • 8.1
  • 8.22
  • -

2.1



115°F 3



  • 7.5
  • 7.1
  • 7.1
  • 3.3



  • 1.08
  • 0.99
  • 0.99
  • 0.27



  • 7.0
  • 7.2
  • 7.2
  • -

2.3

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 10.1
  • 8.8
  • 7.4
  • 3.0



  • 1.03
  • 0.85
  • 0.70
  • 0.23



  • 2.9
  • 3.0
  • 3.1
  • 3.8
  • 7.1



17°F 2



  • 6.4
  • 5.7
  • 5.1
  • 3.0



  • 0.97
  • 0.87
  • 0.83
  • 0.41



  • 1.93
  • 1.92
  • 1.81
  • 2.2
  • -



5°F 3



  • 6.0
  • 5.9
  • 5.3
  • 3.0



  • 1.43
  • 1.04
  • 0.91
  • 0.42



  • 1.2
  • 1.7
  • 1.7
  • 2.1
  • -



0°F 4



  • 5.7
  • 5.7
  • 5.1
  • 3.0



  • 1.40
  • 1.04
  • 0.90
  • 0.43



  • 1.2
  • 1.6
  • 1.7
  • 2.0
  • -



-5°F 5



  • 5.3
  • 5.1
  • 4.9
  • 3.0



  • 1.32
  • 1.07
  • 0.93
  • 0.44



  • 1.2
  • 1.4
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 10.2
  • 9.0
  • 6.7
  • 3.3



  • 1.1
  • 1.05
  • 0.65
  • 0.21



  • 9.3
  • 8.6
  • 10.5
  • 15.2

1.9



105°F 2



  • 8.0
  • 7.5
  • 7.3
  • 3.3



  • 1.00
  • 0.93
  • 0.90
  • 0.24



  • 8.0
  • 8.1
  • 8.22
  • -

2.1



115°F 3



  • 7.5
  • 7.1
  • 7.1
  • 3.3



  • 1.08
  • 0.99
  • 0.99
  • 0.27



  • 7.0
  • 7.2
  • 7.2
  • -

2.3

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 10.1
  • 8.8
  • 6.7
  • 3.0



  • 1.03
  • 0.85
  • 0.59
  • 0.23



  • 2.9
  • 3.0
  • 3.3
  • 3.8
  • 8.6



17°F 2



  • 6.4
  • 5.7
  • 4.8
  • 3.0



  • 0.97
  • 0.87
  • 0.62
  • 0.41



  • 1.93
  • 1.92
  • 2.27
  • 2.2
  • -



5°F 3



  • 6.0
  • 5.0
  • 4.5
  • 3.0



  • 1.43
  • 0.86
  • 0.75
  • 0.42



  • 1.2
  • 1.7
  • 1.77
  • 2.1
  • -



0°F 4



  • 5.7
  • 5.7
  • 5.1
  • 3.0



  • 1.40
  • 1.04
  • 0.90
  • 0.43



  • 1.2
  • 1.6
  • 1.7
  • 2.0
  • -



-5°F 5



  • 5.3
  • 5.1
  • 4.9
  • 3.0



  • 1.32
  • 1.07
  • 0.93
  • 0.44



  • 1.2
  • 1.4
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 3.0
  • 2.6
  • 2.2
  • 1.0



  • 1.1
  • 1.05
  • 0.81
  • 0.21



  • 8.2
  • 8.6
  • 9.2
  • 13.65

0.9



41°C 2



  • 2.3
  • 2.2
  • 2.1
  • 1.0



  • 1.00
  • 0.93
  • 0.90
  • 0.24



  • 8.0
  • 8.1
  • 8.22
  • -

1.0



46°C 3



  • 2.2
  • 2.1
  • 2.1
  • 1.0



  • 1.08
  • 0.99
  • 0.99
  • 0.27



  • 7.0
  • 7.2
  • 7.2
  • -

1.1

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 2.9
  • 2.6
  • 2.2
  • 0.9



  • 1.03
  • 0.85
  • 0.70
  • 0.23



  • 2.9
  • 3.0
  • 3.1
  • 3.8
  • 7.1



-8°C 2



  • 1.9
  • 1.7
  • 1.5
  • 0.9



  • 0.97
  • 0.87
  • 0.83
  • 0.41



  • 1.93
  • 1.92
  • 1.81
  • 2.2
  • -



-15°C 3



  • 1.8
  • 1.7
  • 1.6
  • 0.9



  • 1.43
  • 1.04
  • 0.91
  • 0.42



  • 1.2
  • 1.7
  • 1.7
  • 2.1
  • -



-17°C 4



  • 1.7
  • 1.7
  • 1.5
  • 0.9



  • 1.40
  • 1.04
  • 0.90
  • 0.43



  • 1.2
  • 1.6
  • 1.7
  • 2.0
  • -



-20°C 5



  • 1.6
  • 1.5
  • 1.4
  • 0.9



  • 1.32
  • 1.07
  • 0.93
  • 0.44



  • 1.2
  • 1.4
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 3.0
  • 2.6
  • 2.0
  • 1.0



  • 1.1
  • 1.05
  • 0.65
  • 0.21



  • 9.3
  • 8.6
  • 10.5
  • 15.2

0.9



41°C 2



  • 2.3
  • 2.2
  • 2.1
  • 1.0



  • 1.00
  • 0.93
  • 0.90
  • 0.24



  • 8.0
  • 8.1
  • 8.22
  • -

1.0



46°C 3



  • 2.2
  • 2.1
  • 2.1
  • 1.0



  • 1.08
  • 0.99
  • 0.99
  • 0.27



  • 7.0
  • 7.2
  • 7.2
  • -

1.1

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space.

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 2.9
  • 2.6
  • 2.0
  • 0.9



  • 1.03
  • 0.85
  • 0.59
  • 0.23



  • 2.9
  • 3.0
  • 3.3
  • 3.8
  • 8.6



-8°C 2



  • 1.9
  • 1.7
  • 1.4
  • 0.9



  • 0.97
  • 0.87
  • 0.62
  • 0.41



  • 1.93
  • 1.92
  • 2.27
  • 2.2
  • -



-15°C 3



  • 1.8
  • 1.5
  • 1.3
  • 0.9



  • 1.43
  • 0.86
  • 0.75
  • 0.42



  • 1.2
  • 1.7
  • 1.77
  • 2.1
  • -



-17°C 4



  • 1.7
  • 1.7
  • 1.5
  • 0.9



  • 1.40
  • 1.04
  • 0.90
  • 0.43



  • 1.2
  • 1.6
  • 1.7
  • 2.0
  • -



-20°C 5



  • 1.6
  • 1.5
  • 1.4
  • 0.9



  • 1.32
  • 1.07
  • 0.93
  • 0.44



  • 1.2
  • 1.4
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
Download Full PDF

Documentation

Gen 1

Data Sheet

Installation

BIM

Gen 2

Data Sheet

Installation

BIM

Gen 3

Data Sheet

Installation

BIM

Beware of Fake Units

Fraudulent Specs in Chinese Counterfeit INNOVA Units

INNOVA’s $1,000,000 Challenge

Take the Challenge
