AIO Slim V

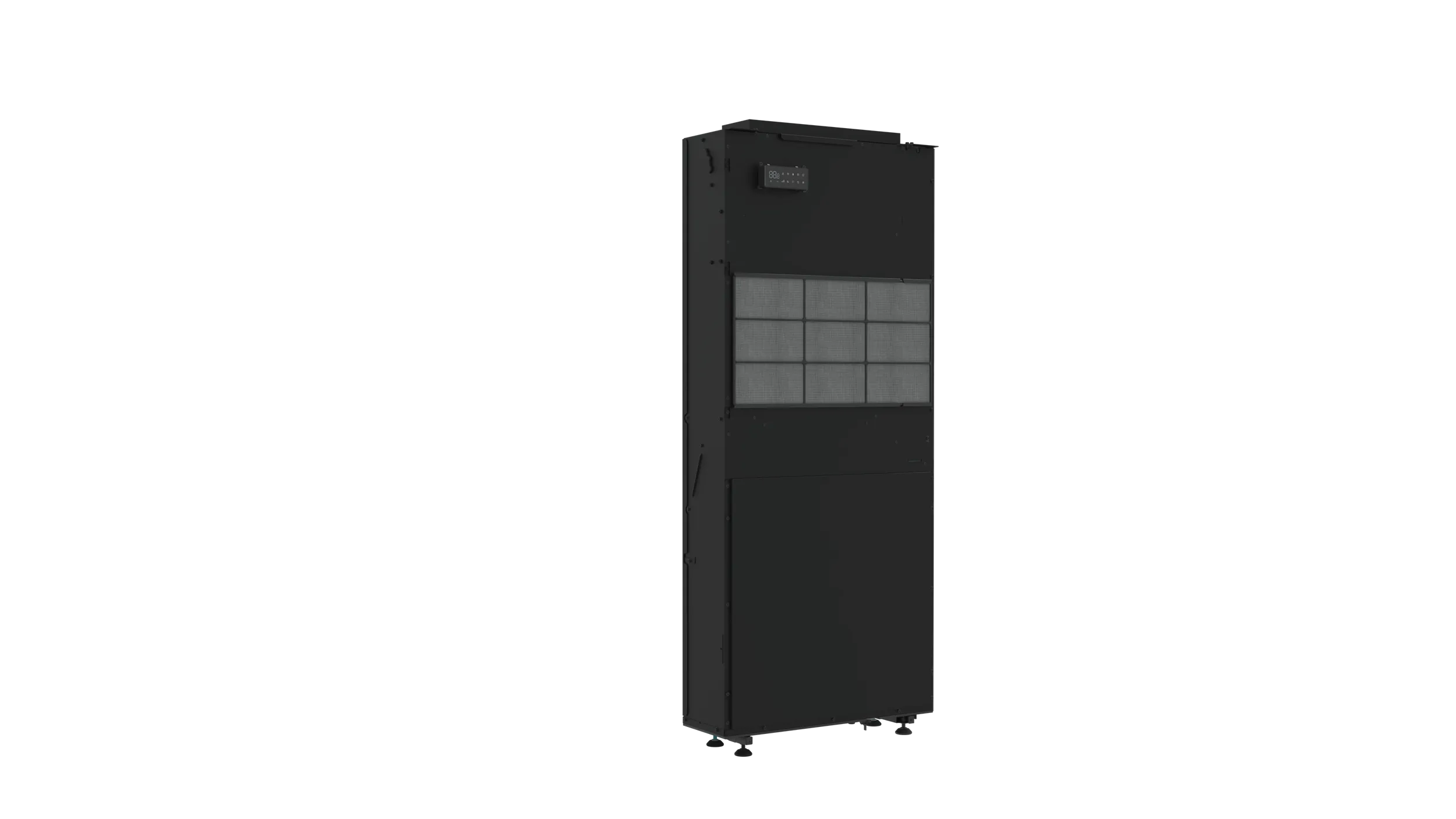

AIO Slim V unit render

High-Performance All-In-One Heat Pump

AIO Slim-V units are the slimmest concealed VTAC available, at just 9" (228mm) deep. The ultra-slim profile allows flexible placement, including angled installations, for quick setup. Ideal for tight spaces, they feature an onboard touch controller and optional Wi-Fi and wall controllers.

Key Features

  • Ultra-slim
  • Easy to install
  • Auto-restart
  • Washable filters

Options

  • 115V or 230V
  • Hardwire or LCDI cord
  • R32
  • 0.9 kW heat strip

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Airflow

  • Dual 8‑inch (203 mm) external vents
  • Available 0.25" WC (62 Pa) for louvers

Included Controllers

  • Onboard touch controller

Optional Controllers

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7‑day program
  • Wall Mounted Basic touch controller
  • Third-party thermostat interface
  • BACnet/Modbus interface

Installation

An empty room by a city-view window, ready for an AIO Slim V

Technical Specifications

Cooling
Heat Pump only95°F¹105°F²115°F³
Capacity
Maximum (kBtu/h)10.28.07.5
Nominal (kBtu/h)9.37.47.1
Minimum(kBtu/h)3.93.33.3
Efficiency
SEER216--
1
95°F
ID: 80°F, W.B. 67°F;
OD: 95°F, W.B. 75°F
2
105°F
ID: 80°F, W.B. 67°F;
OD: 105°F, W.B. 75°F
3
115°F
ID: 80°F, W.B. 67°F;
OD: 115°F, W.B. 75°F
Heating
Heat Pump only*47°F¹17°F²5°F³0°F⁴-5°F⁵
Capacity
Maximum (kBtu/h)10.18.36.05.75.3
Nominal (kBtu/h)9.27.45.35.14.9
Minimum(kBtu/h)3.03.03.03.03.0
Efficiency
HSPF28.9----
1
47°F
ID: 70°F, W.B. 60°F;
OD: 47°F, W.B. 43°F
2
17°F
ID: 70°F, W.B. 60°F;
OD: 17°F, W.B. 13°F
3
5°F
ID: 70°F, W.B. 60°F;
OD: 5°F, W.B. 3°F
4
0°F
ID: 70°F, W.B. 60°F;
OD: 0°F
5
-5°F
ID: 70°F, W.B. 60°F;
OD: -5°F

* The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output up to 15.3 kBtu/h (4.5 kW).

Cooling
Heat Pump only35°C¹41°C²46°C³
Capacity
Maximum (kW)3.02.32.2
Nominal (kW)2.72.22.1
Minimum(kW)1.11.01.0
Efficiency
SEER216--
1
35°C
ID: 26.7°C, W.B. 19.4°C;
OD: 35°C, W.B. 23.9°C
2
41°C
ID: 26.7°C, W.B. 19.4°C;
OD: 40.6°C, W.B. 23.9°C
3
46°C
ID: 26.7°C, W.B. 19.4°C;
OD: 46.1°C, W.B. 23.9°C
Heating
Heat Pump only*8°C¹-8°C²-15°C³-17°C⁴-20°C⁵
Capacity
Maximum (kW)3.02.41.81.71.6
Nominal (kW)2.72.21.61.51.4
Minimum(kW)0.90.90.90.90.9
Efficiency
HSPF28.9----
1
8°C
ID: 21.1°C, W.B. 15.6°C;
OD: 8.3°C, W.B. 6.1°C
2
-8°C
ID: 21.1°C, W.B. 15.6°C;
OD: -8.3°C, W.B. -10.6°C
3
-15°C
ID: 21.1°C, W.B. 15.6°C;
OD: -15°C, W.B. -16.1°C
4
-17°C
ID: 21.1°C, W.B. 15.6°C;
OD: -17.8°C
5
-20°C
ID: 21.1°C, W.B. 15.6°C;
OD: -20.6°C

* The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output up to 4.5 kW (15.3 kBtu/h).

View Full Specs
