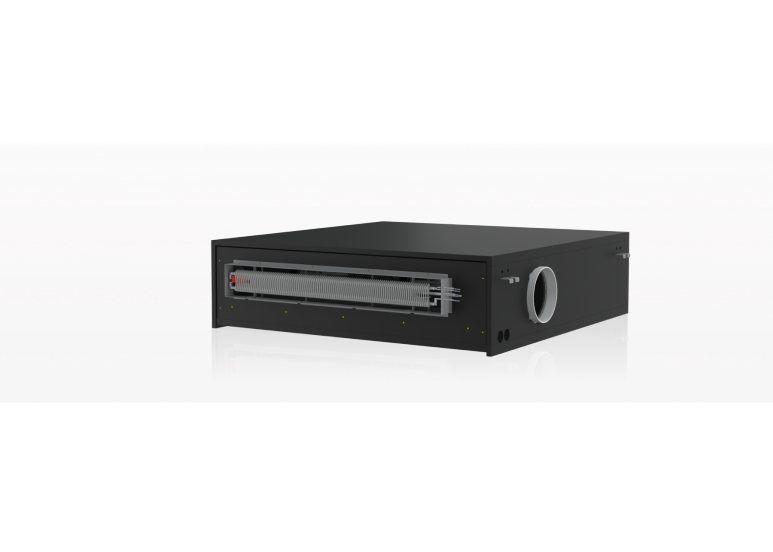

AIO Ceiling Ducted

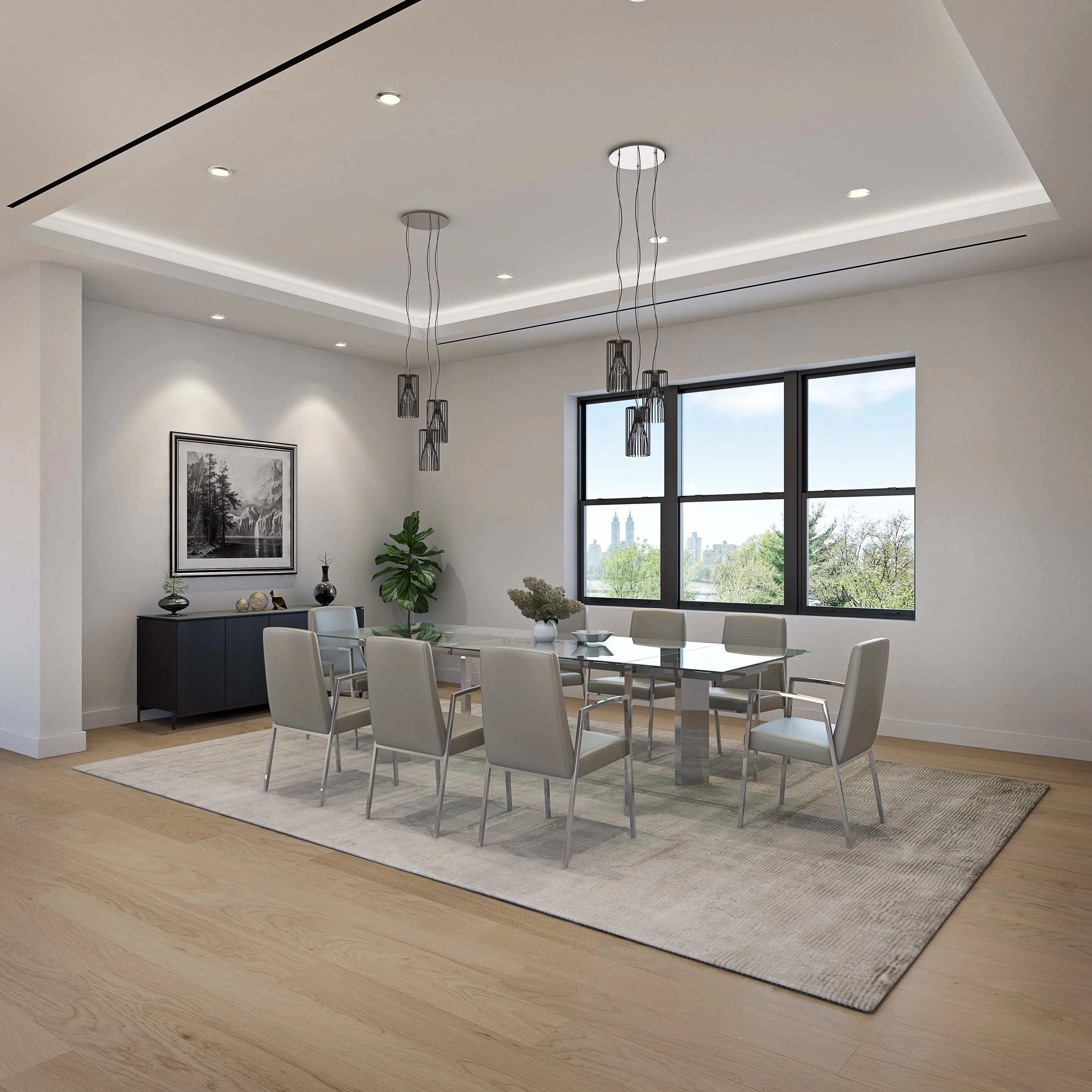

AIO Ceiling Ducted can be discreetly installed above a ceiling.

AIO Ceiling Ducted units install discreetly above a ceiling and are ideal for single or multi-room applications. The return can come from the sides or bottom for maximum flexibility. With up to 0.6″ WC external static pressure, they work well where ducting is required. Pair with any interior grille and louver for added design flexibility, and connect a bathroom exhaust to the dedicated stale-air outlet. Available with or without integrated ERV.

Key Features

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Auto-restart
  • Washable filters

Options

  • Optional 900 or 1,800W electric heat
  • With With or without ERV
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV - field configurable amount of fresh air

Mounting

  • Ceiling
  • Underfloor

Airflow

  • Dual 8-inch external vents
  • Available 0.7" WC for external ducting, adapters, and louvers
  • Available 0.6" WC for internal ducting and louvers

Included controls

  • Onboard touch controller for diagnostics and programing (on bottom of the unit)

Optional controllers

  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

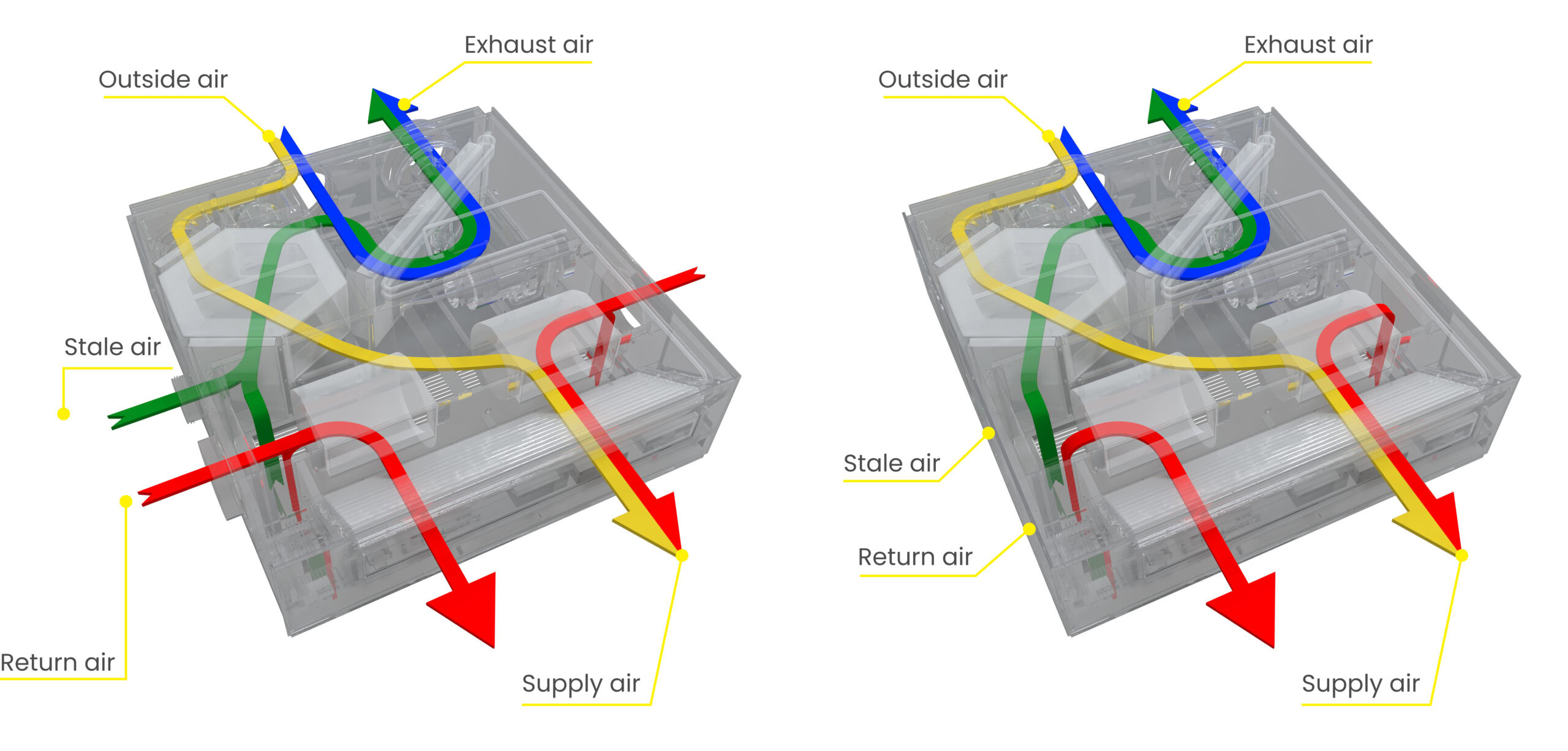

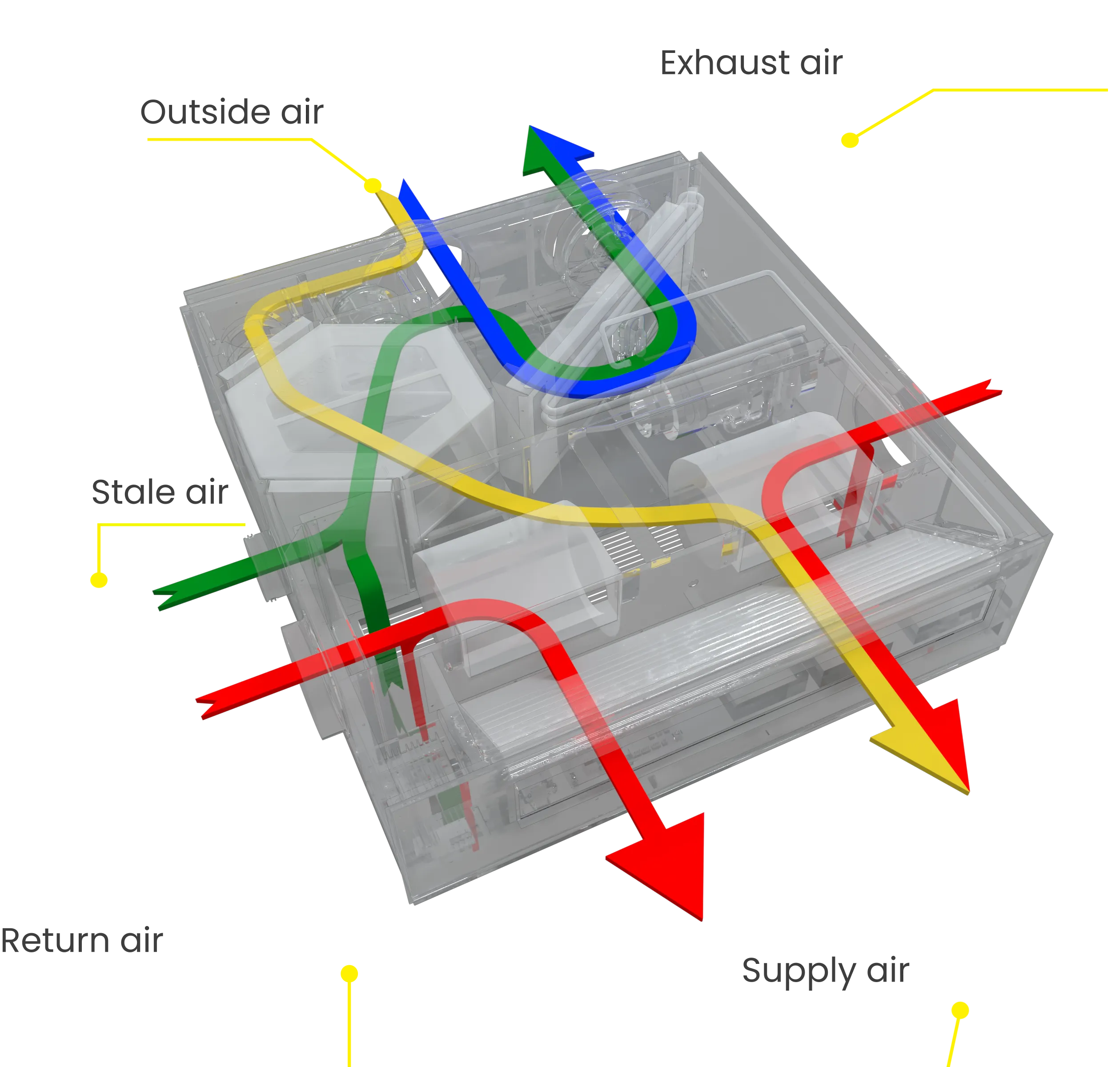

Airflow

AIO Ceiling Ducted is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Ducted to be placed anywhere in a dwelling without restrictions.

  • Outside air
  • Recirculate air
  • Fresh air intake
  • Stale air exhaust

Supply air

The rectangular 4” x 29” supply air connection is ideal for a supply grille or ducting, with up to 0.6” external static pressure (combined between return and supply).

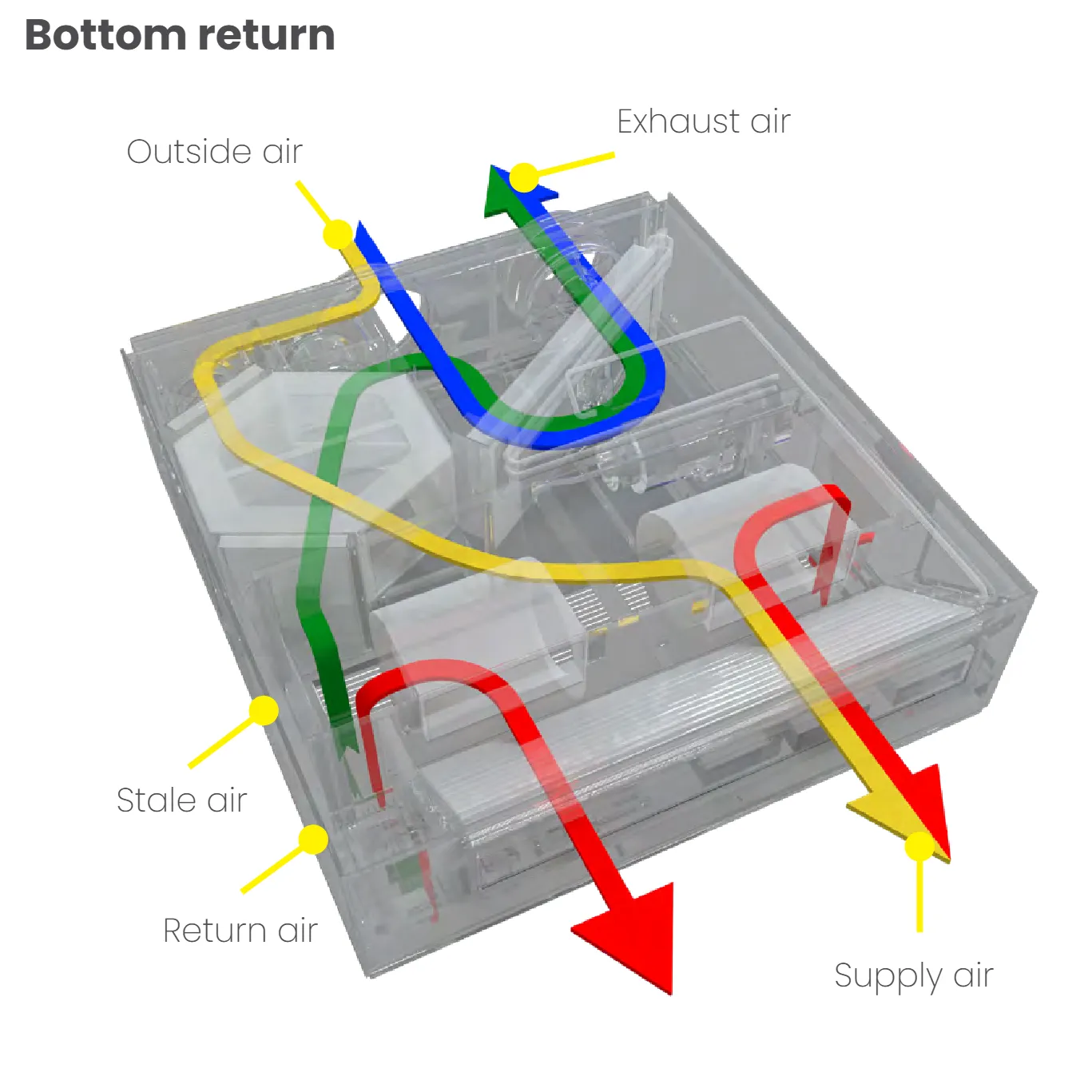

Return air - bottom option

The bottom 8.7” x 22” return is designed to be used with a ceiling-mounted return grille or an access panel with an integrated return grille.

Outside air intake

The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

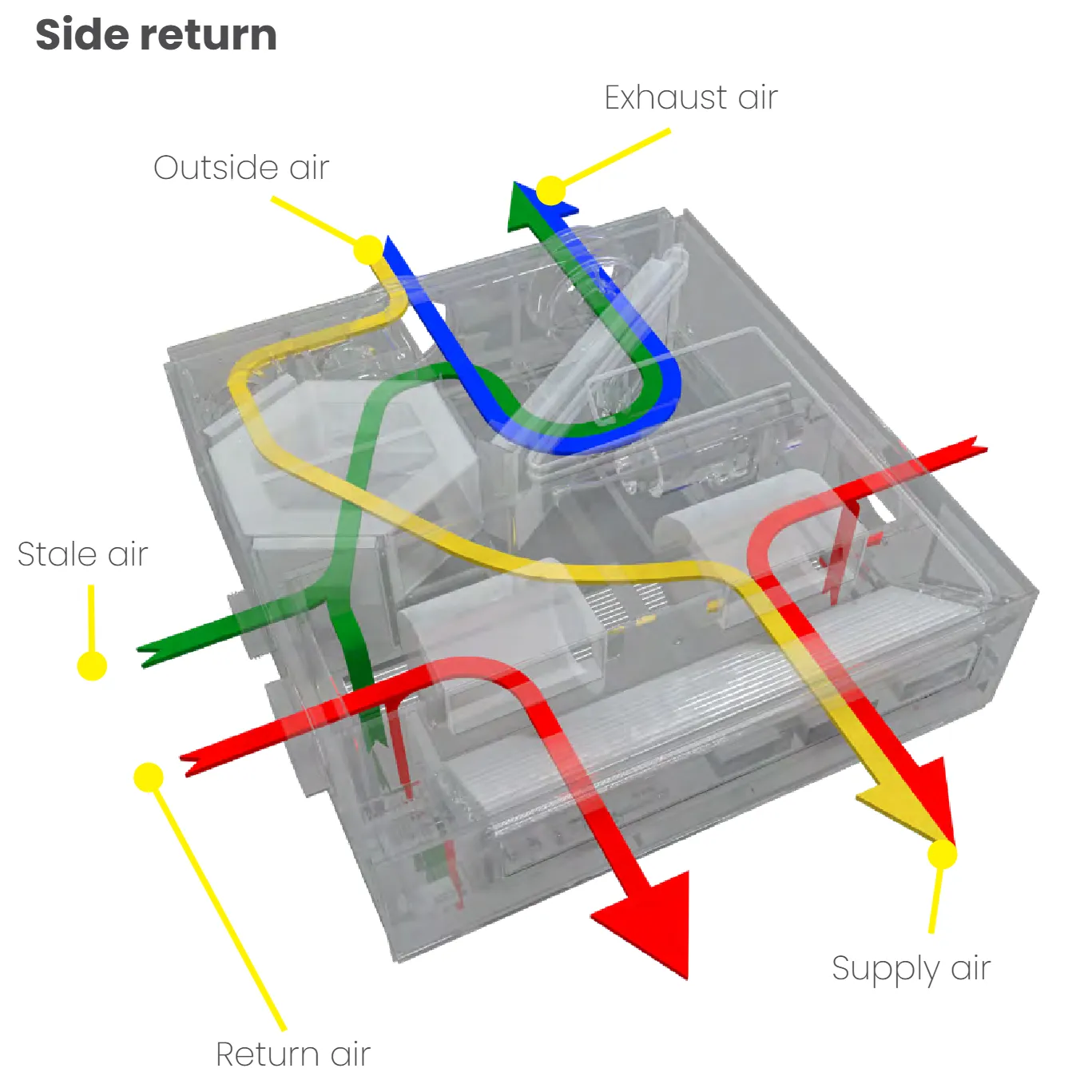

Return air - sides options

The left and right side 6” round connection can be ducted to one or more rooms with up to 0.6” external static pressure (combined between return and supply). It can also be left open as a side plenum return. Each connection is fully independent with two ECM fans, each with auto ESP, each connection is fully independent. Duct both, leave both open or duct one, and leave one open to a plenum.

Stale air exhaust

The five-inch round stale air exhaust connection can be used as part of a plenum return without any ducting or can be ducted to a bathroom or multiple locations with up to 0.5” WC external static pressure. If configuring AIO Ceiling Ducted with a bottom return, the stale air can also be pulled from the bottom return.

Outside air exhaust

The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

Installation

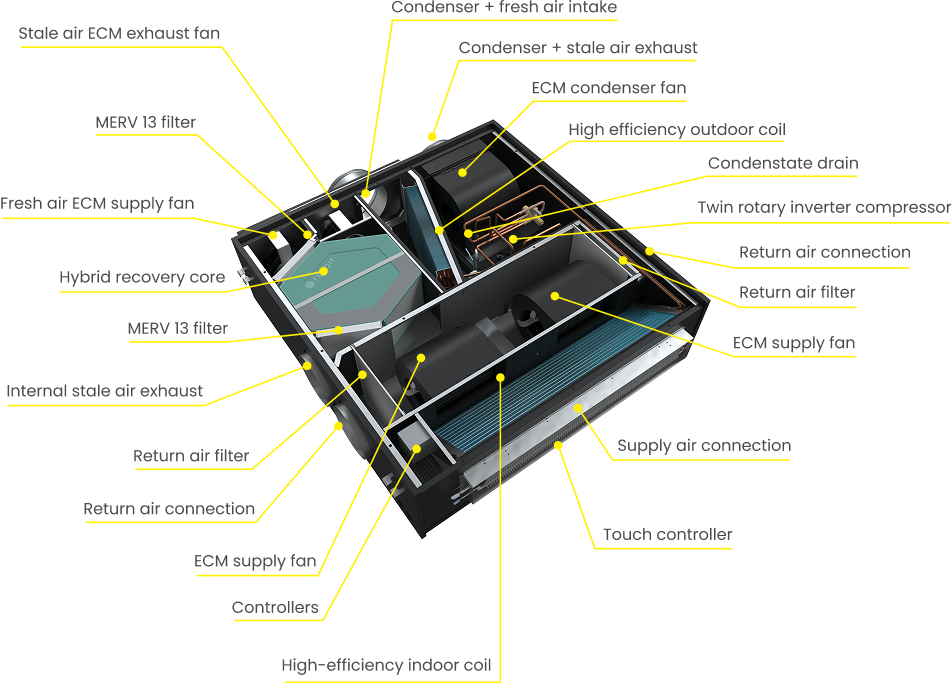

What's Inside

Key Specifications

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 7.7
  • 3.1



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.85

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.98
  • 0.83
  • 0.26



  • 7.0
  • 8.4
  • 8.9
  • -

2



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 9.3
  • 8.3
  • 3.3



  • 1.46
  • 0.99
  • 0.86
  • 0.42



  • 2.0
  • 2.8
  • 2.8
  • 2.3
  • -



5°F 3



  • 6.6
  • 9.3
  • 8.3
  • 3.3



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 1.5
  • 1.7
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.06
  • 1.06
  • 0.43



  • 1.1
  • 1.6
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.01
  • 1.01
  • 0.48



  • 1.0
  • 1.6
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 6.1
  • 3.1



  • 1.58
  • 0.96
  • 0.53
  • 0.23



  • 9.5
  • 9.8
  • 11.6
  • 15.3

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.98
  • 0.83
  • 0.26



  • 7.0
  • 8.4
  • 8.9
  • -

2



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.8
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 8.7
  • 7.8
  • 3.3



  • 1.46
  • 0.99
  • 0.86
  • 0.42



  • 1.1
  • 2.8
  • 2.8
  • 3.0
  • -



5°F 3



  • 6.6
  • 6.2
  • 6.2
  • 2.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 1.5
  • 1.8
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.06
  • 1.06
  • 0.43



  • 1.1
  • 1.6
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.01
  • 1.01
  • 0.48



  • 1.0
  • 1.6
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 4.4
  • 2.8
  • 2.3
  • 0.9



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.85

0.9



41°C 2



  • 3.3
  • 2.4
  • 2.2
  • 0.9



  • 1.64
  • 0.98
  • 0.83
  • 0.26



  • 7.0
  • 8.4
  • 8.9
  • -

1.0



46°C 3



  • 2.9
  • 2.1
  • 1.9
  • 0.9



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

1.0

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 4.1
  • 2.7
  • 2.5
  • 1.0



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



-8°C 2



  • 2.9
  • 2.7
  • 2.4
  • 1.0



  • 1.46
  • 0.99
  • 0.86
  • 0.42



  • 2.0
  • 2.8
  • 2.8
  • 2.3
  • -



-15°C 3



  • 1.9
  • 1.8
  • 1.8
  • 0.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 1.5
  • 1.7
  • 1.9
  • -



-17°C 4



  • 1.8
  • 1.7
  • 1.7
  • 0.7



  • 1.60
  • 1.06
  • 1.06
  • 0.43



  • 1.1
  • 1.6
  • 1.6
  • 1.7
  • -



-20°C 5



  • 1.7
  • 1.6
  • 1.6
  • 1.0



  • 1.65
  • 1.01
  • 1.01
  • 0.48



  • 1.0
  • 1.6
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 4.4
  • 2.8
  • 1.8
  • 0.9



  • 1.58
  • 0.96
  • 0.53
  • 0.23



  • 9.5
  • 9.8
  • 11.6
  • 15.3

0.9



41°C 2



  • 3.3
  • 2.4
  • 2.2
  • 0.9



  • 1.64
  • 0.98
  • 0.83
  • 0.26



  • 7.0
  • 8.4
  • 8.9
  • -

1.0



46°C 3



  • 2.9
  • 2.1
  • 1.9
  • 0.9



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

1.0

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 4.1
  • 2.7
  • 2.4
  • 1.0



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.8
  • 3.3
  • 9.2



-8°C 2



  • 2.9
  • 2.6
  • 2.3
  • 1.0



  • 1.46
  • 0.99
  • 0.86
  • 0.42



  • 1.1
  • 2.8
  • 2.8
  • 3.0
  • -



-15°C 3



  • 1.9
  • 1.7
  • 1.7
  • 0.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 1.5
  • 1.8
  • 1.9
  • -



-17°C 4



  • 1.8
  • 1.7
  • 1.7
  • 0.7



  • 1.60
  • 1.06
  • 1.06
  • 0.43



  • 1.1
  • 1.6
  • 1.6
  • 1.7
  • -



-20°C 5



  • 1.7
  • 1.6
  • 1.6
  • 1.0



  • 1.65
  • 1.01
  • 1.01
  • 0.48



  • 1.0
  • 1.6
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
Download Full PDF

Documentation

Without ERV

Data Sheet

Installation

With ERV

Data Sheet

Installation

Bottom Return Configuration

Ceiling Ducted - Mirror Version

Shroud extension

Rough-In Casing
