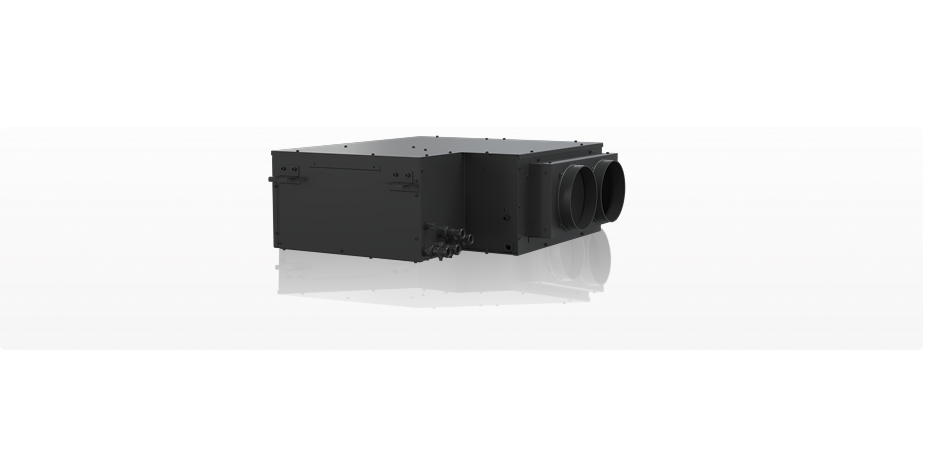

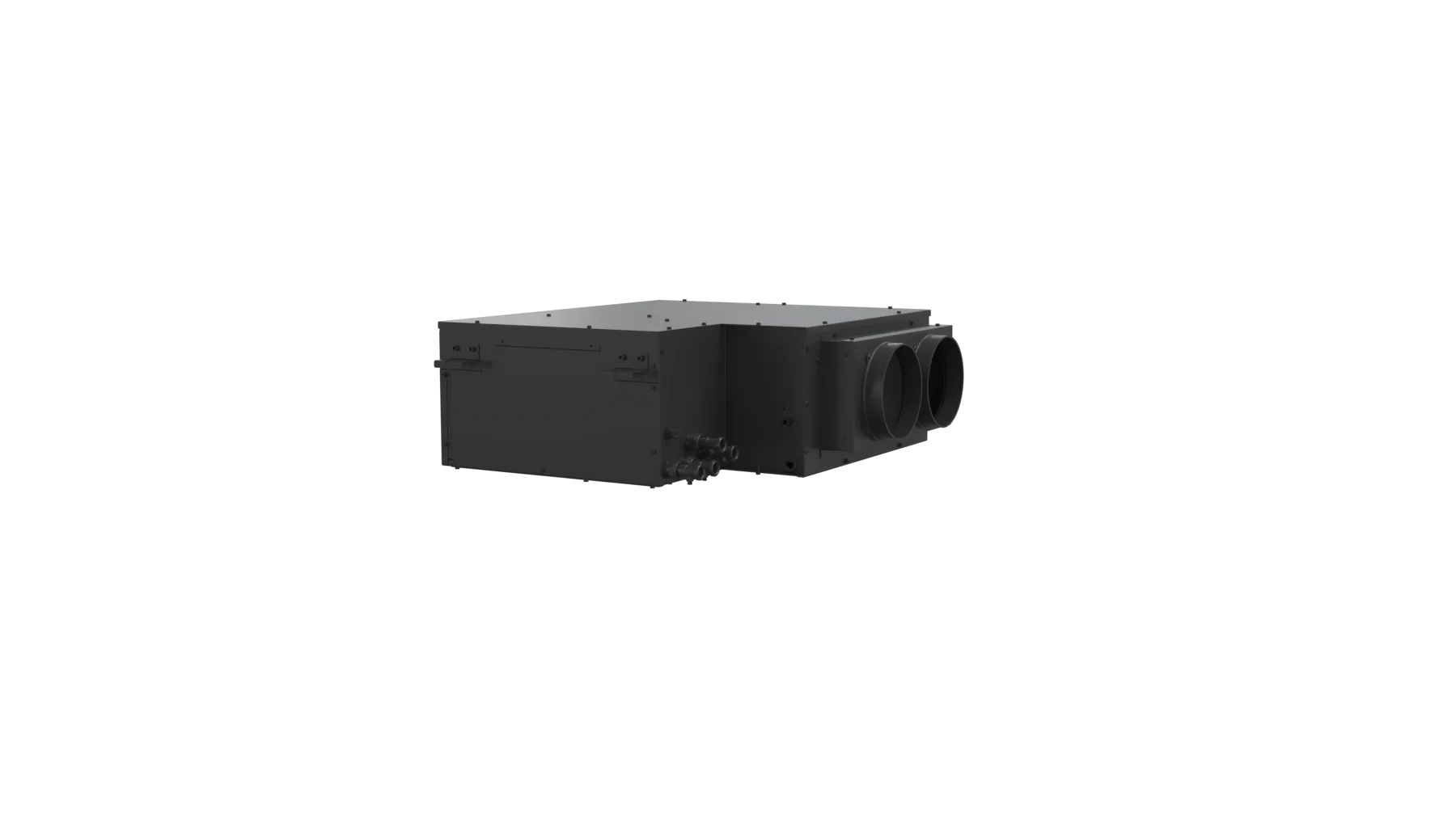

Loop Ceiling Ducted

Compact ducted comfort with flexible installation

Loop Ceiling Ducted is a compact ducted waterloop heat pump delivering high efficiency, quiet operation, inverter-driven performance, smart control, and flexible installation.

Key Benefits

  • Variable speed inverter compressor
  • Easy to install
  • Auto-restart
  • Selectable fan speeds: low, med, high, and auto
  • High seasonal efficiency for reduced operating costs
  • Ideal solution for retrofitting existing hydronic heating systems
  • Quiet operation for residential environments
  • Washable filters for simplified maintenance

Options

  • Wi-Fi app for Android and iPhone
  • Third-party thermostat interface

Key Specifications

Cooling¹



  • Maximum cooling capacity (kBtu/h)
  • Rated cooling capacity(kBtu/h)
  • Minimum cooling capacity (kBtu/h)
  • Rated power consumption (kW)
  • EER



  • 7.5
  • 5.9
  • 1.0
  • 0.4
  • 15.5



  • Maximum heat output (kBTU/h)
  • Rated heat output (kBTU/h)
  • Minimum heat output (kBTU/h)
  • Rated power consumption (kW)
  • COP



  • 8.9
  • 7.5
  • 1.4
  • 0.5
  • 5.2

Cooling¹



  • Maximum heat output(kW)
  • Rated heat output (kW)
  • Minimum heat output (kW)
  • Rated power consumption (kW)
  • COP



  • 2.2
  • 1.7
  • 0.3
  • 0.4
  • 15.5



  • Maximum heat output(kW)
  • Rated heat output (kW)
  • Minimum heat output (kW)
  • Rated power consumption (kW)
  • COP



  • 2.6
  • 2.2
  • 0.4
  • 0.5
  • 5.2
