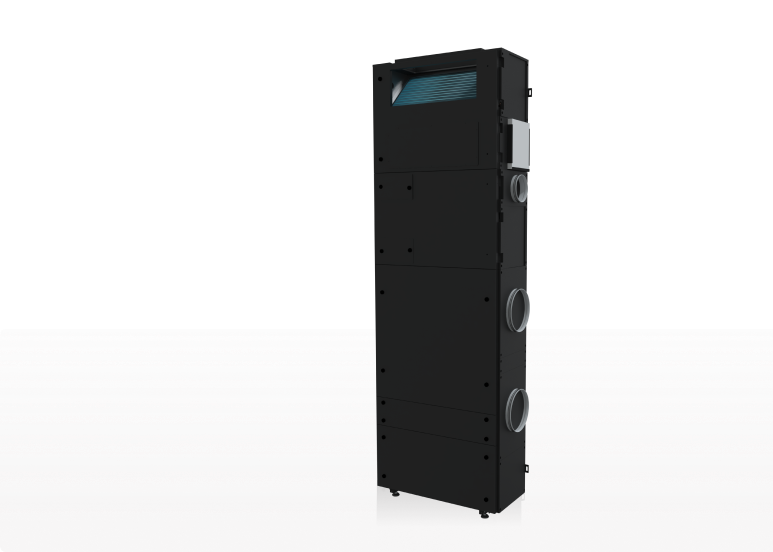

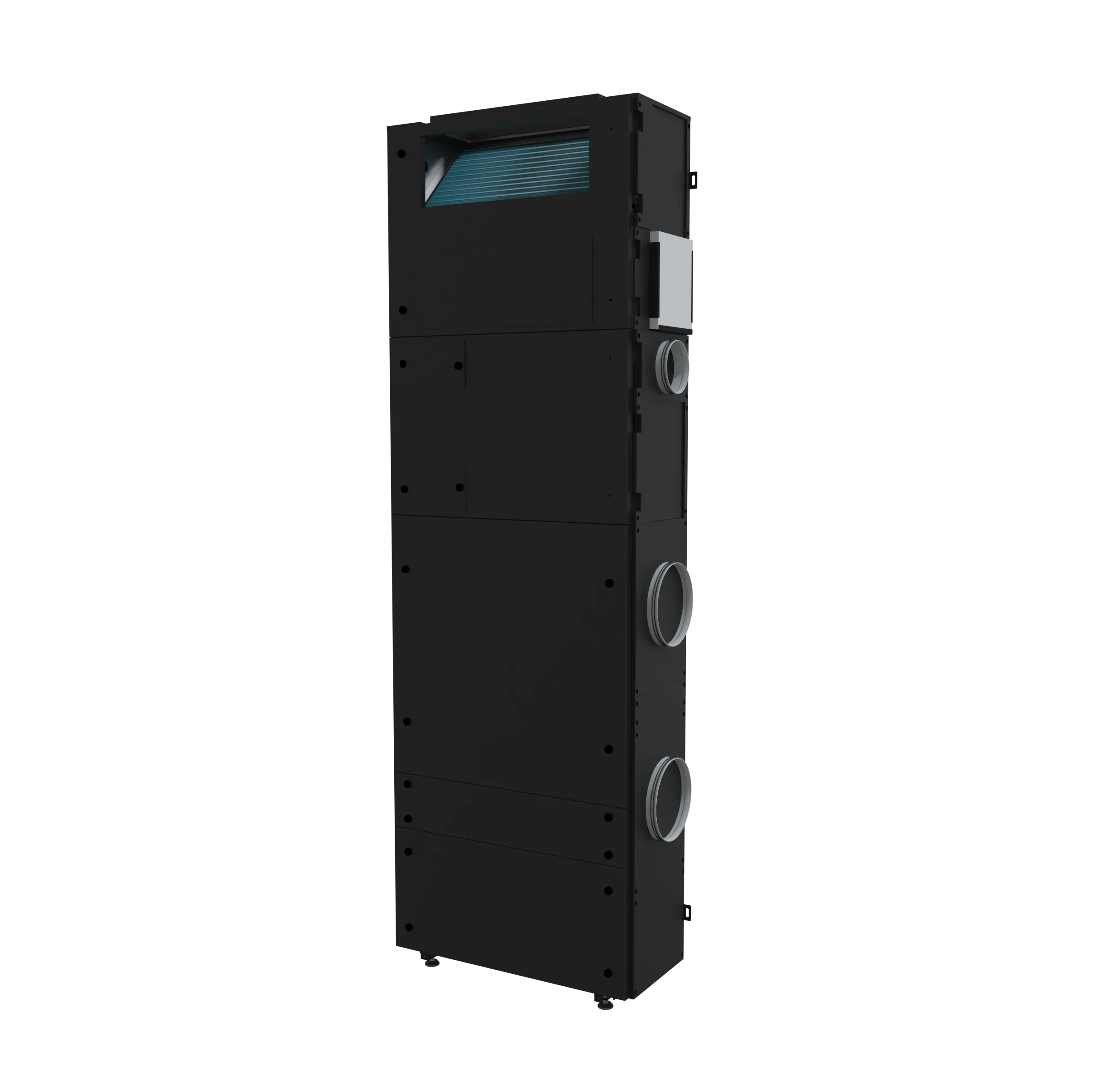

Aio Vertical Stack
AIO Vertical Stack is the ideal multi-room solution.
The AIO Vertical Stack is the ideal multi-room solution when a ceiling unit isn’t feasible. Its compact 12″ x 25″ footprint saves floor space and delivers up to 0.6″ WC static pressure for direct venting or ducting. A unique feature: it installs on a corridor wall for full servicing without entering the room. A bathroom exhaust connects to the dedicated stale-air outlet (field-adjustable left or right). Available with or without integrated ERV, venting outside or through ductwork.

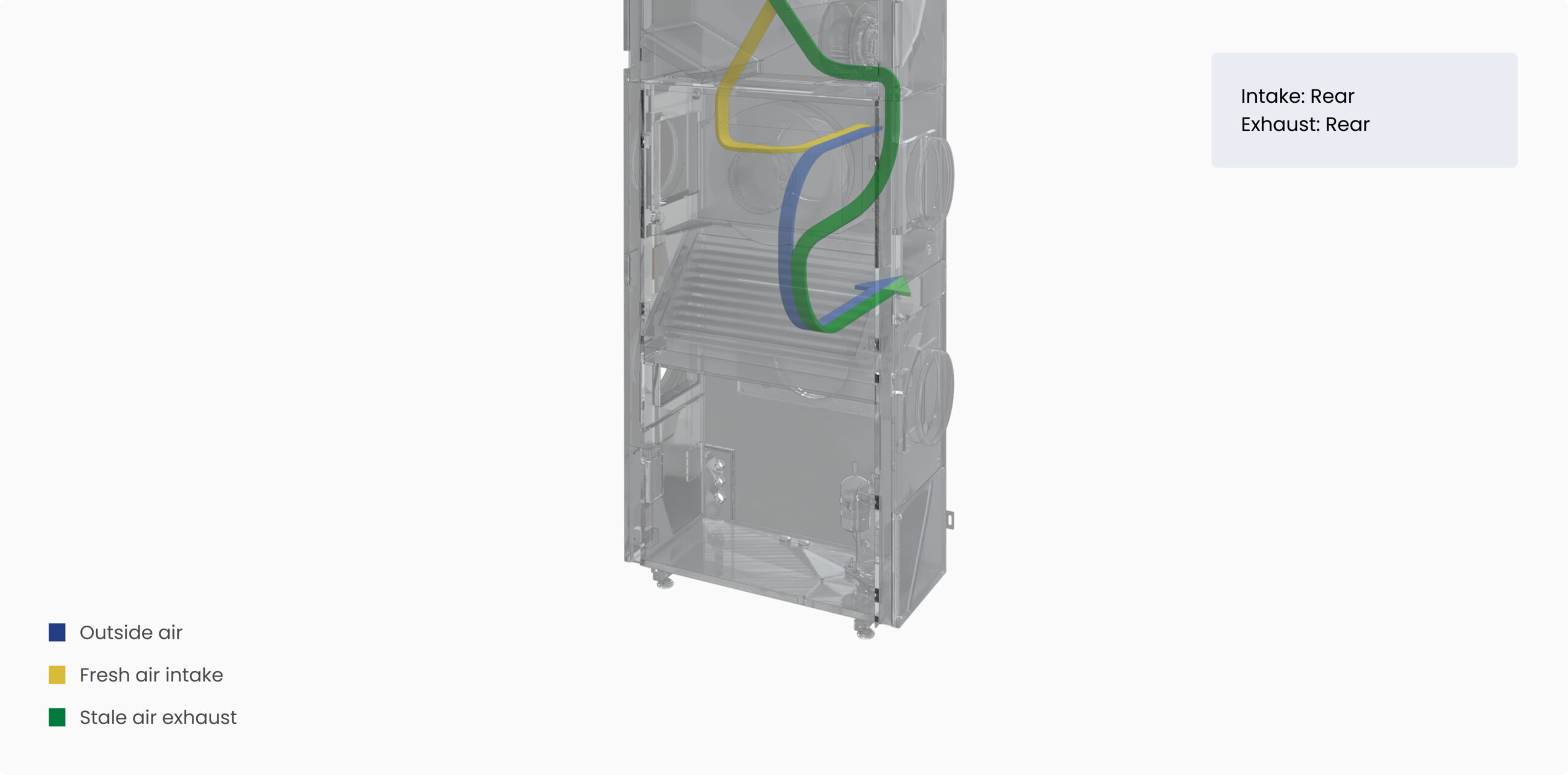

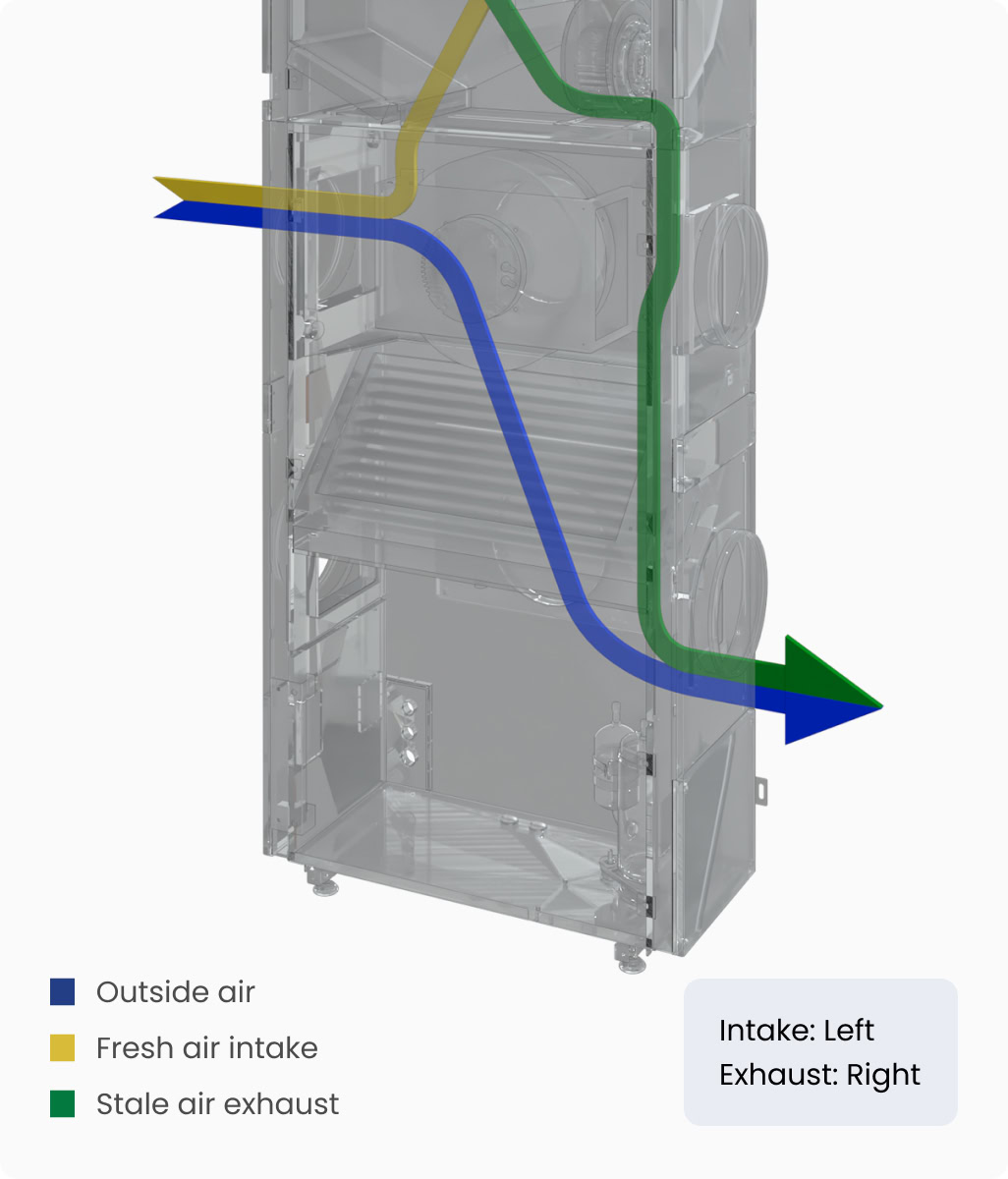

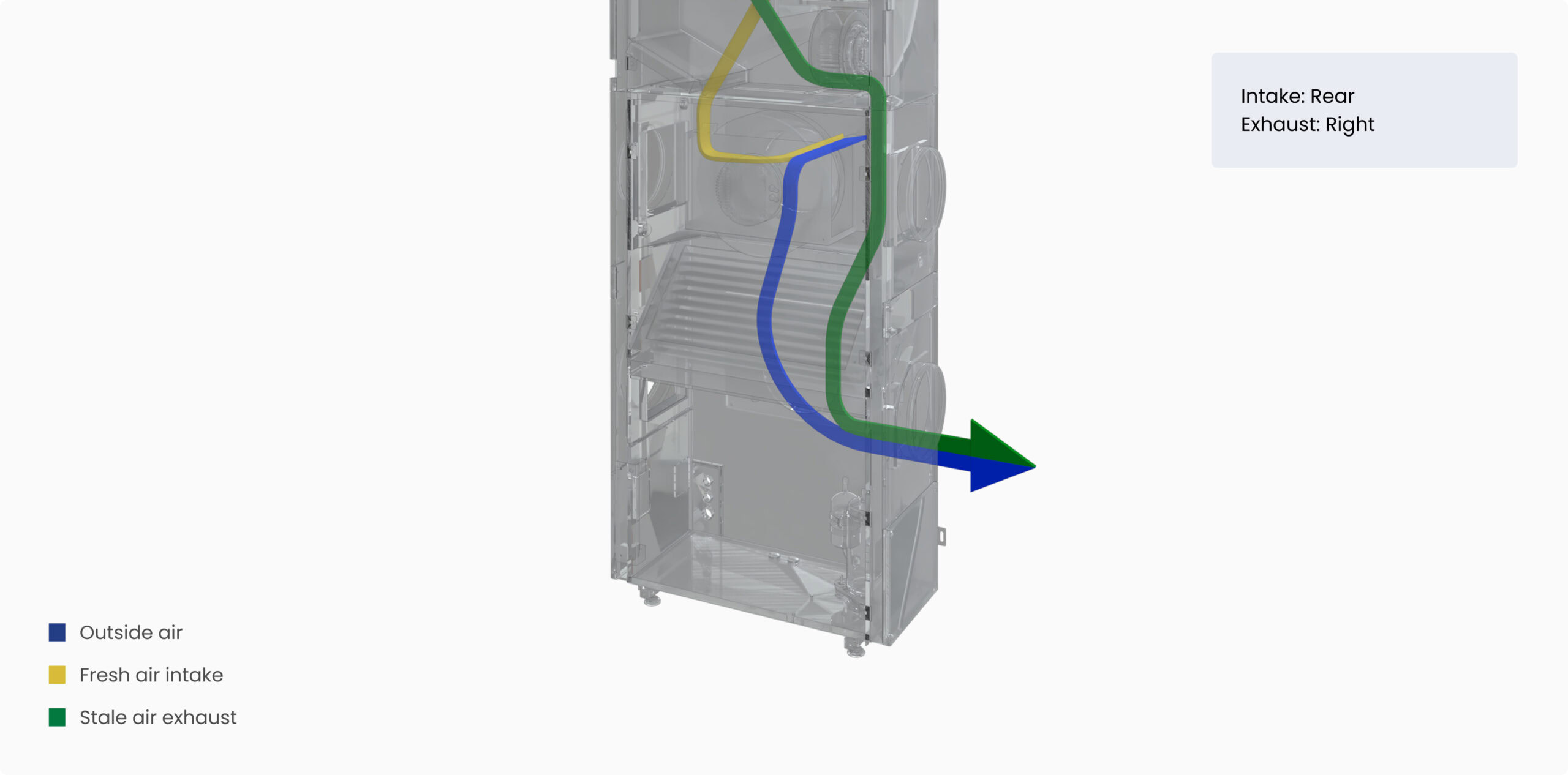

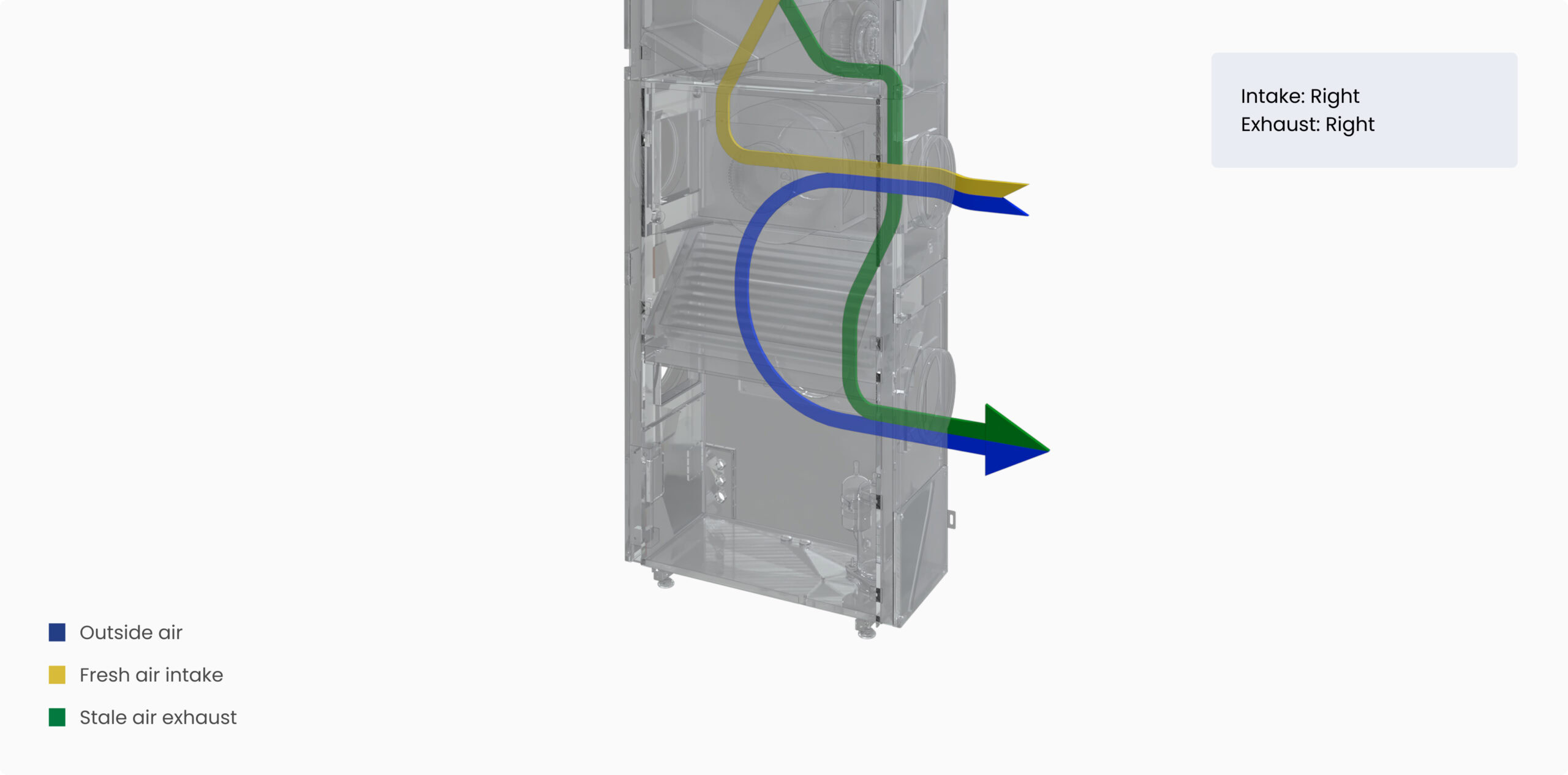

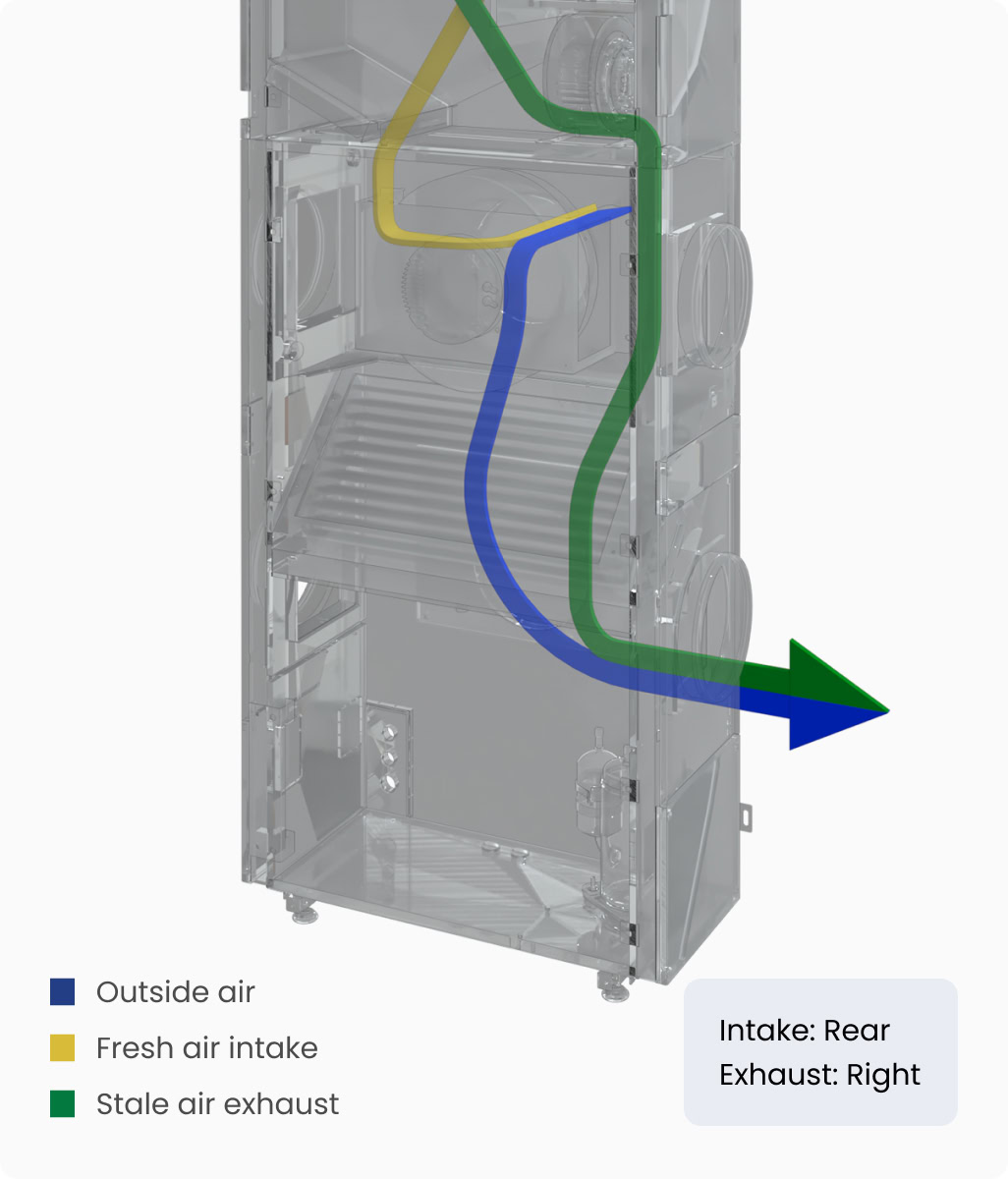

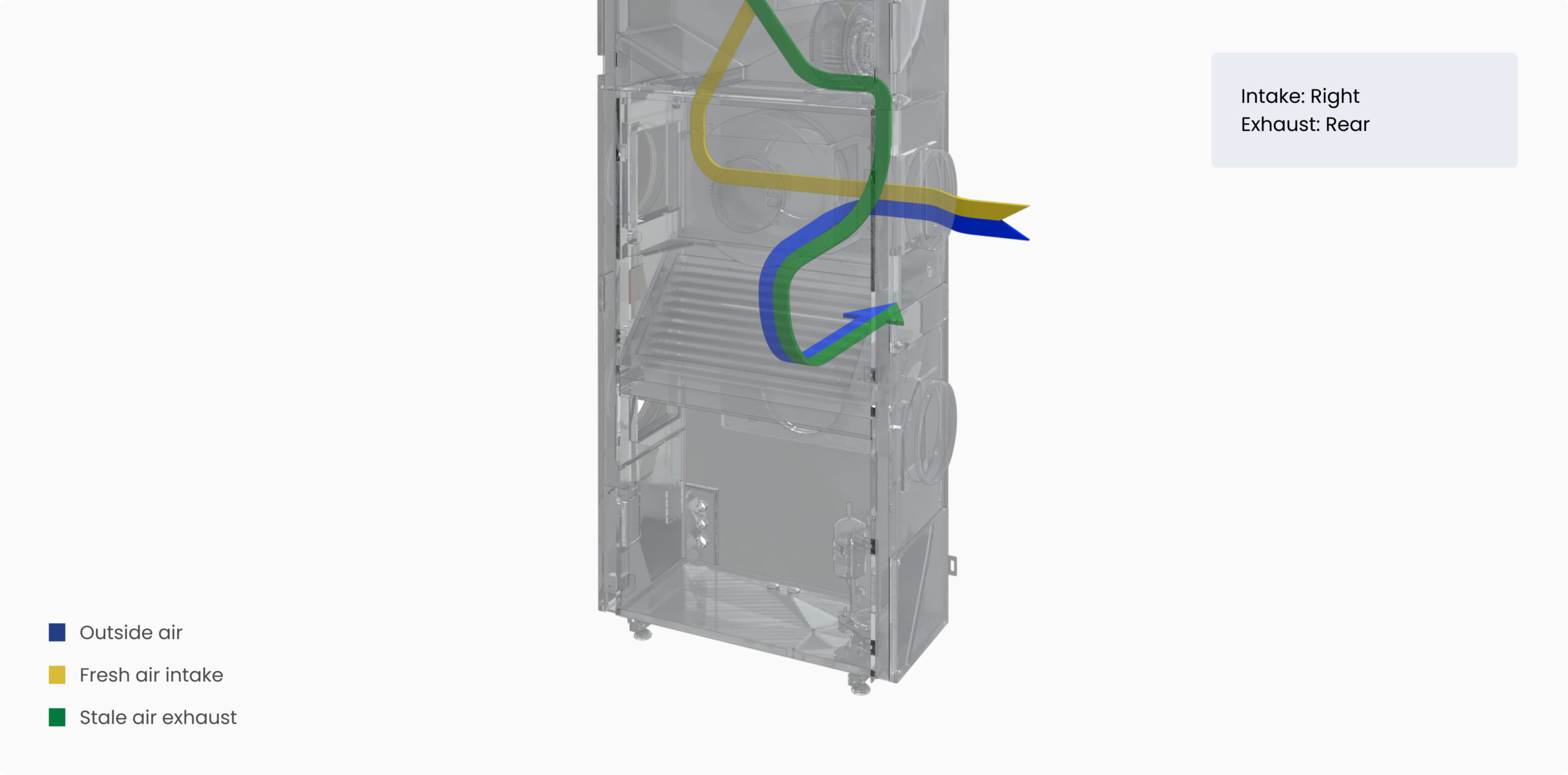

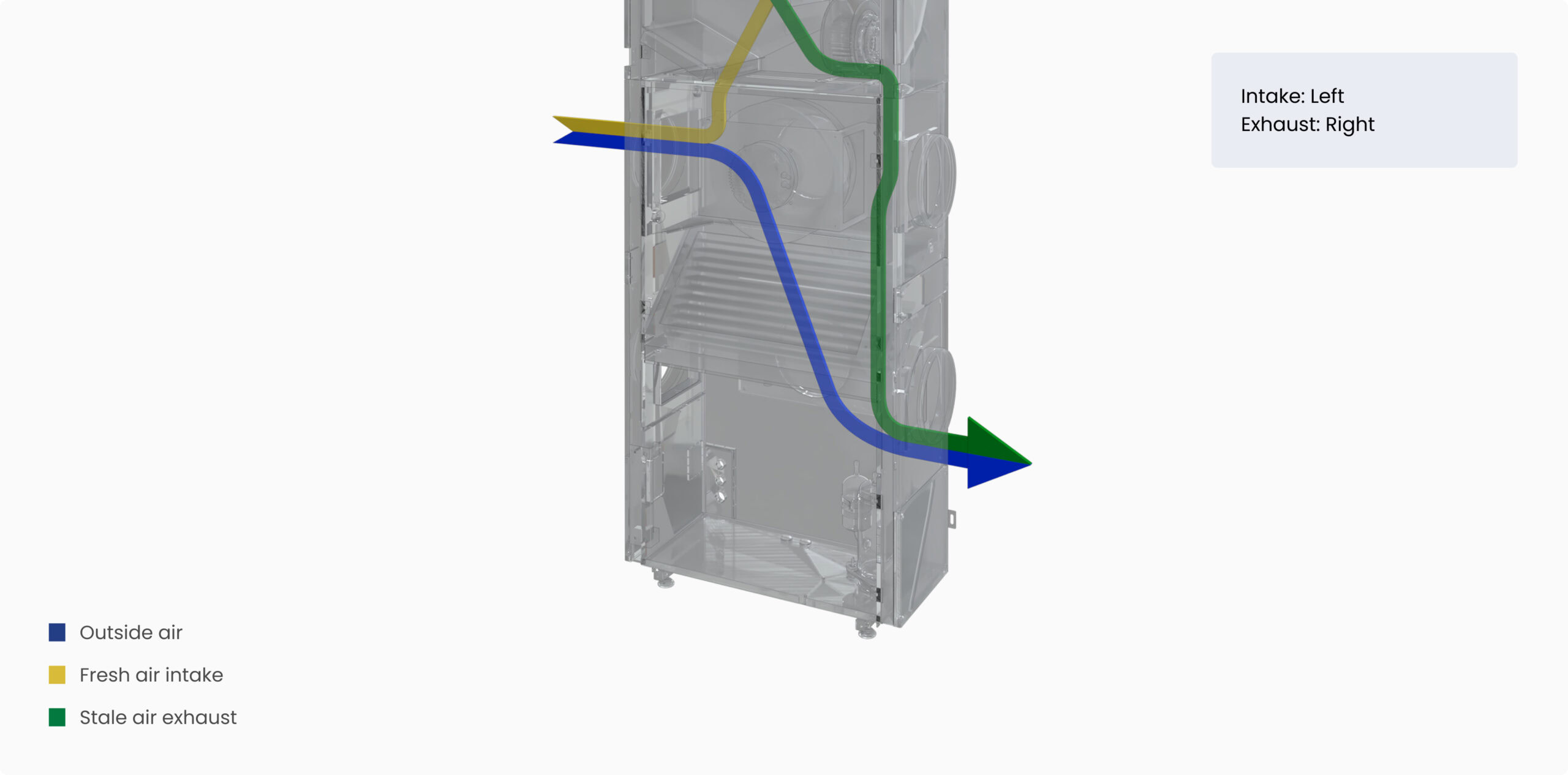

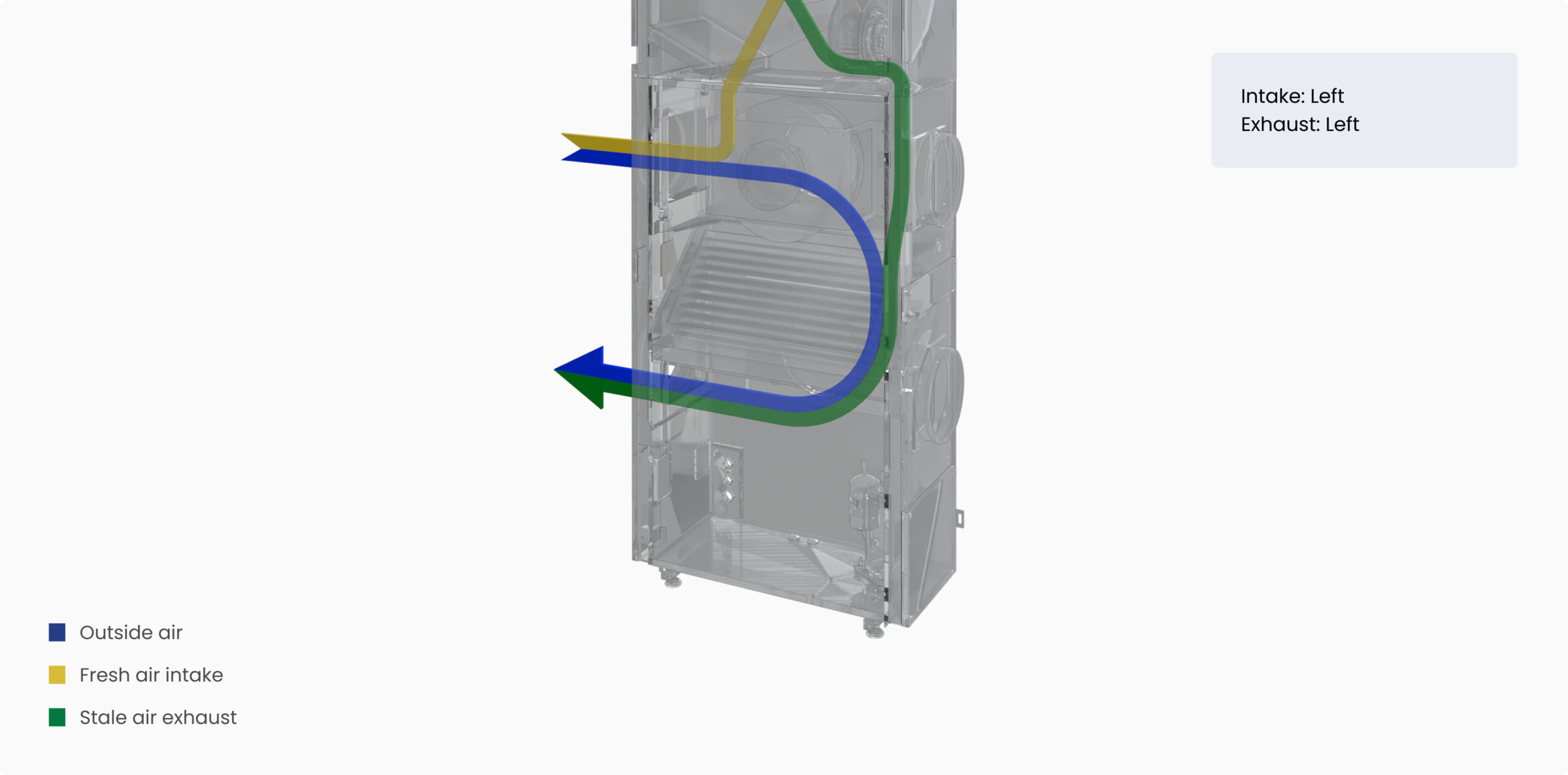

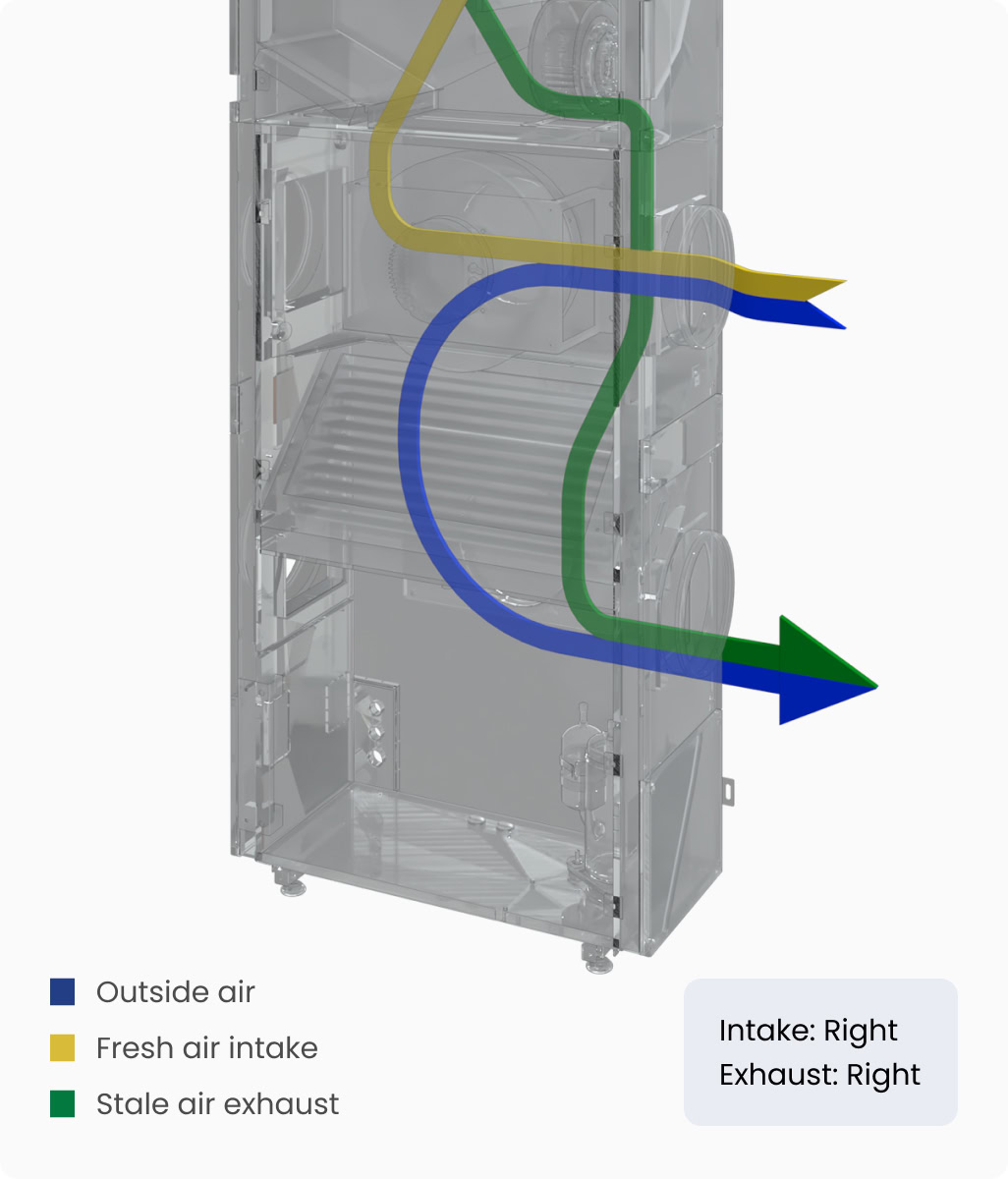

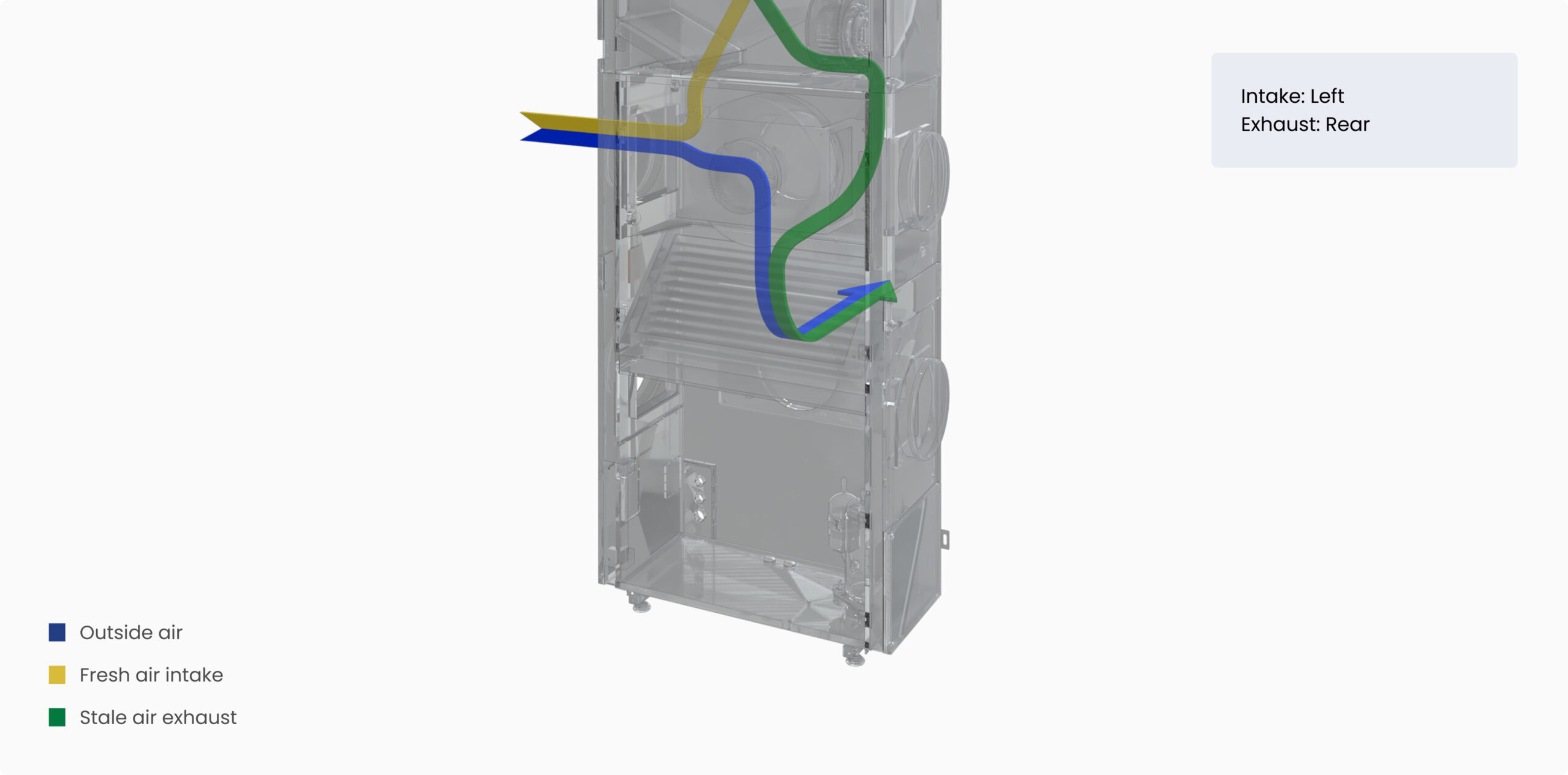

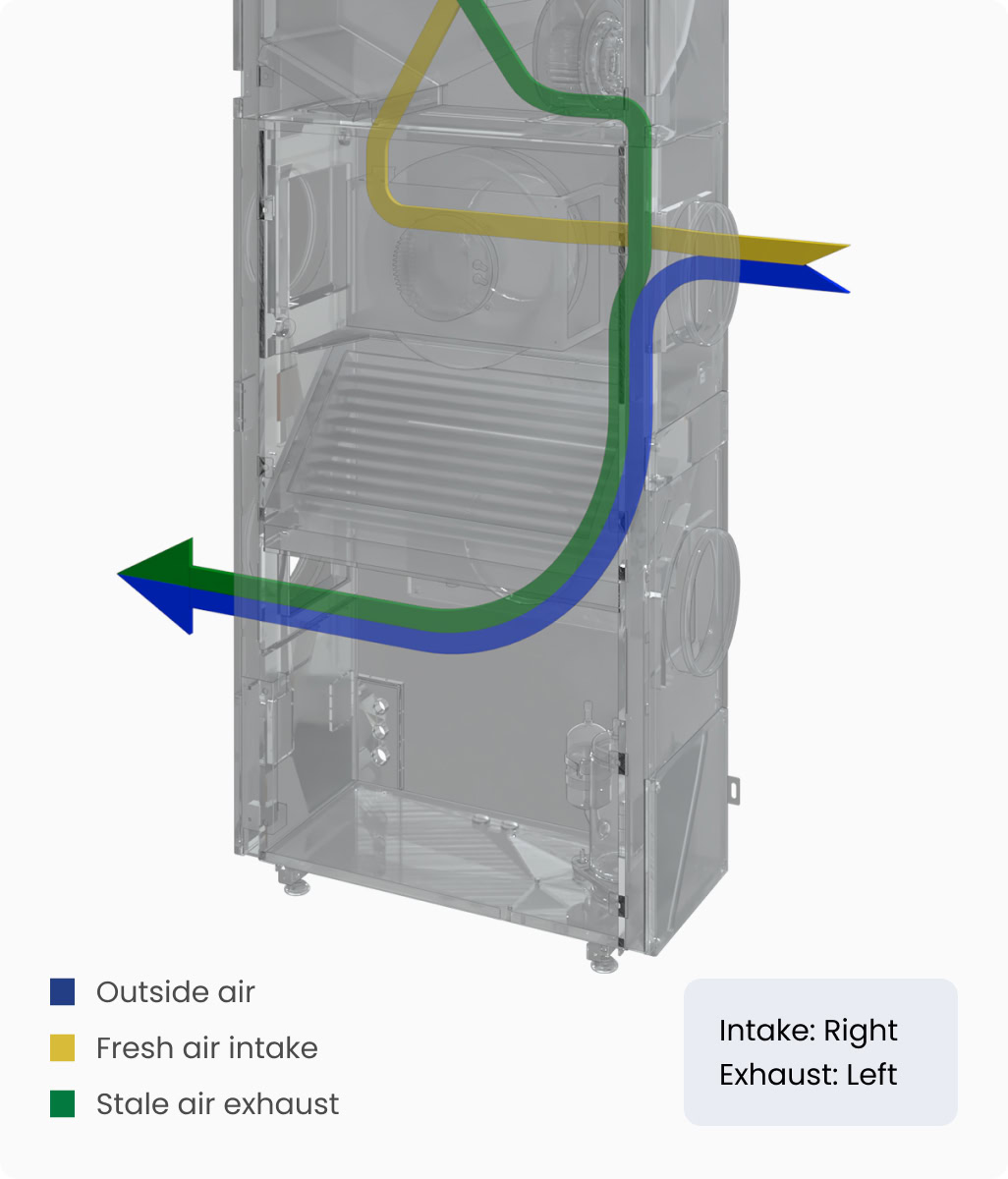

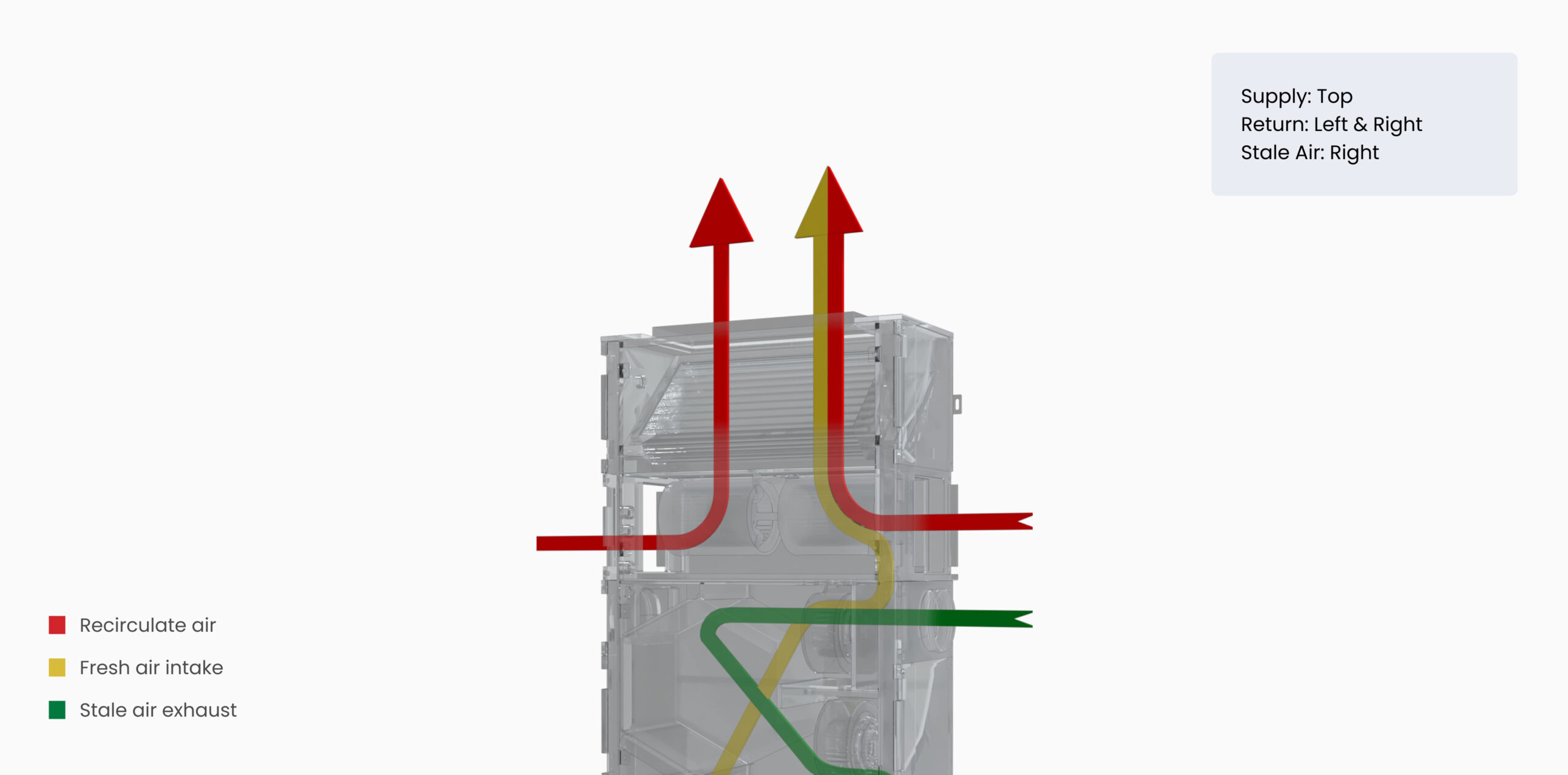

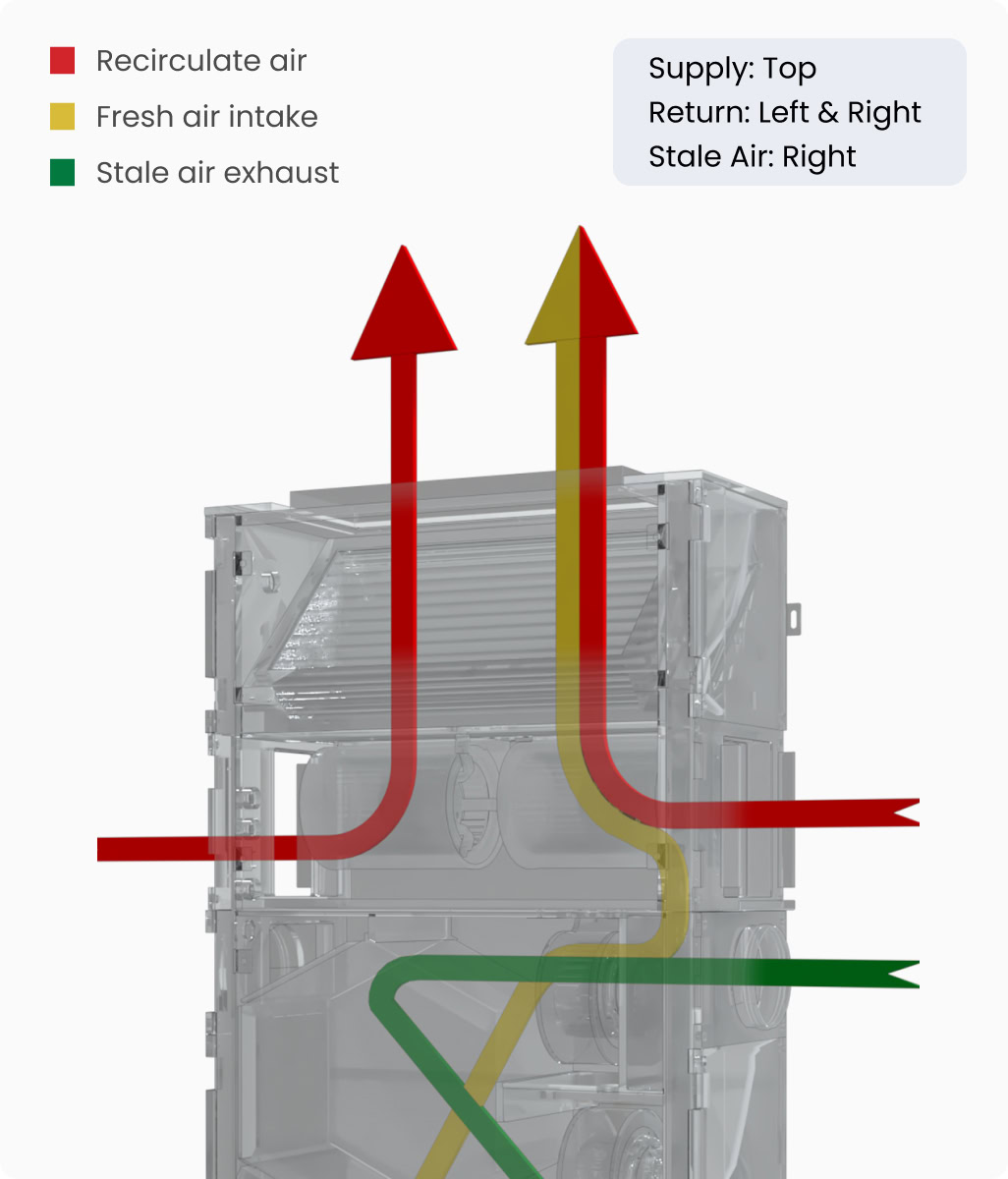

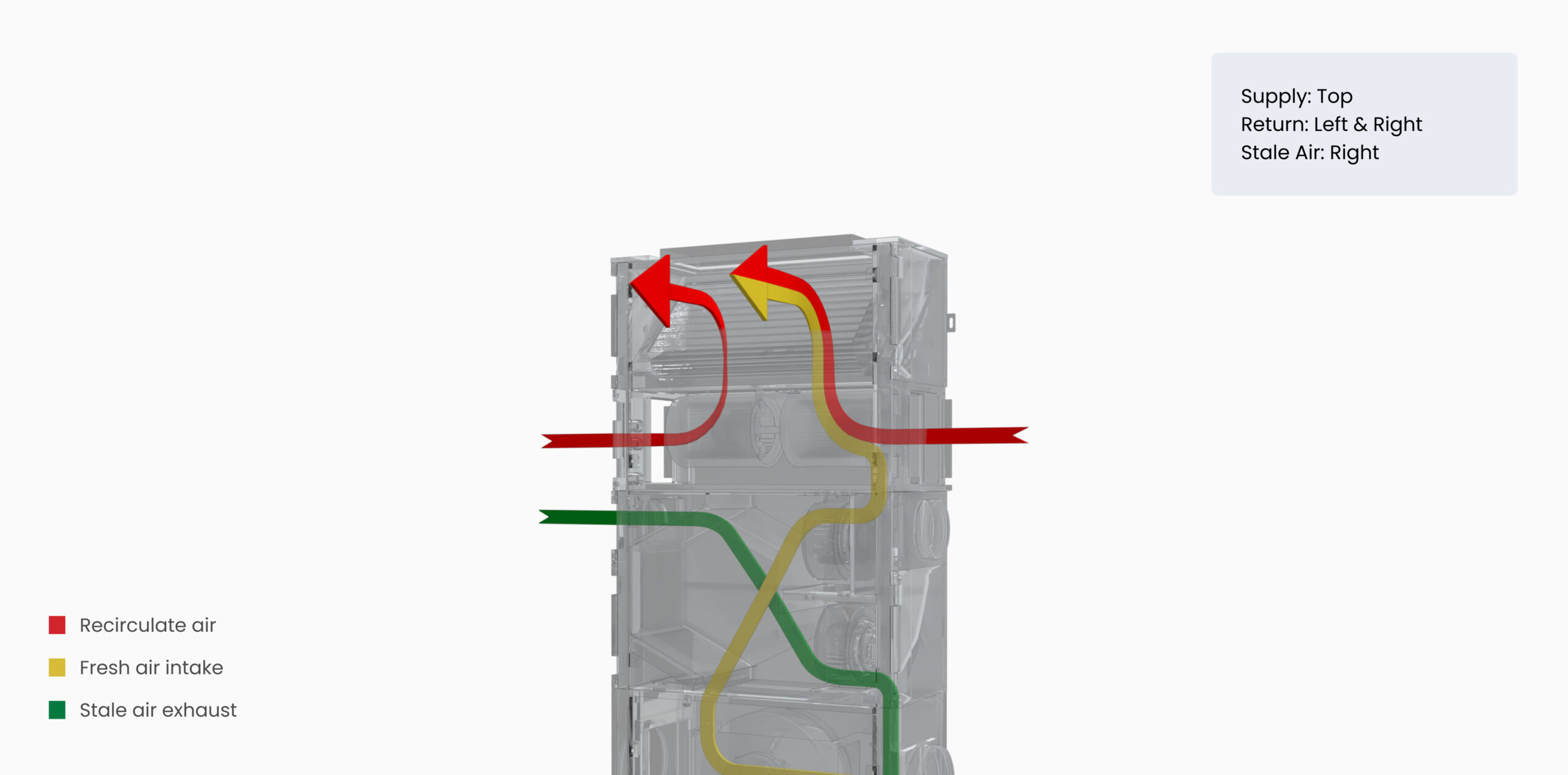

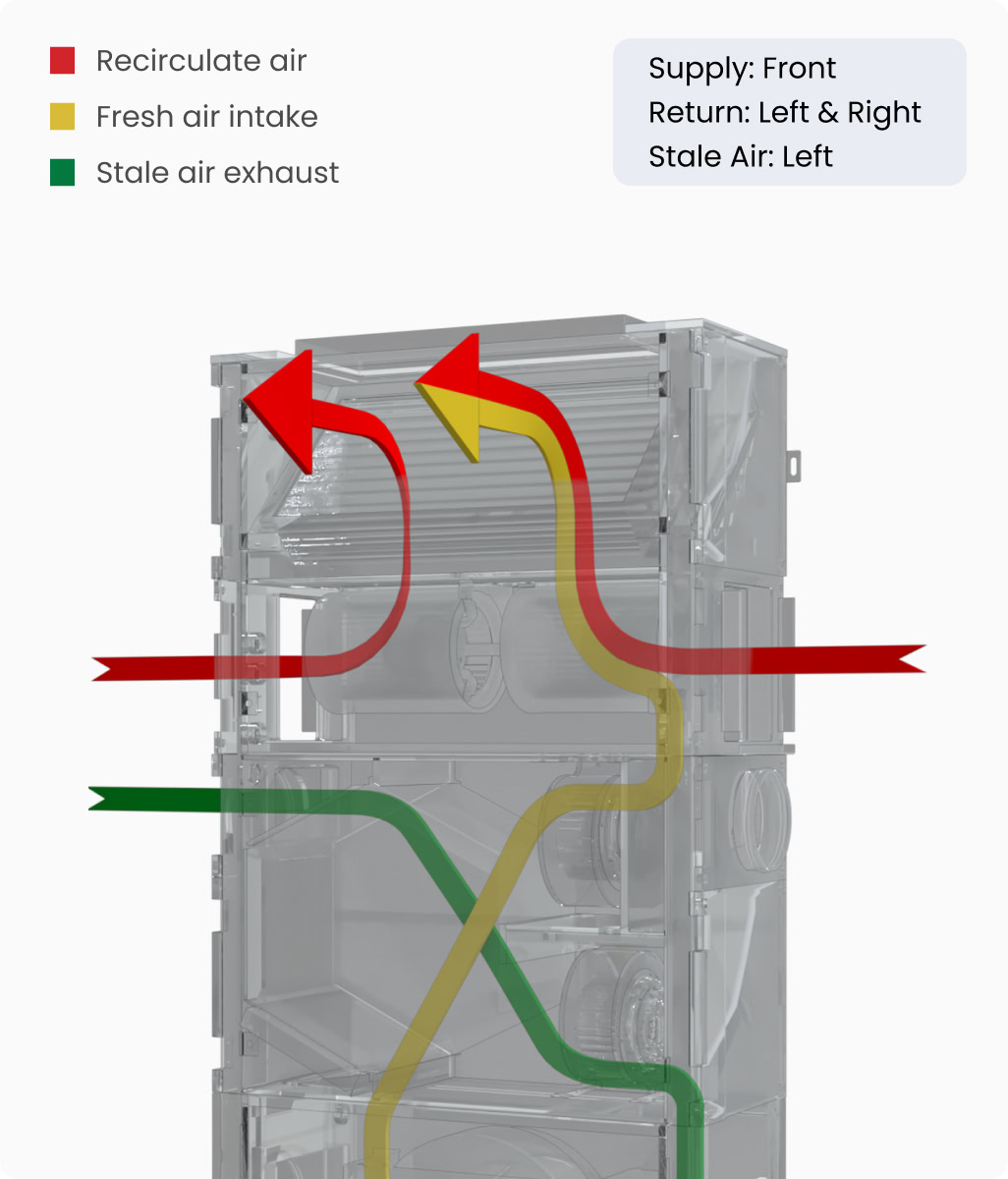

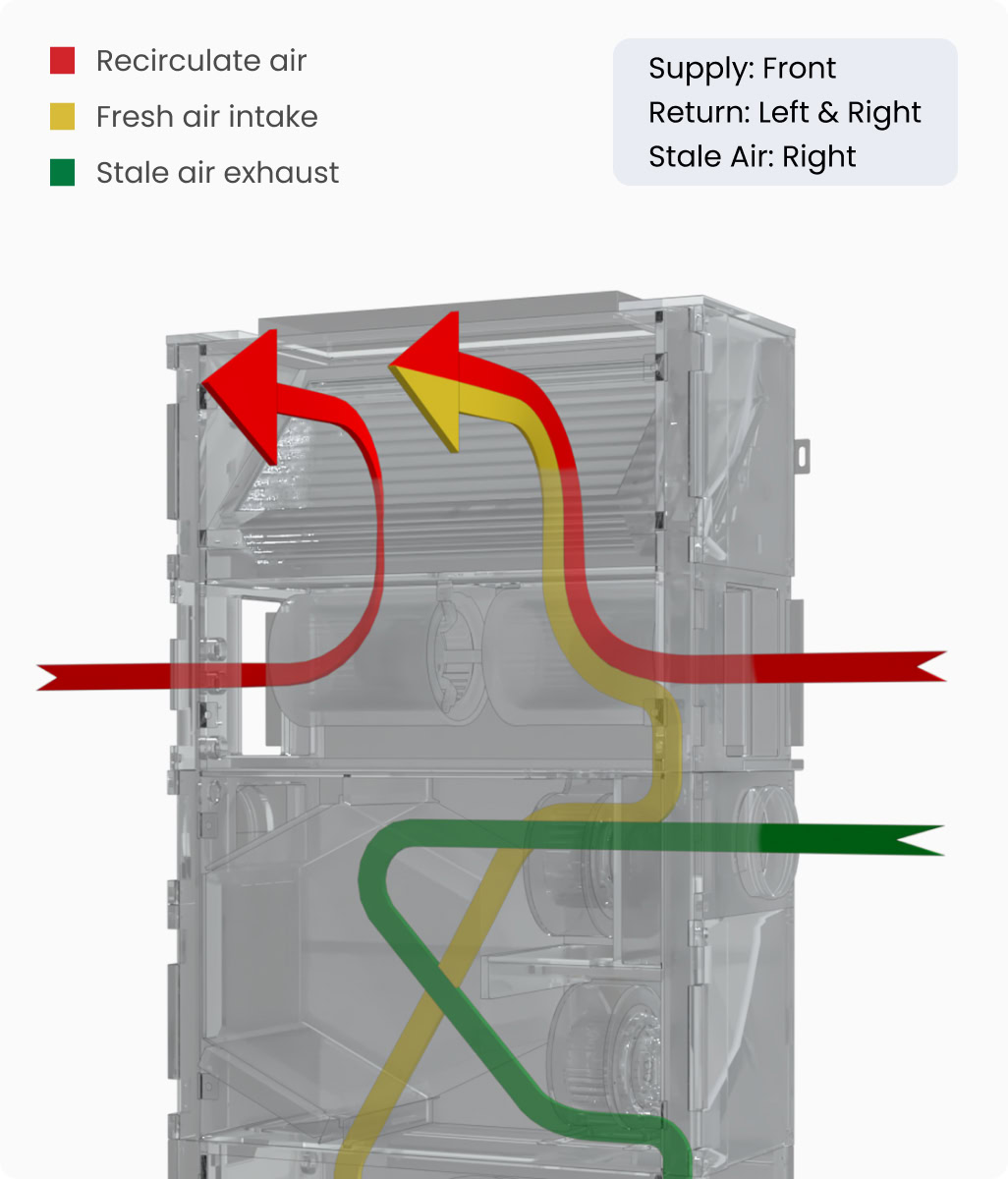

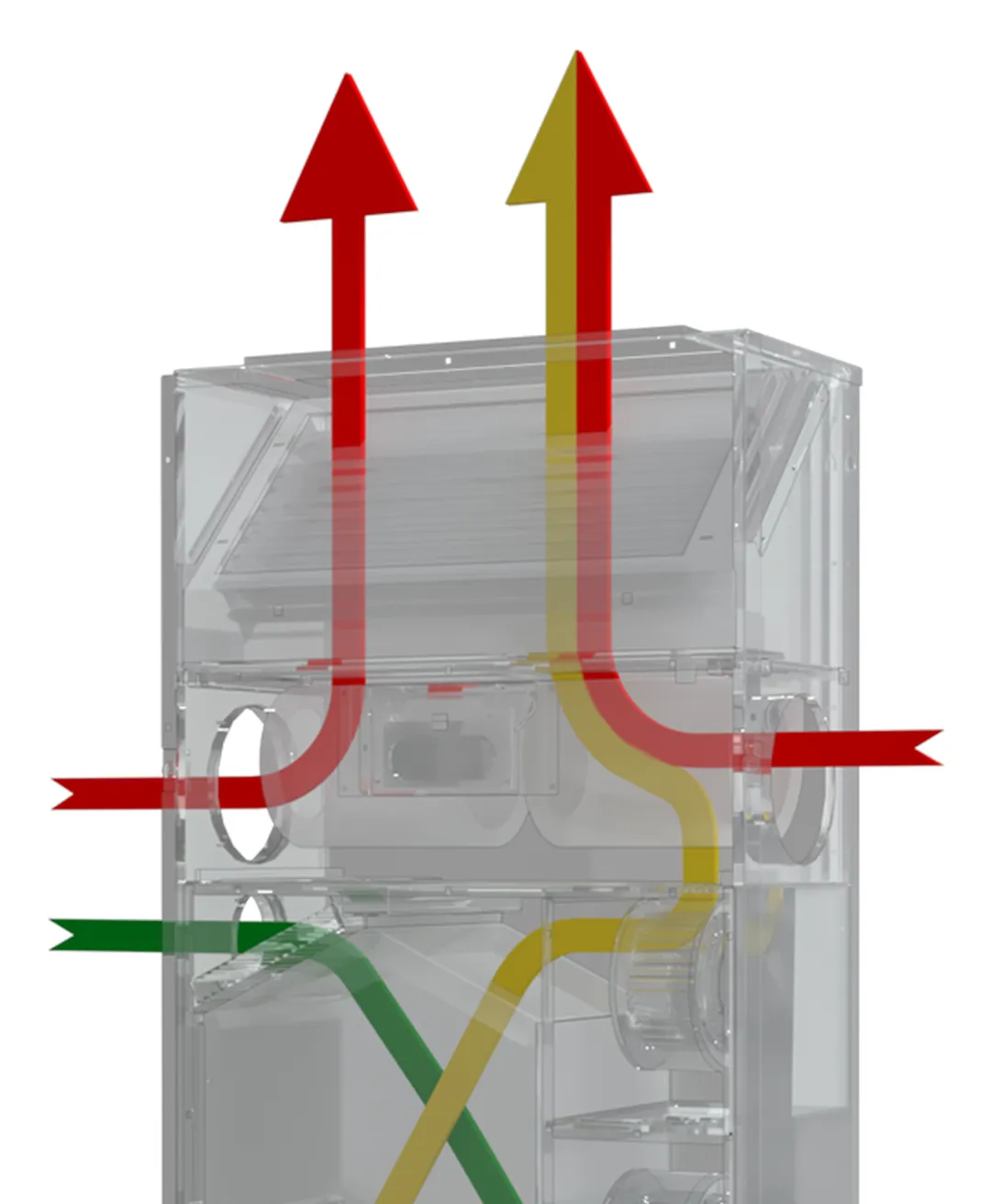

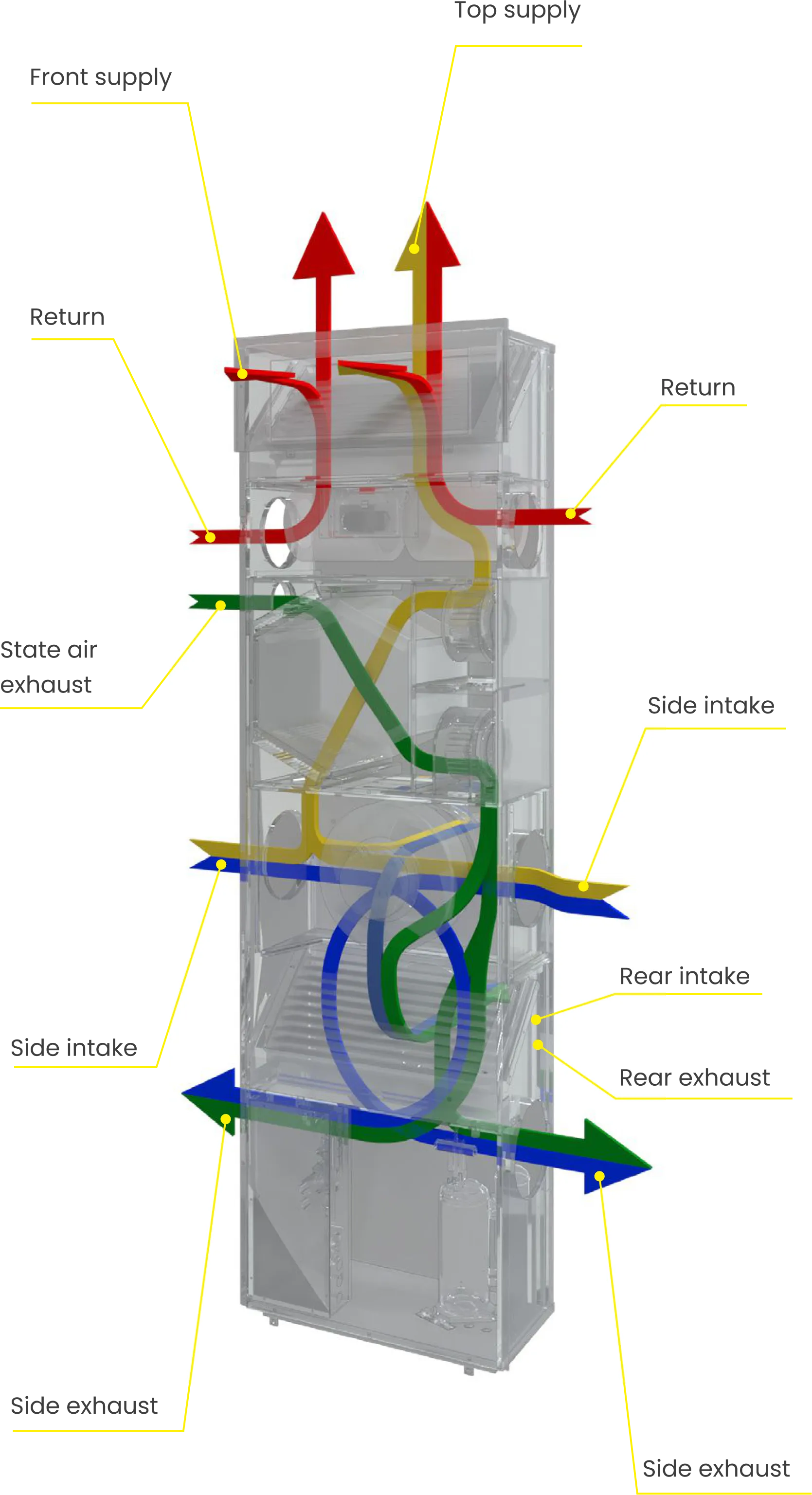

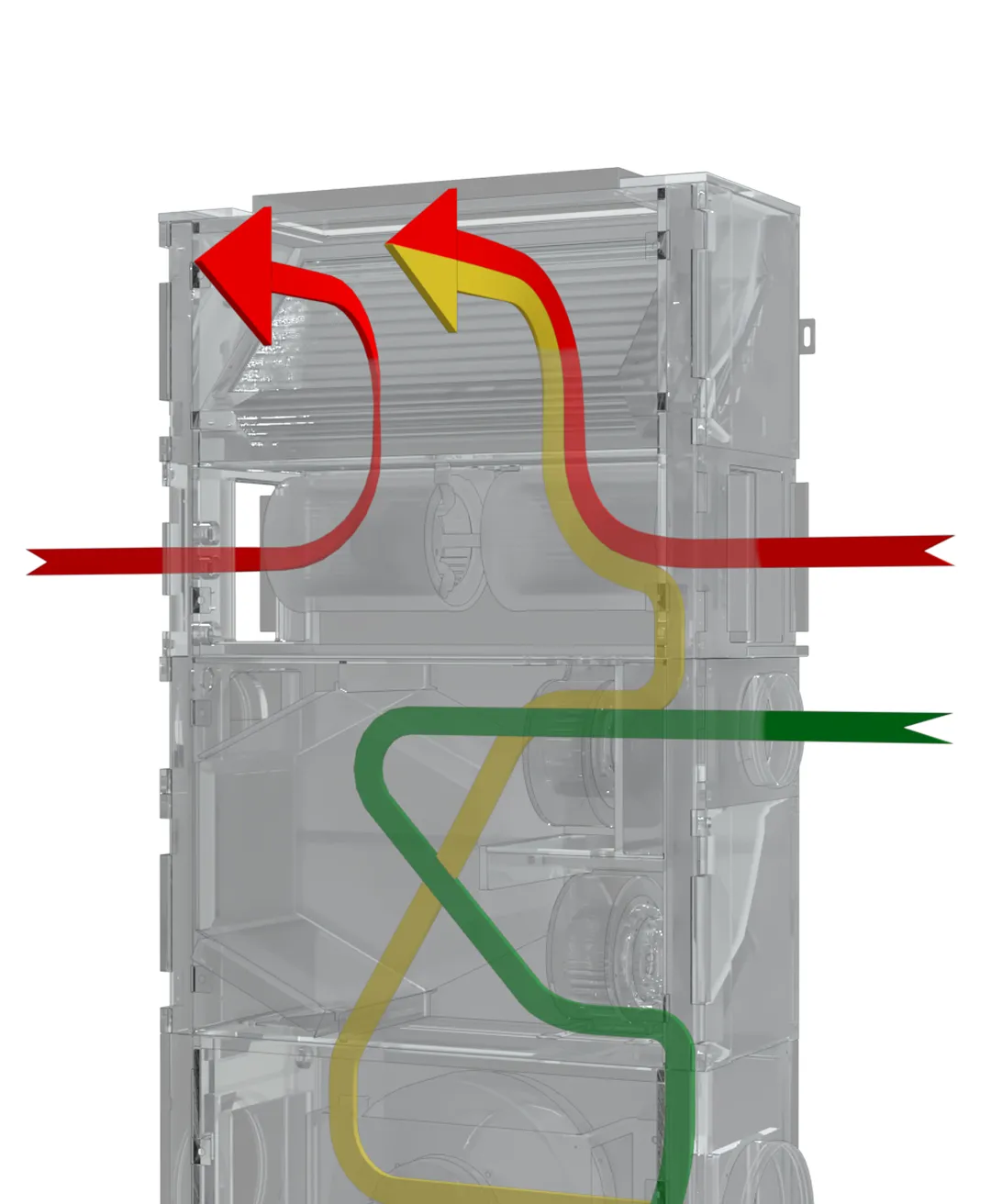

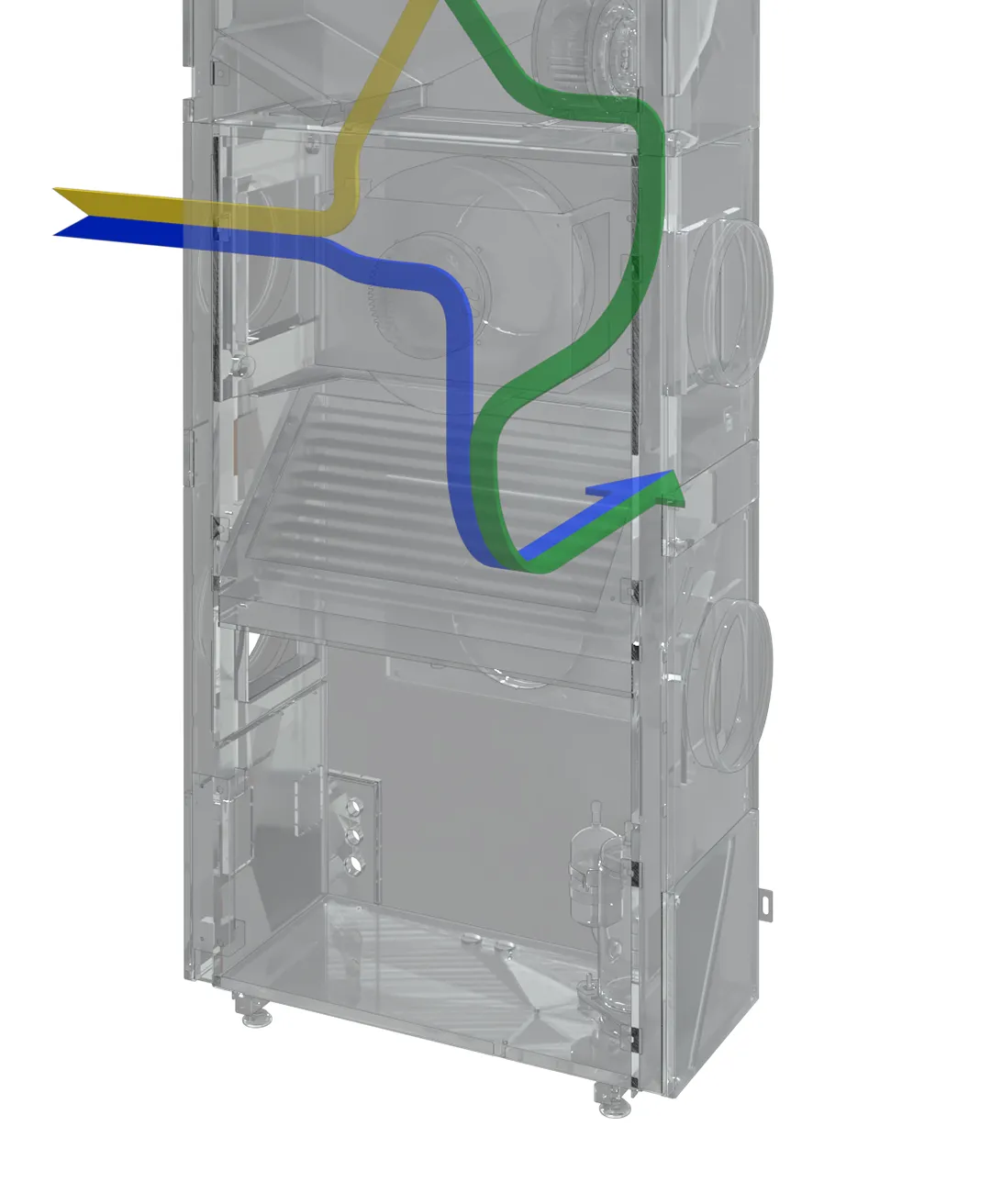

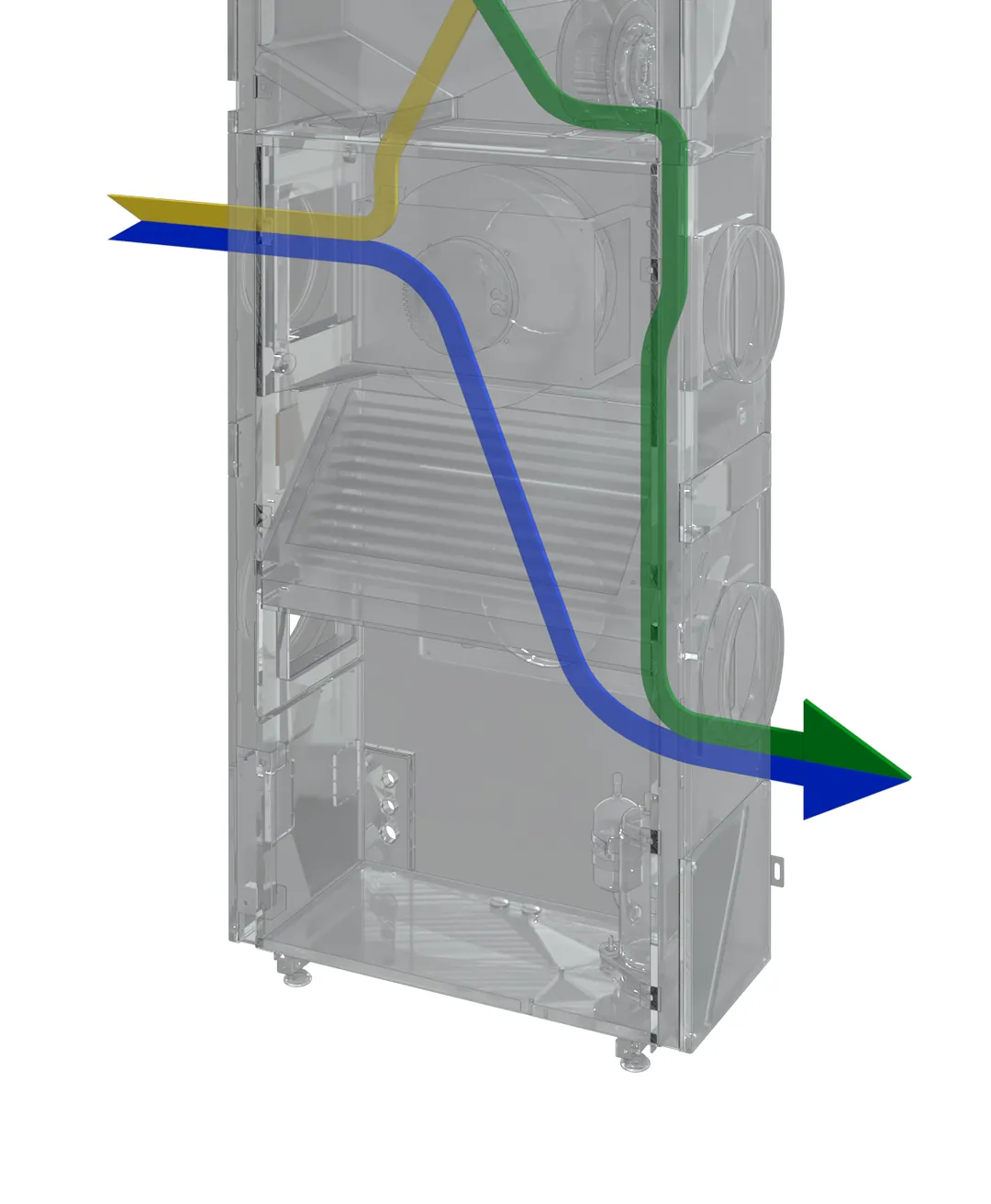

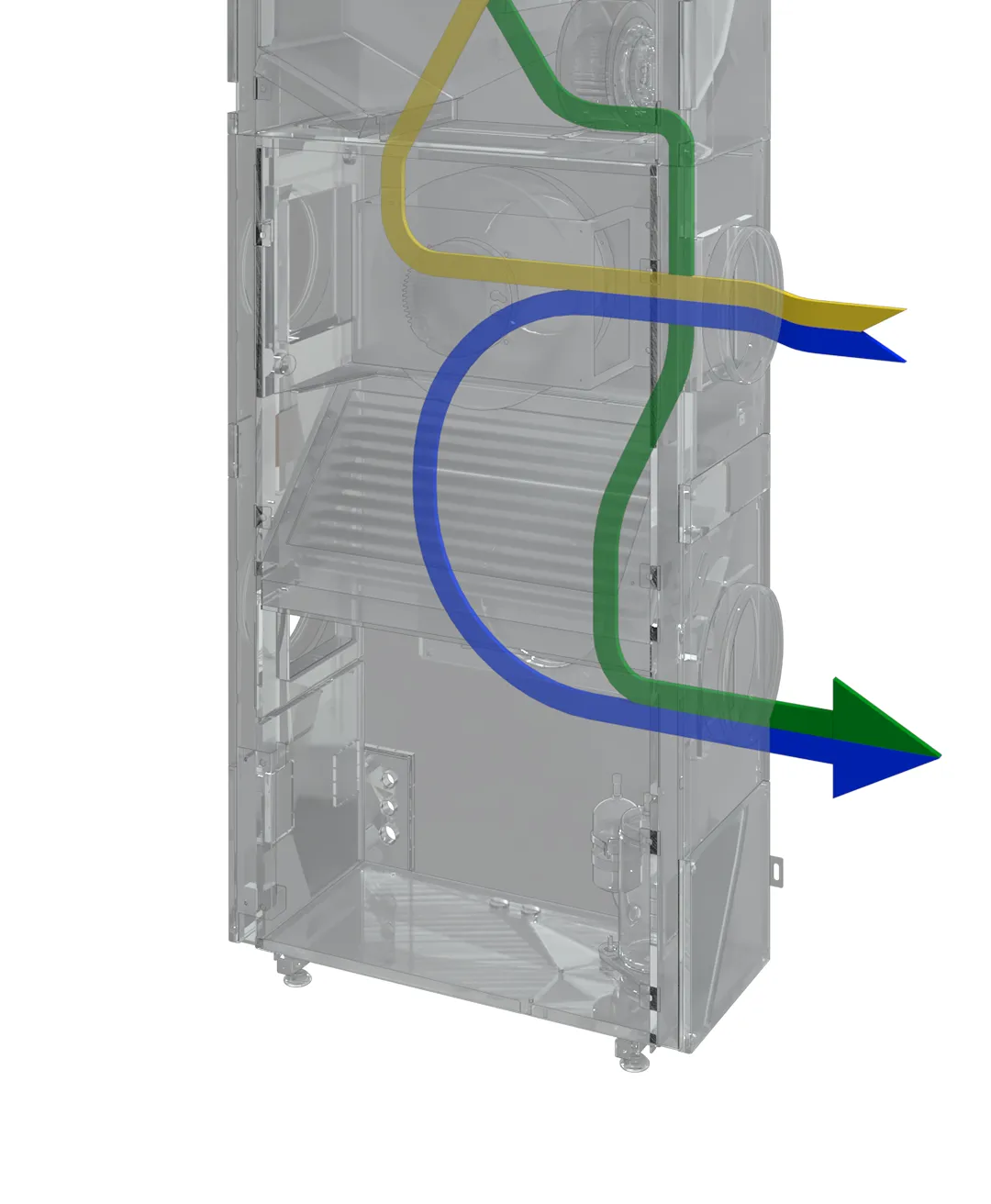

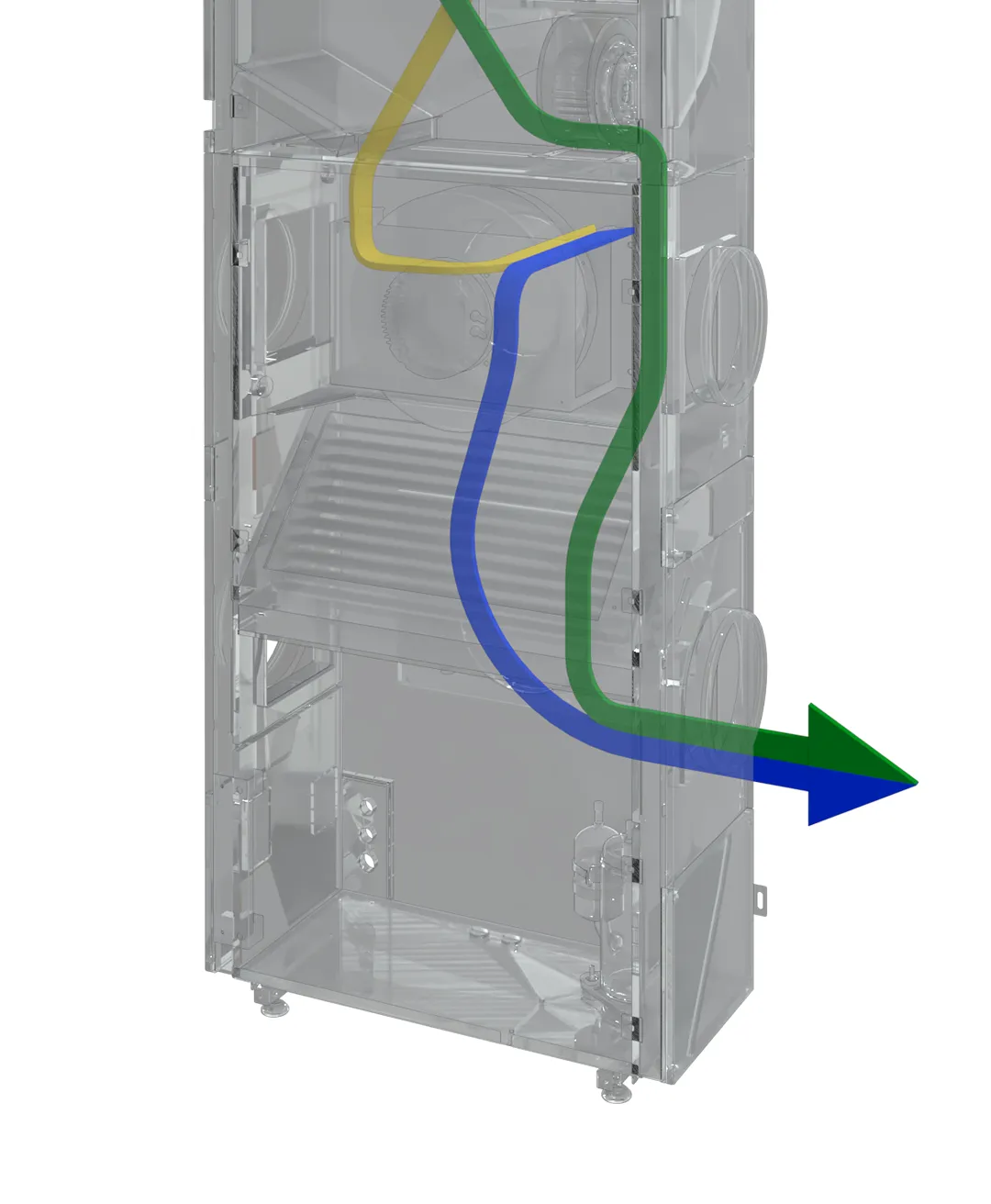

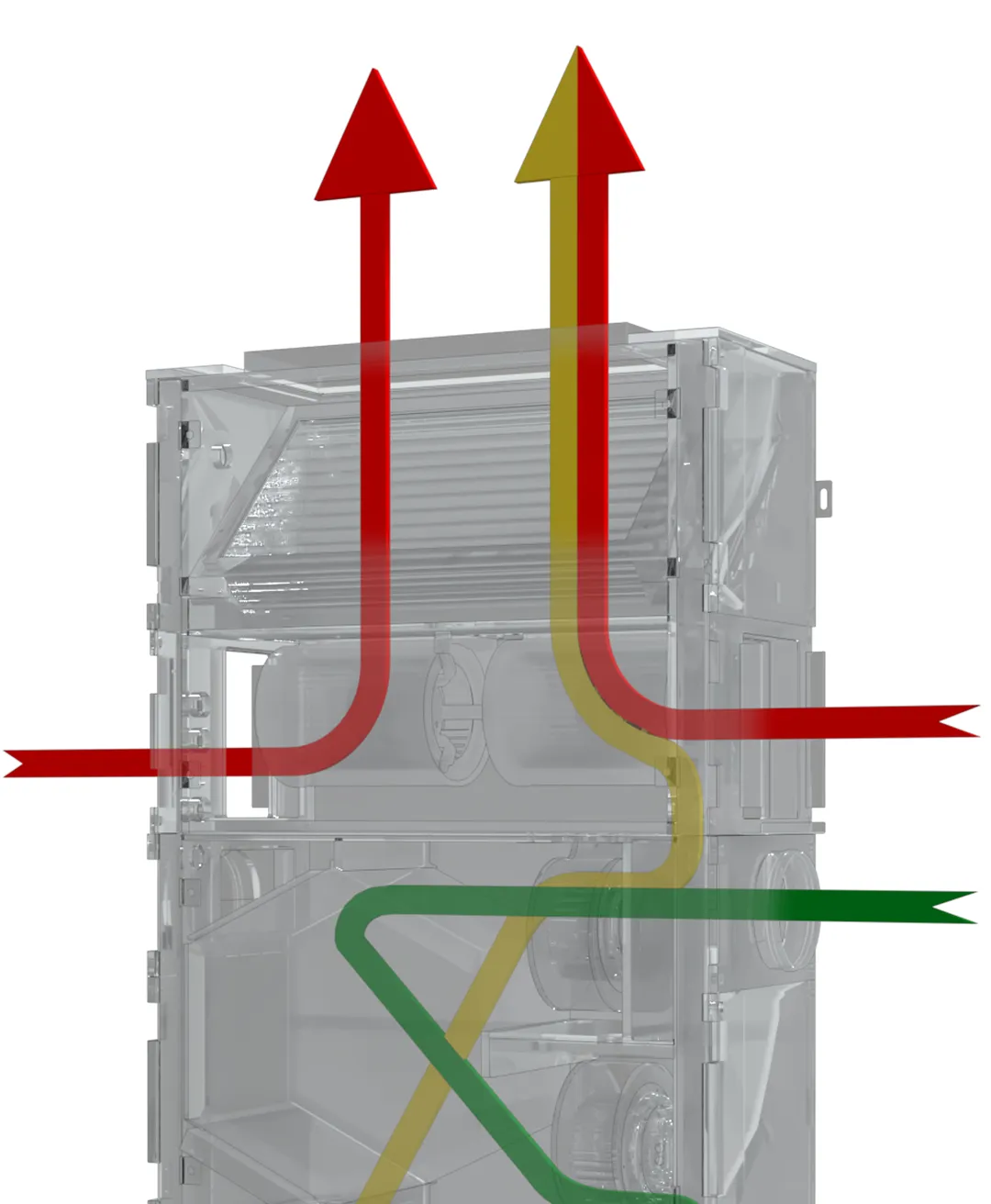

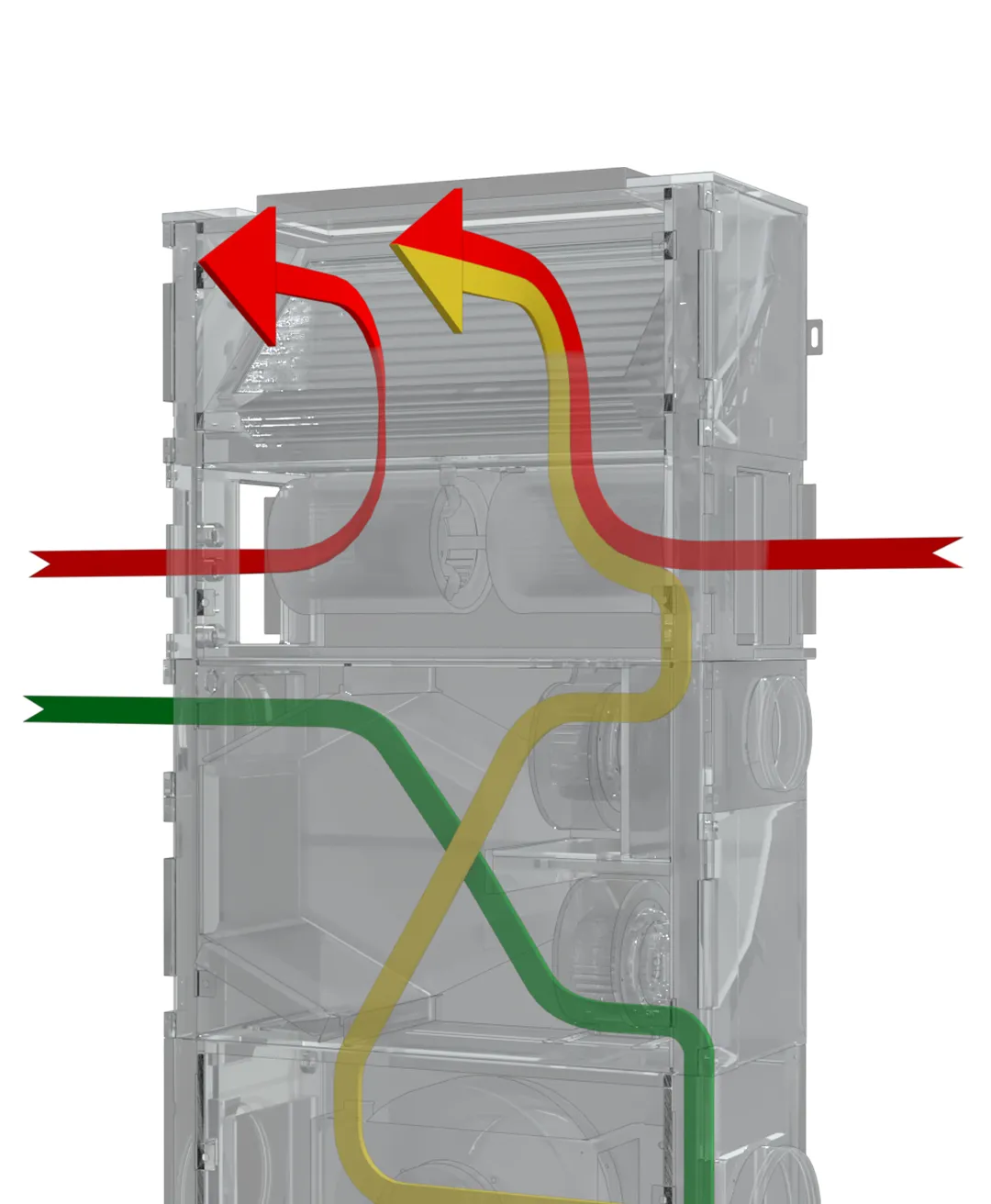

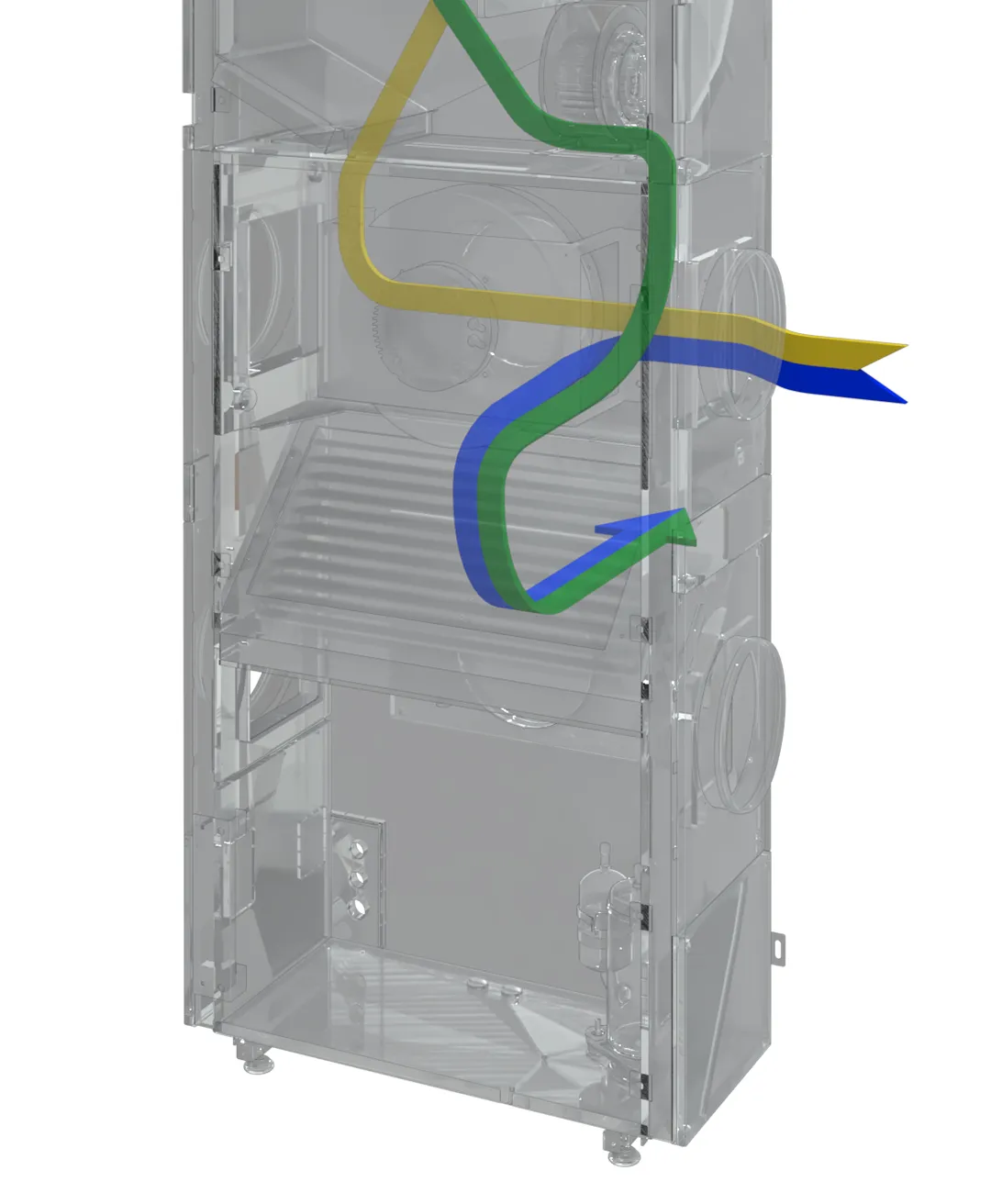

Airflow
AIO Vertical Stack is extraordinarily flexible in the many ways it can be fully ducted or used with minimal or no ducting. This flexibility enables Vertical Stack to be placed anywhere in a dwelling with no restrictions.
Stale air exhaust
The five-inch round stale air exhaust connection can be used as part of a plenum return without any ducting or can be ducted to a bathroom or multiple locations with up to 0.5” WC external static pressure. If configuring AIO Ceiling Ducted with a bottom return, the stale air can also be pulled from the bottom return.

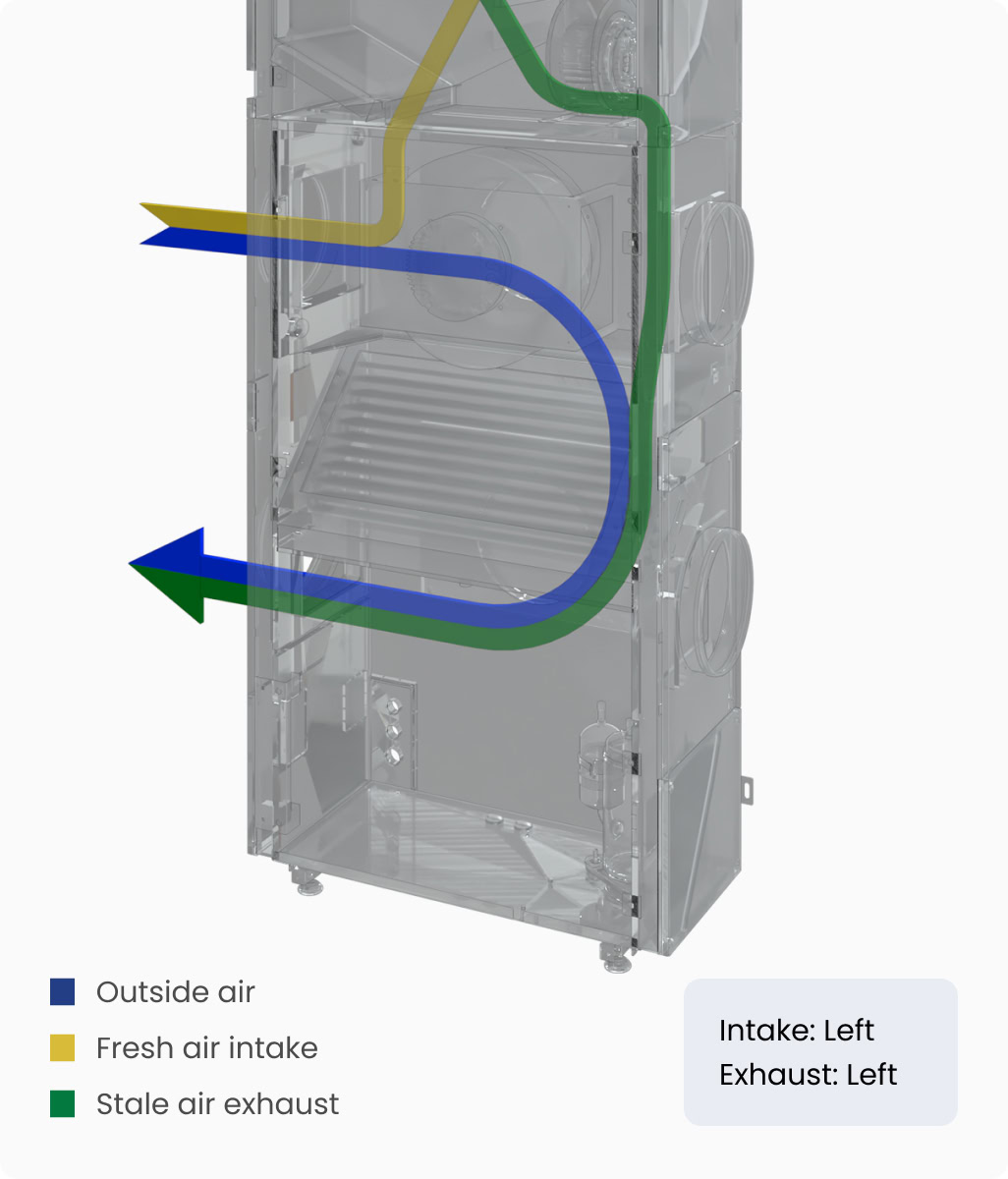

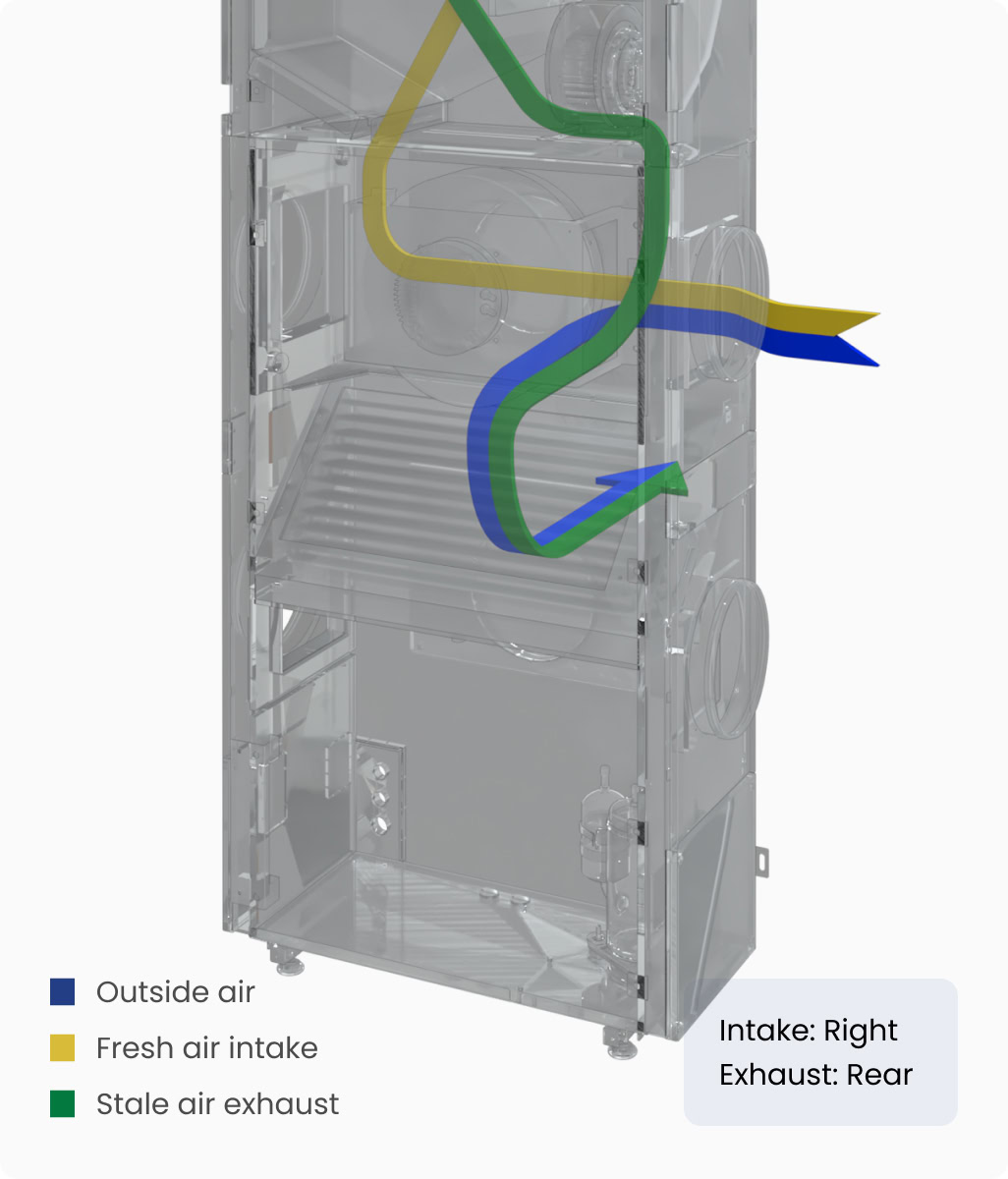

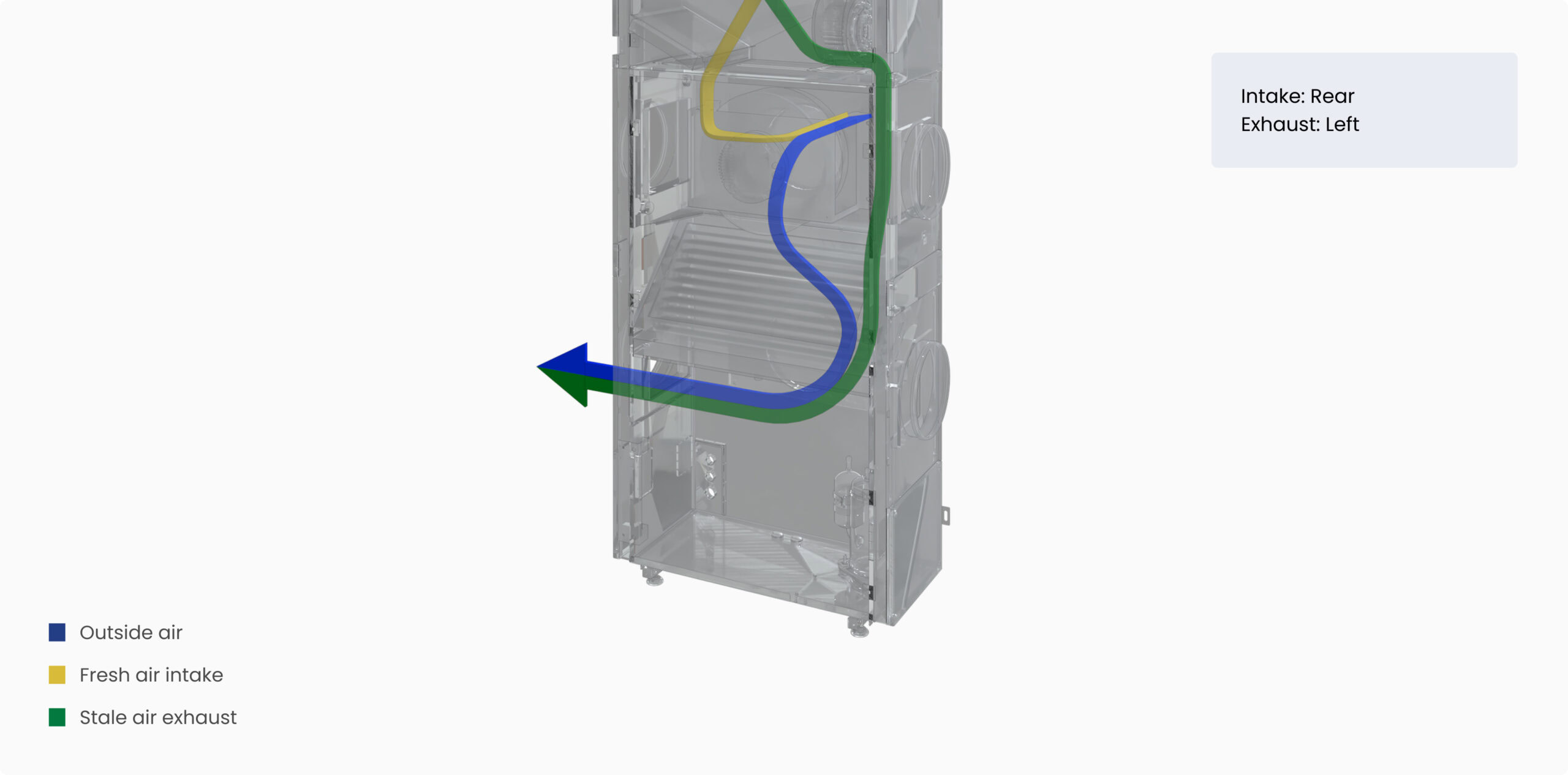

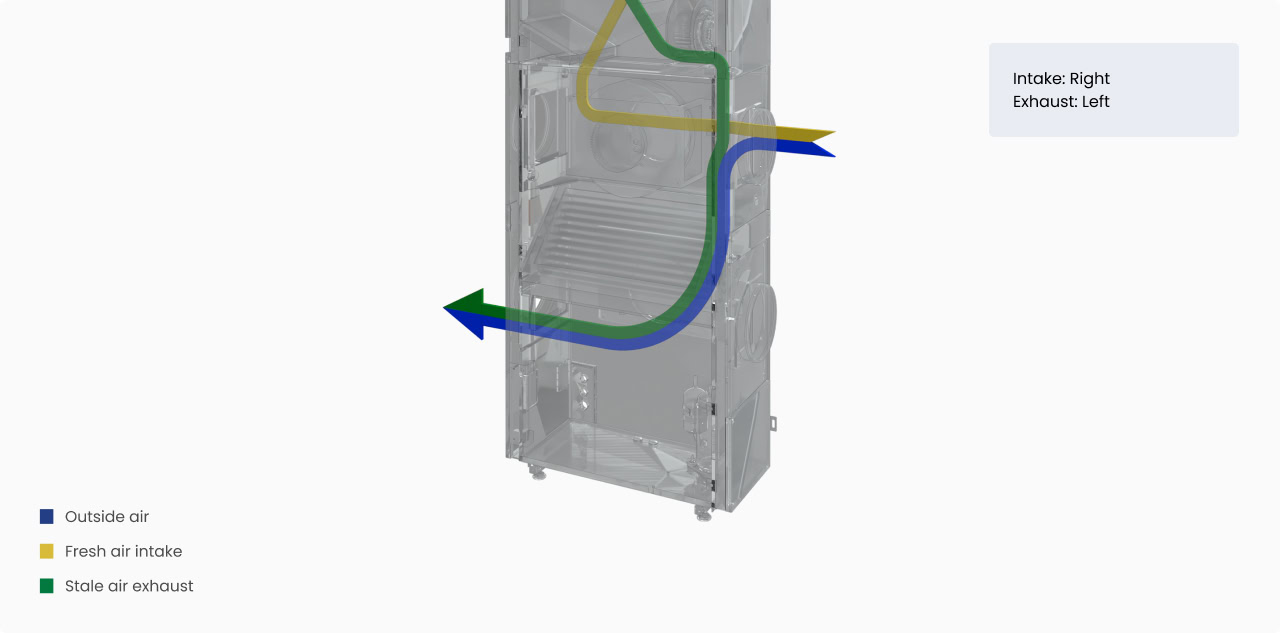

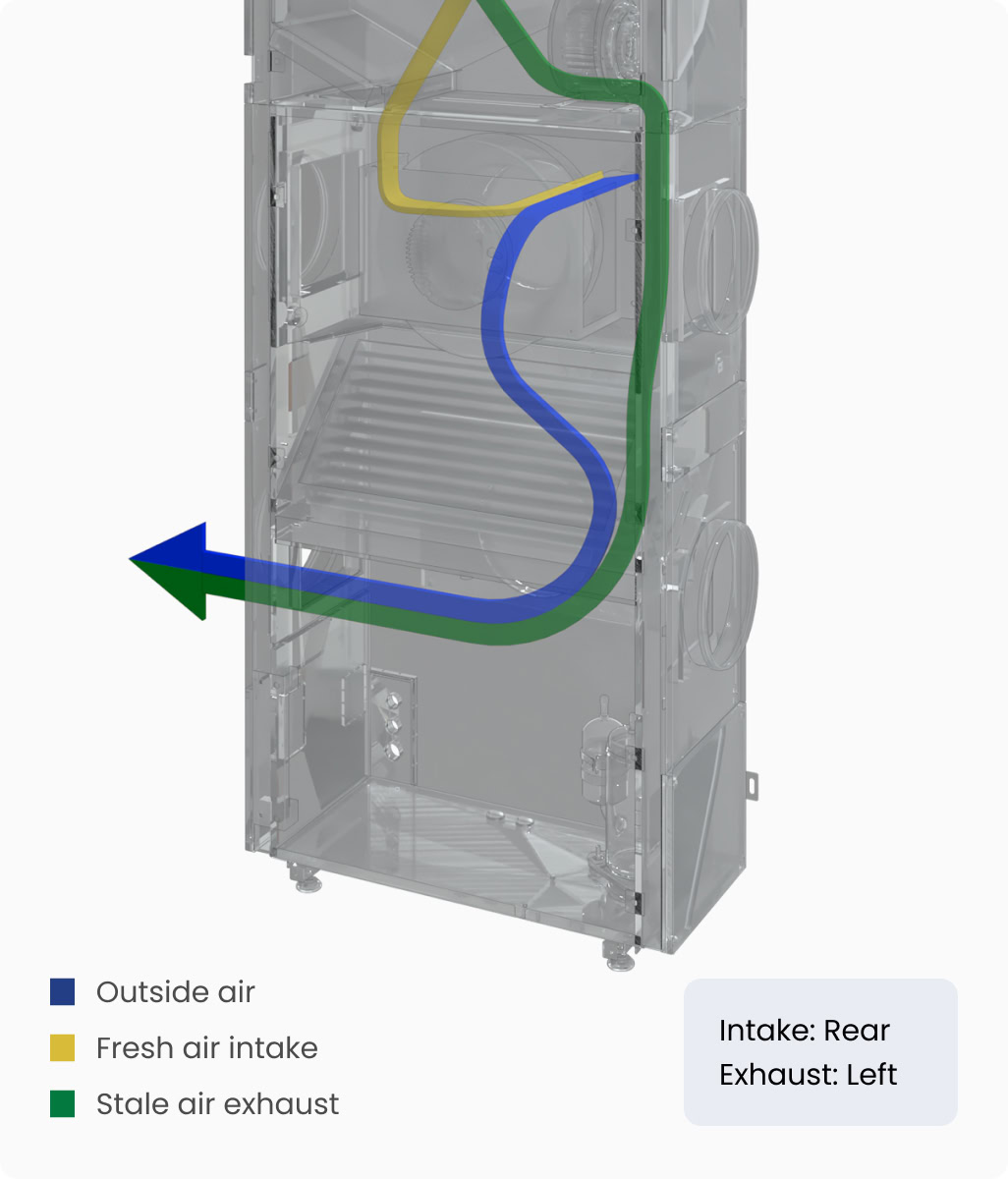

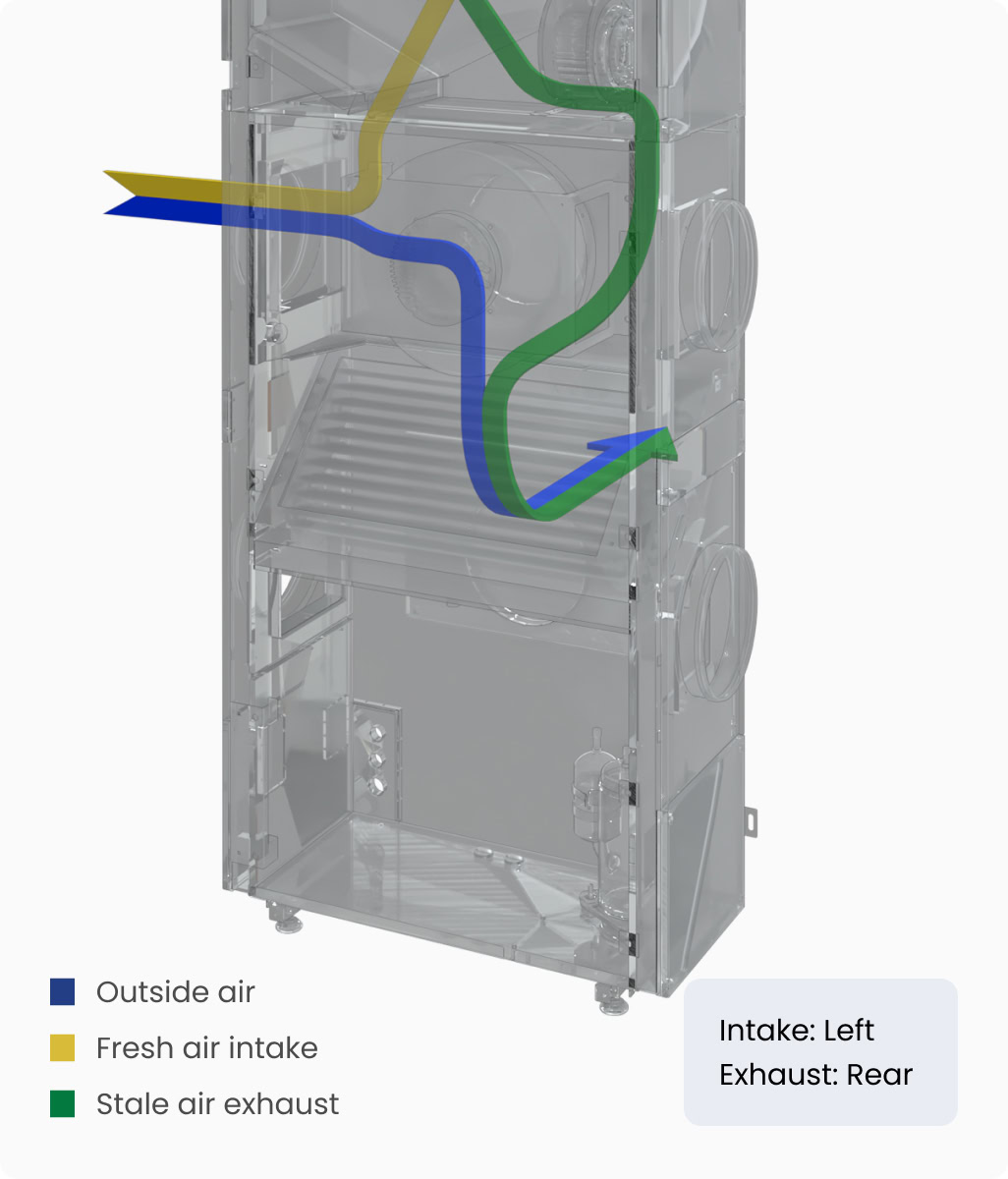

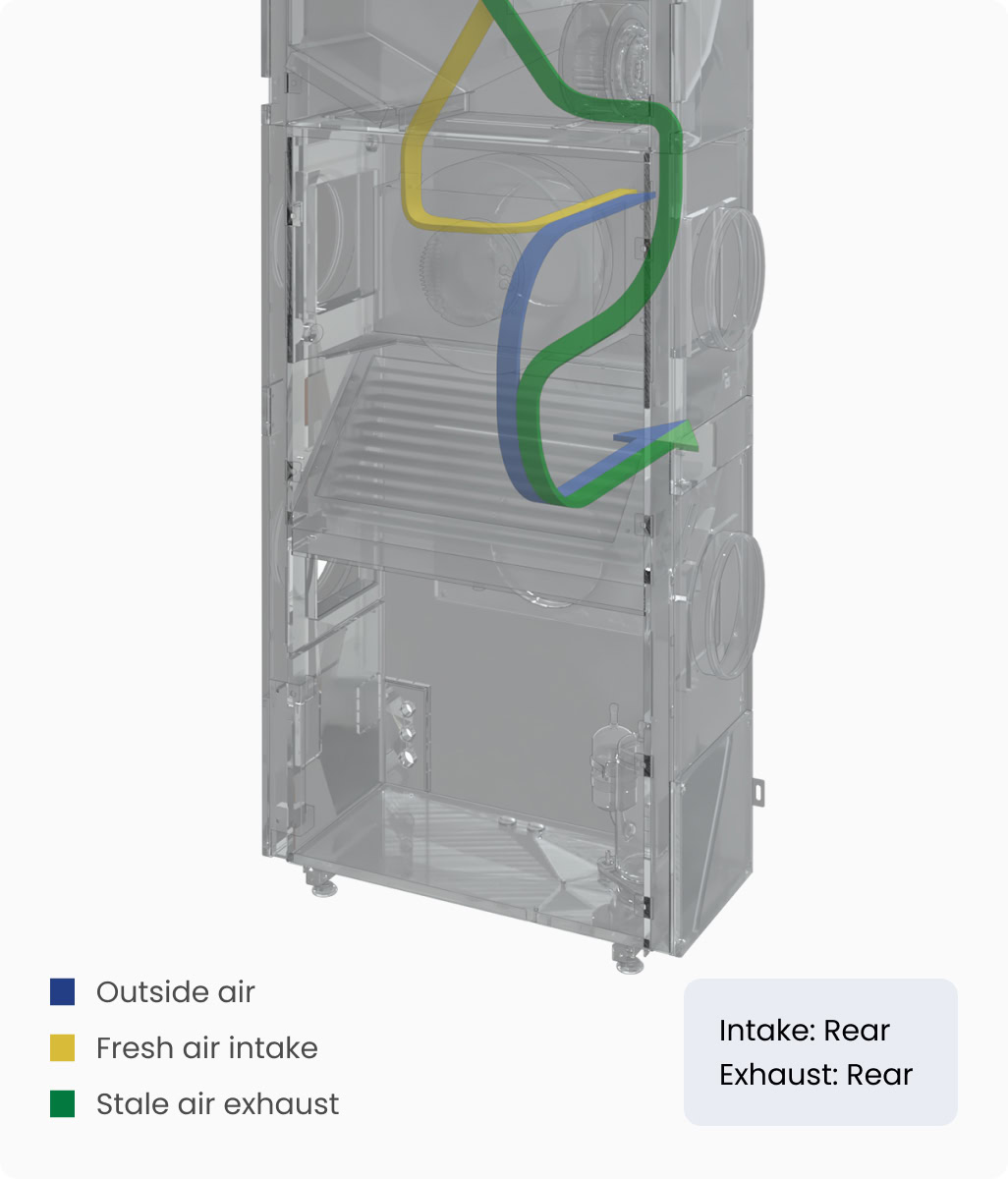

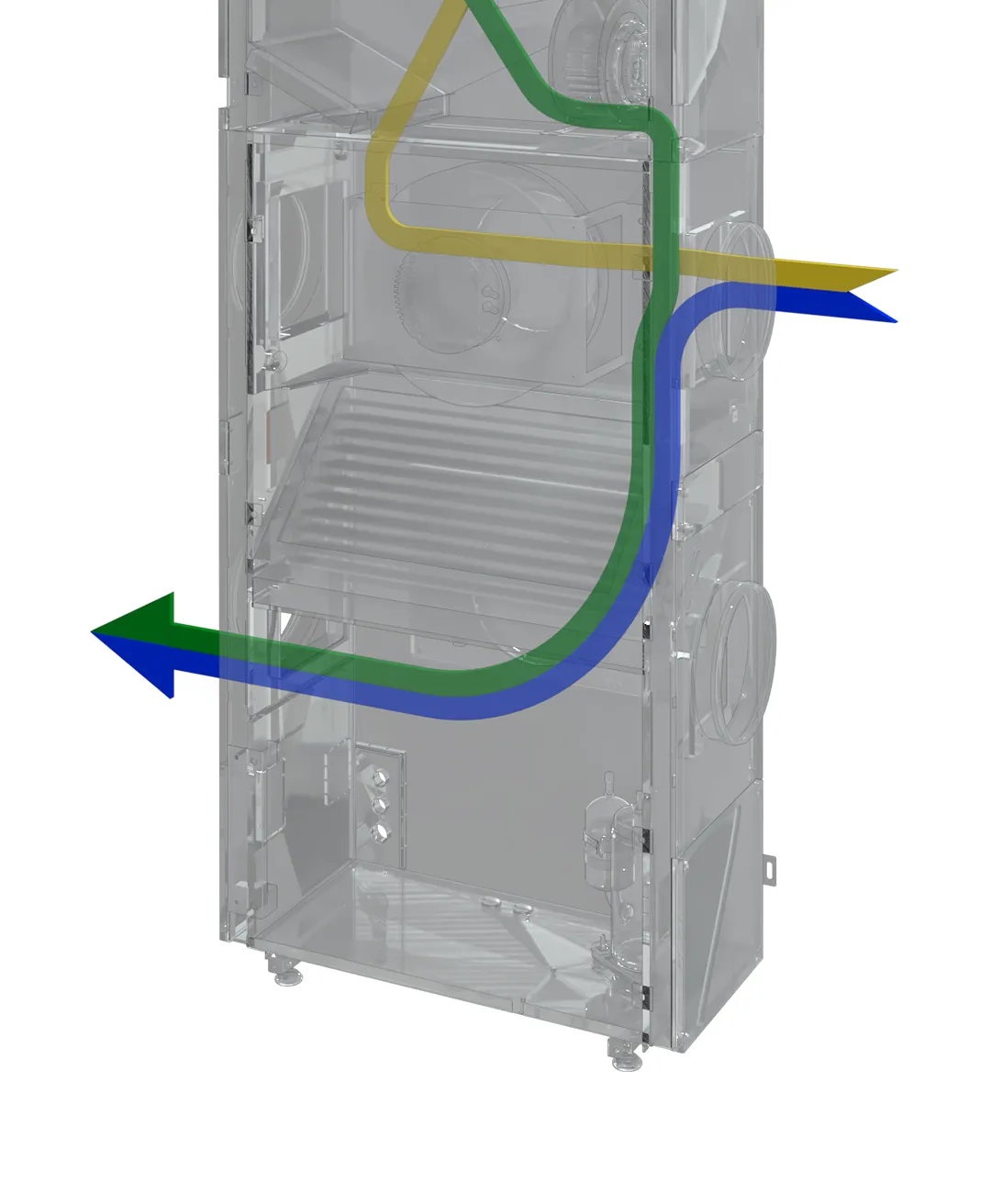

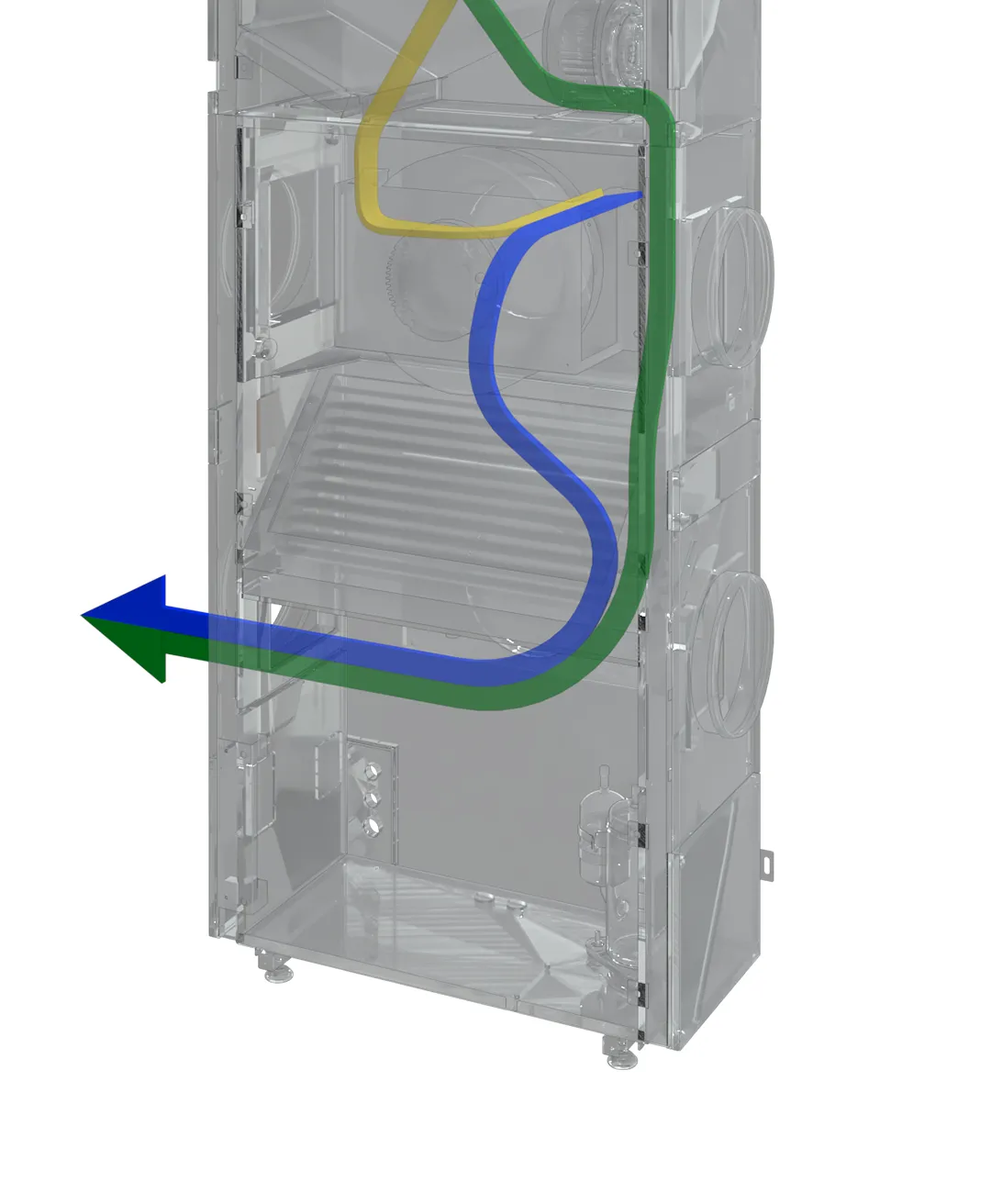

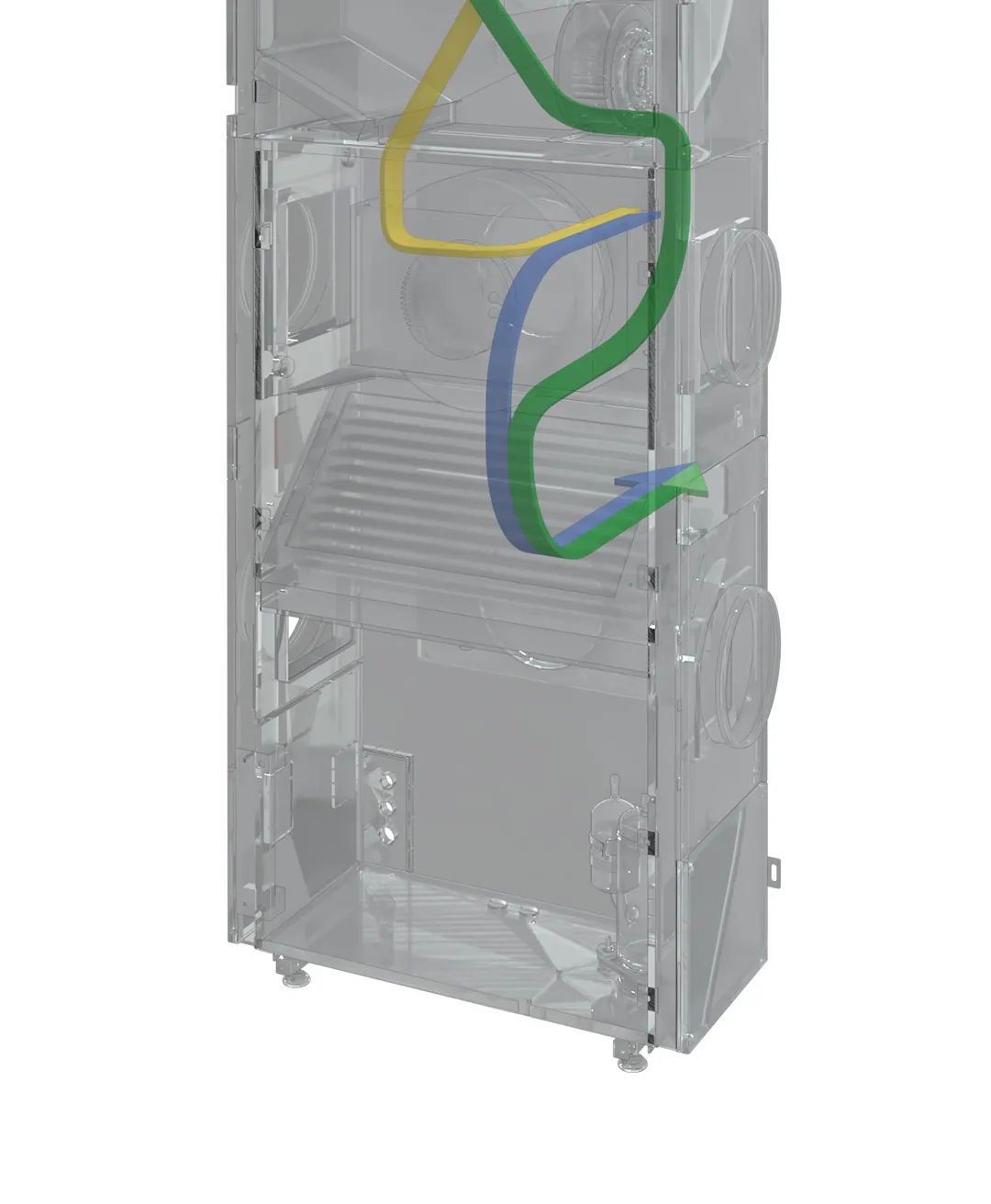

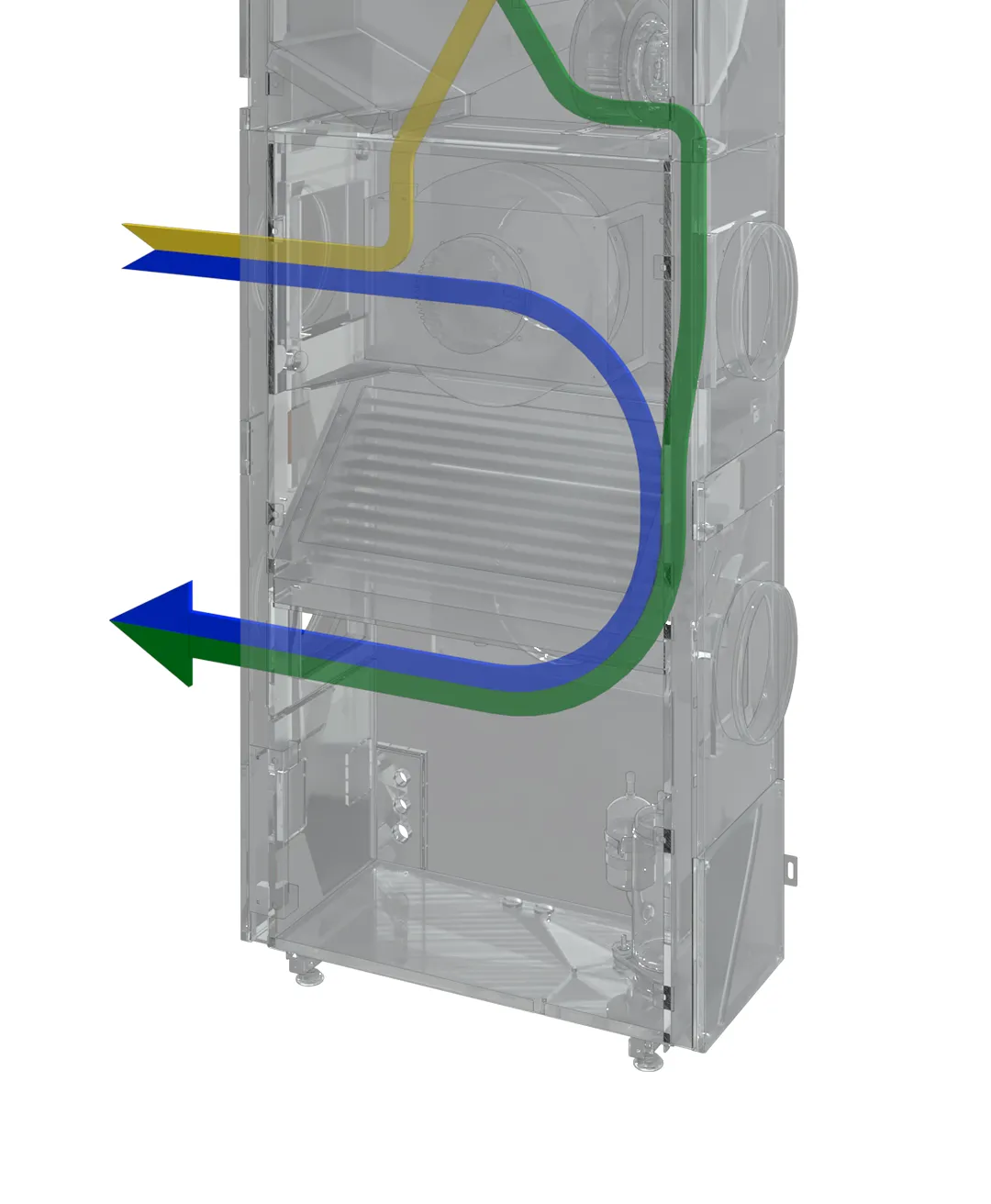

Outside air intake
The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).
Outside air exhaust
The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).
Return air – bottom option
The bottom 8.7” x 22” return is designed to be used with a ceiling-mounted return grille or an access panel with an integrated return grille.
Return air – sides options
The left and right side 6” round connection can be ducted to one or more rooms with up to 0.6” external static pressure (combined between return and supply). It can also be left open as a side plenum return. Each connection is fully independent with two ECM fans, each with auto ESP. Duct both, leave both open or duct one, and leave one open to a plenum.

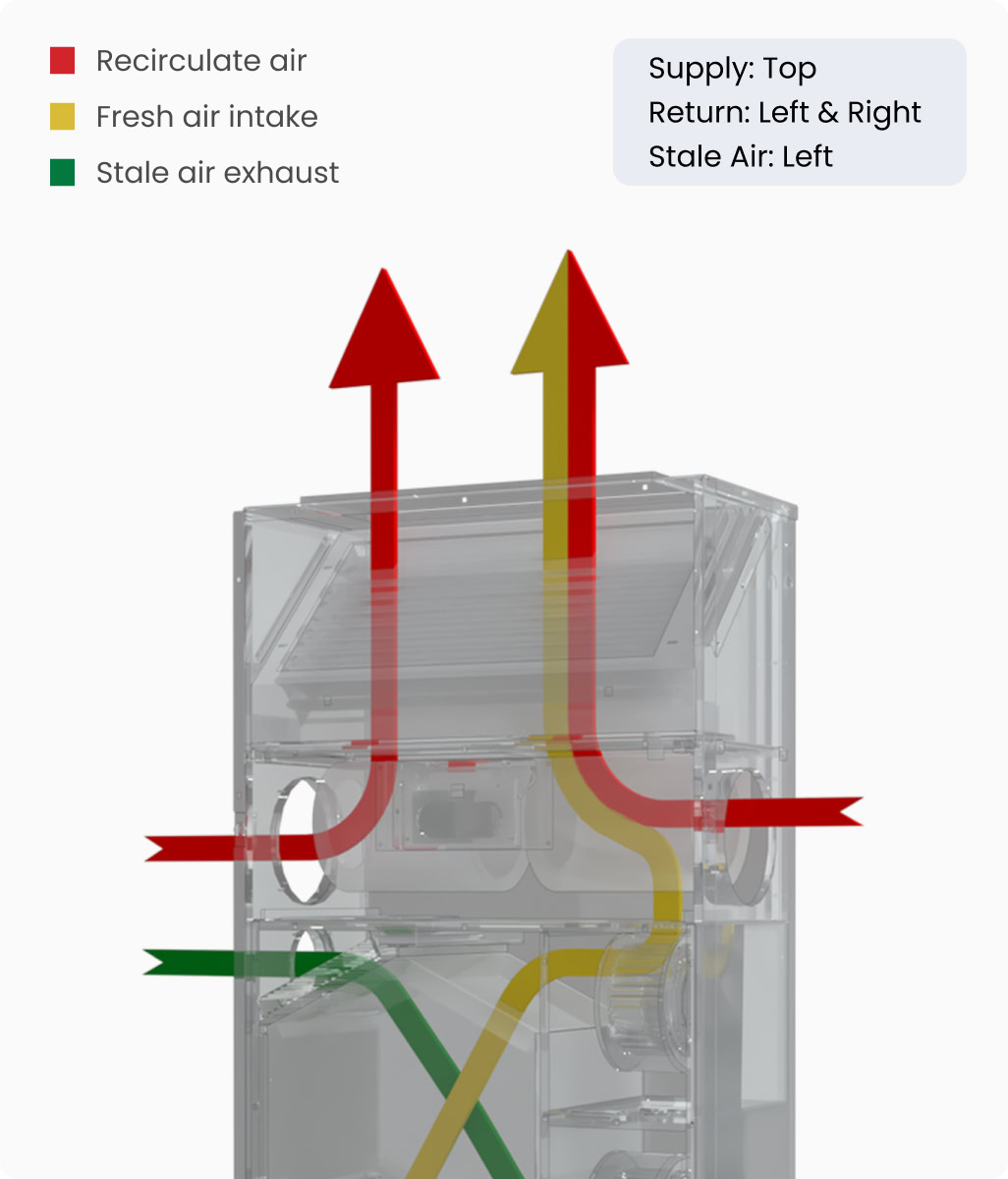

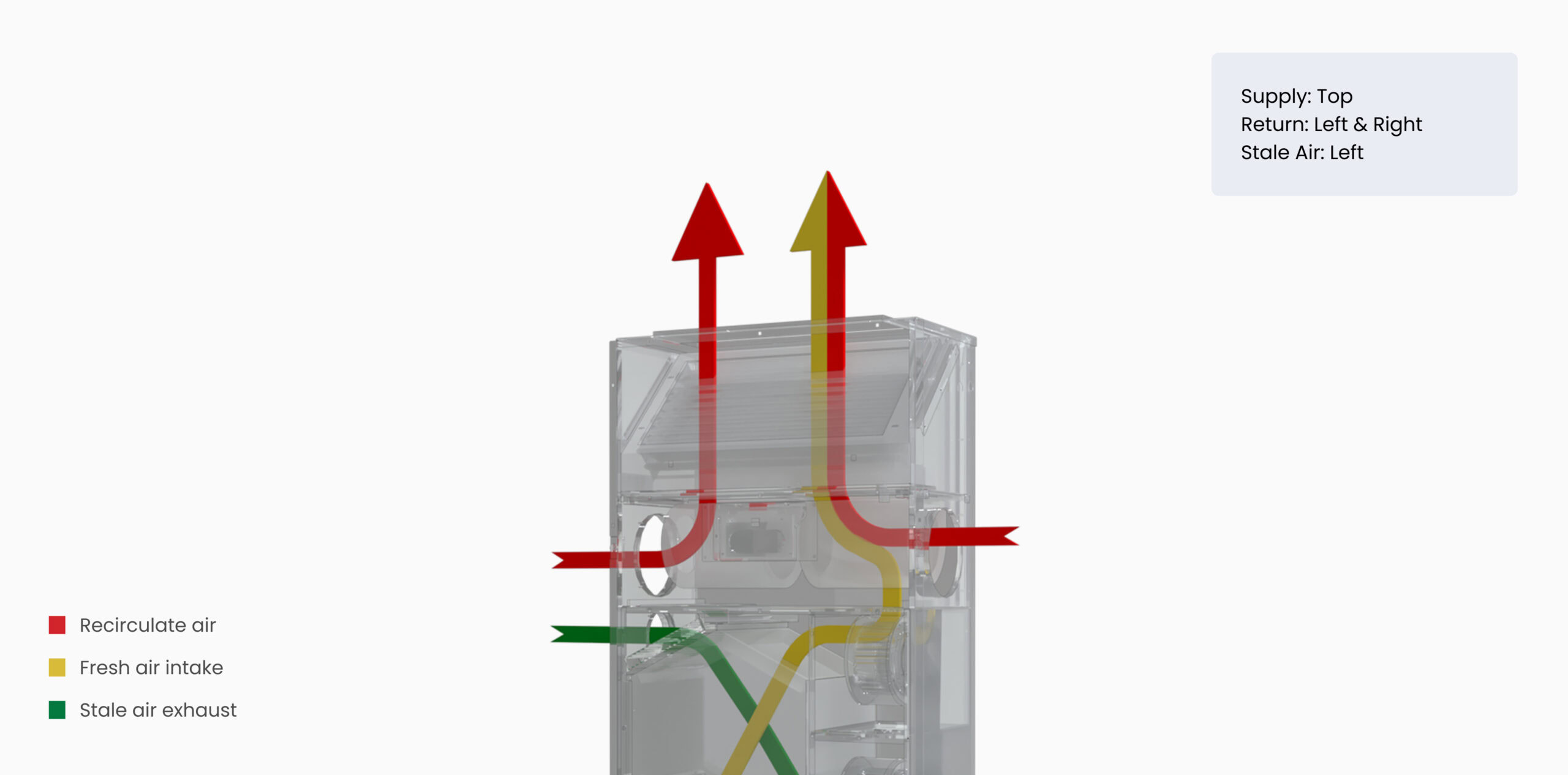

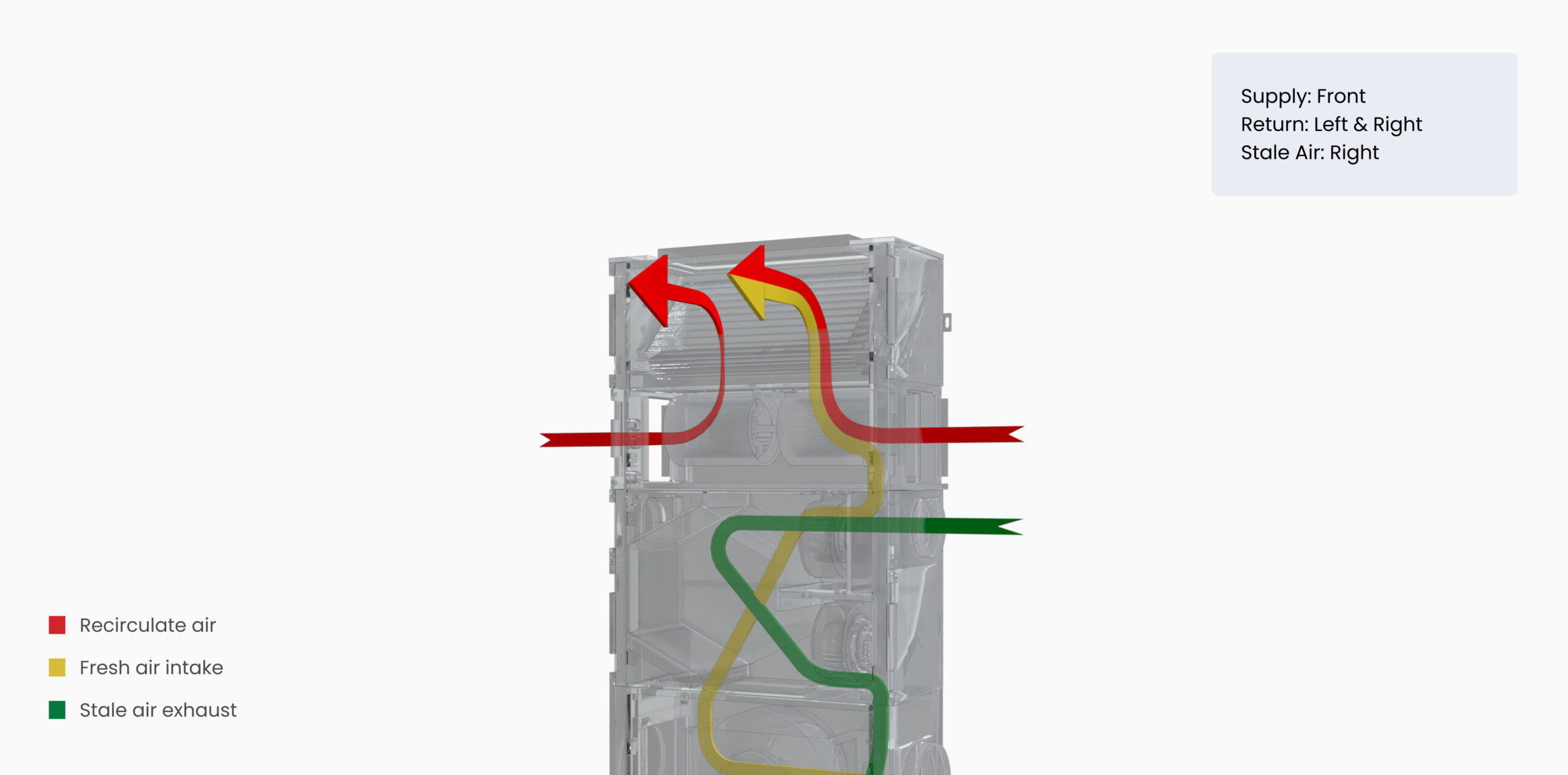

Supply air
The rectangular 4” x 29” supply air connection is ideal for a supply grille or ducting, with up to 0.6” external static pressure (combined between return and supply).

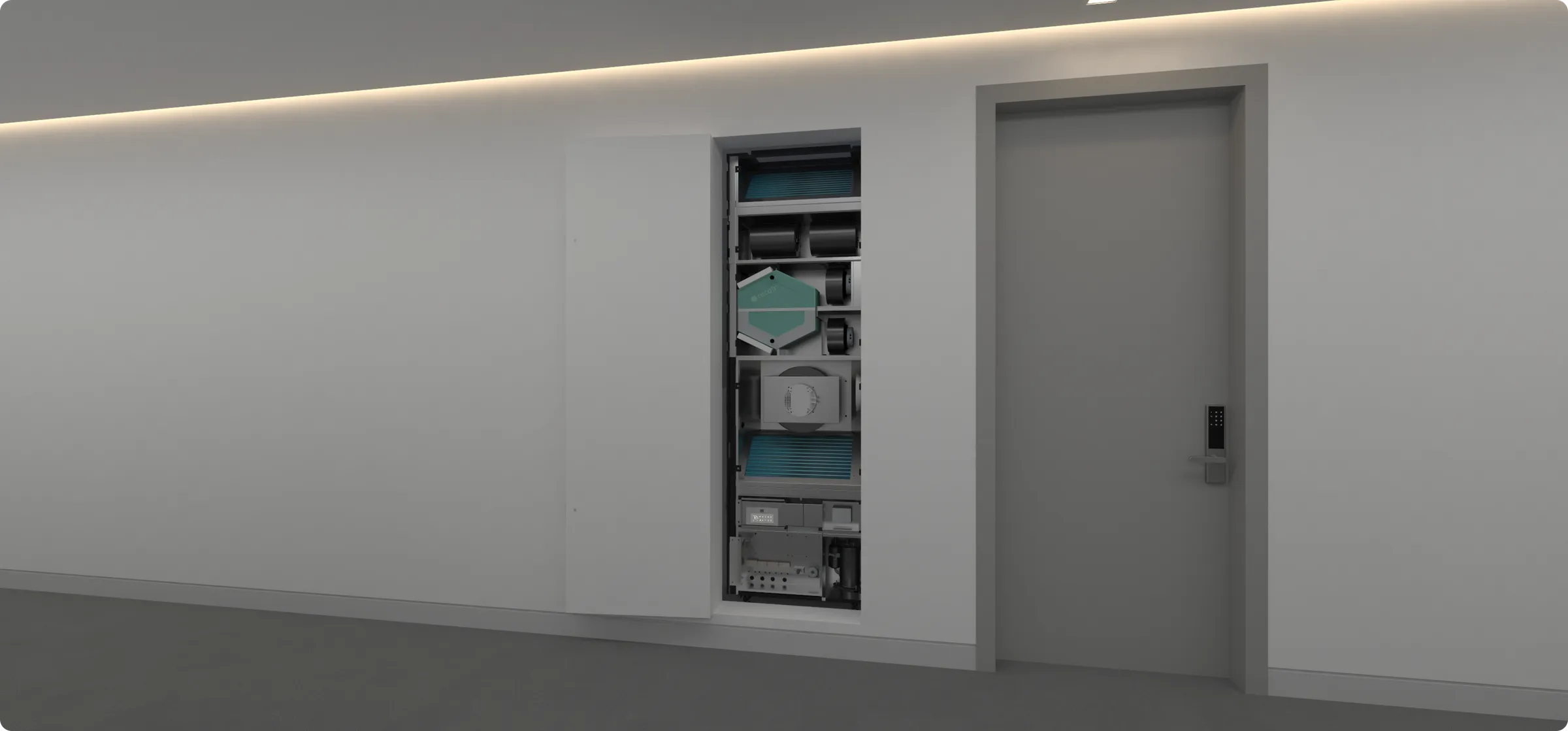

No Access Required
The versatile design of AIO makes the system extremely reliable and inexpensive to maintain. If a repair is needed, a single unit can be taken off-line without affecting the entire system. It’s possible to install AIO Vertical stack on the corridor wall of each apartment/hotel room so that all maintenance can be achieved from a common area – at any time, which means no maintenance personnel needs to enter the unit.
Installation

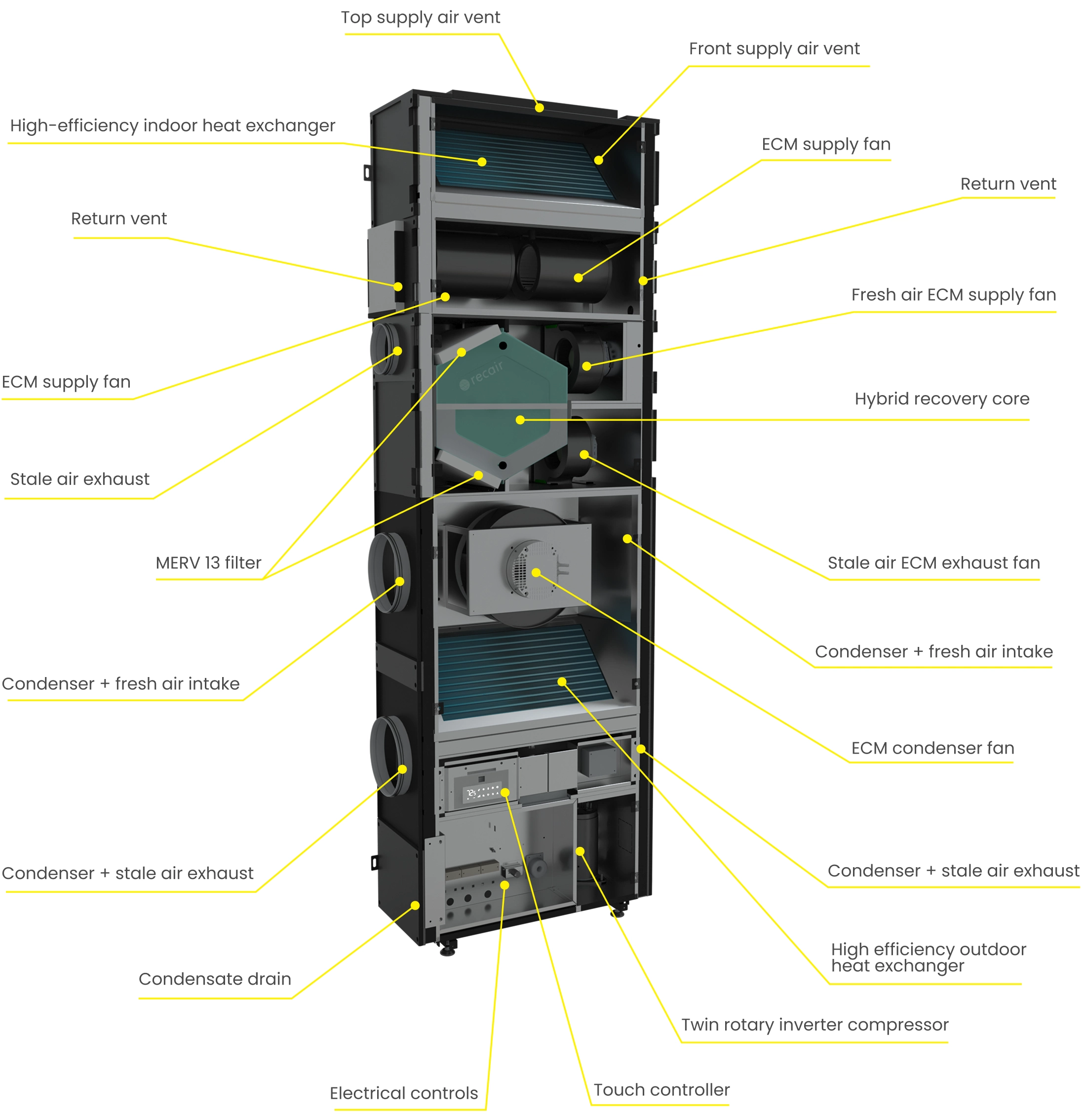

What's Inside
Key Specifications
High Performance
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 14.4
- 9.8
- 8.9
- 3.6
- 1.75
- 0.96
- 0.81
- 0.25
- 8.23
- 10.27
- 11.01
- 14.35
1.8
105°F 2
- 13.1
- 8.5
- 7.6
- 3.6
- 1.68
- 0.97
- 0.85
- 0.28
- 7.8
- 8.8
- 9.0
- -
2
115°F 3
- 11.8
- 7.8
- 6.9
- 3.4
- 1.06
- 1.10
- 0.93
- 0.30
- 6.74
- 7.4
- 7.47
- -
2.2
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 13.8
- 10.0
- 8.9
- 3.8
- 1.75
- 0.76
- 0.66
- 0.42
- 2.31
- 13.31
- 3.81
- 2.72
- 9.8
17°F 2
- 9.4
- 9.0
- 9.0
- 3.3
- 1.75
- 1.15
- 1.15
- 0.44
- 1.57
- 2.3
- 2.30
- 2.2
- -
5°F 3
- 6.7
- 6.5
- 6.5
- 2.8
- 1.75
- 1.11
- 1.11
- 0.46
- 1.12
- 1.72
- 1.72
- 1.78
- -
0°F 4
- 6.4
- 6.1
- 6.1
- 2.7
- 1.65
- 1.08
- 1.08
- 0.48
- 1.14
- 1.67
- 1.67
- 1.65
- -
-5°F 5
- 6.0
- 6.5
- 5.8
- 2.7
- 1.70
- 1.19
- 1.03
- 0.50
- 1.03
- 5.5
- 1.64
- 1.58
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
High Efficiency
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 14.4
- 9.8
- 8.9
- 3.6
- 1.75
- 0.96
- 0.81
- 0.25
- 8.23
- 10.27
- 11.01
- 14.35
1.8
105°F 2
- 13.1
- 8.5
- 7.6
- 3.6
- 1.68
- 0.97
- 0.85
- 0.28
- 7.8
- 8.8
- 9.0
- -
2
115°F 3
- 11.8
- 7.8
- 6.9
- 3.4
- 1.75
- 1.10
- 0.93
- 0.30
- 6.74
- 7.4
- 7.47
- -
2.2
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 13.8
- 10.0
- 8.9
- 8.3
- 1.75
- 0.76
- 0.66
- 0.42
- 2.31
- 13.2
- 3.81
- 2.72
- 9.8
17°F 2
- 9.4
- 9.0
- 9.0
- 3.3
- 1.75
- 1.15
- 1.15
- 0.44
- 1.57
- 2.3
- 2.30
- 2.2
- -
5°F 3
- 6.7
- 6.5
- 6.5
- 2.8
- 1.75
- 1.11
- 1.11
- 0.46
- 1.12
- 1.72
- 1.72
- 1.78
- -
0°F 4
- 6.4
- 6.1
- 6.1
- 2.7
- 1.65
- 1.08
- 1.08
- 0.48
- 1.14
- 1.67
- 1.67
- 1.65
- -
-5°F 5
- 6.0
- 6.5
- 5.8
- 2.7
- 1.70
- 1.19
- 1.03
- 0.50
- 1.03
- 5.5
- 1.64
- 1.58
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
High Performance
Cooling
Heat Pump only
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (L/h)
35°C 1
- 4.2
- 2.9
- 2.6
- 1.1
- 1.75
- 0.96
- 0.81
- 0.25
- 8.23
- 10.27
- 11.01
- 14.35
0.9
41°C 2
- 3.8
- 2.5
- 2.2
- 1.1
- 1.68
- 0.97
- 0.85
- 0.28
- 7.8
- 8.8
- 9.0
- -
1.0
46°C 3
- 3.5
- 2.3
- 2.0
- 1.0
- 1.06
- 1.10
- 0.93
- 0.30
- 3.74
- 7.4
- 7.47
- -
1.0
- 1
- 2
- 3
- 35°C
- 41°C
- 48°C
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- OD: 35°C, W.B. 23.9°C
- OD: 40.6°C, W.B. 23.9°C
- OD: 46.1°C, W.B. 23.9°C
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
8°C 1
- 4.0
- 2.9
- 2.6
- 1.1
- 1.75
- 0.76
- 0.66
- 0.42
- 2.31
- 13.31
- 3.81
- 2.72
- 9.8
-8°C 2
- 2.8
- 2.6
- 2.6
- 1.0
- 1.75
- 1.15
- 1.15
- 0.44
- 1.57
- 2.3
- 2.30
- 2.2
- -
-15°C 3
- 2.0
- 1.9
- 1.9
- 0.8
- 1.75
- 1.11
- 1.11
- 0.46
- 1.12
- 1.72
- 1.72
- 1.78
- -
-17°C 4
- 1.9
- 1.8
- 1.8
- 0.8
- 1.65
- 1.08
- 1.08
- 0.48
- 1.14
- 1.67
- 1.67
- 1.65
- -
-20°C 5
- 1.8
- 1.7
- 1.7
- 0.8
- 1.70
- 1.19
- 1.03
- 0.50
- 1.03
- 5.5
- 1.64
- 1.58
- -
- 1
- 2
- 3
- 4
- 5
- 8°C
- -8°C
- -15°C
- -17°C
- -20°C
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- OD: 8.3°C, W.B. 6.1°C
- OD: -8.3°C, W.B. 1-10.6°C
- OD: -15°C, W.B. -16.1°C
- OD: -17.8°C
- OD:-20.6°C
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
High Efficiency
Cooling
Heat Pump only
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (L/h)
35°C 1
- 4.2
- 2.9
- 2.2
- 1.1
- 1.75
- 0.69
- 0.81
- 0.25
- 8.23
- 10.27
- 11.01
- 14.35
0.9
41°C 2
- 3.8
- 2.5
- 2.2
- 1.1
- 1.68
- 0.97
- 0.85
- 0.28
- 7.8
- 8.8
- 9.0
- -
1.0
46°C 3
- 3.5
- 2.3
- 2.0
- 1.0
- 1.75
- 1.10
- 0.93
- 0.30
- 6.74
- 7.4
- 7.47
- -
1.0
- 1
- 2
- 3
- 35°C
- 41°C
- 48°C
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- OD: 35°C, W.B. 23.9°C
- OD: 40.6°C, W.B. 23.9°C
- OD: 46.1°C, W.B. 23.9°C
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
8°C 1
- 4.0
- 2.9
- 2.4
- 1.1
- 1.75
- 0.76
- 0.66
- 0.42
- 2.31
- 13.2
- 3.81
- 2.72
- 9.8
-8°C 2
- 2.8
- 2.6
- 2.6
- 1.0
- 1.75
- 1.15
- 1.15
- 0.44
- 1.57
- 2.3
- 2.30
- 2.2
- -
-15°C 3
- 2.0
- 1.9
- 1.9
- 0.8
- 1.75
- 1.11
- 1.11
- 0.46
- 1.12
- 1.72
- 1.72
- 1.78
- -
-17°C 4
- 1.9
- 1.8
- 1.8
- 0.8
- 1.65
- 1.08
- 1.08
- 0.48
- 1.14
- 1.67
- 1.67
- 1.65
- -
-20°C 5
- 1.8
- 1.7
- 1.7
- 0.8
- 1.70
- 1.19
- 1.03
- 0.50
- 1.03
- 5.5
- 1.64
- 1.58
- -
- 1
- 2
- 3
- 4
- 5
- 8°C
- -8°C
- -15°C
- -17°C
- -20°C
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- OD: 8.3°C, W.B. 6.1°C
- OD: -8.3°C, W.B. 1-10.6°C
- OD: -15°C, W.B. -16.1°C
- OD: -17.8°C
- OD:-20.6°C
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
