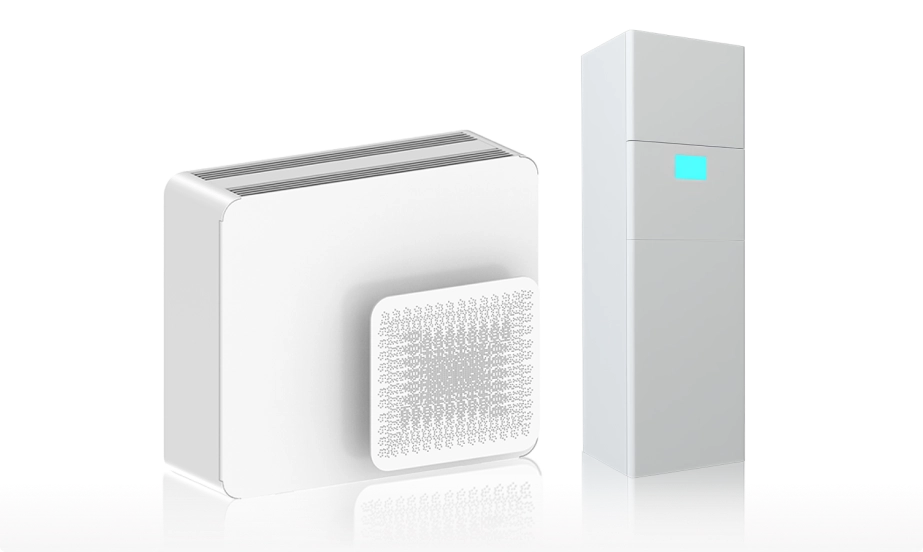

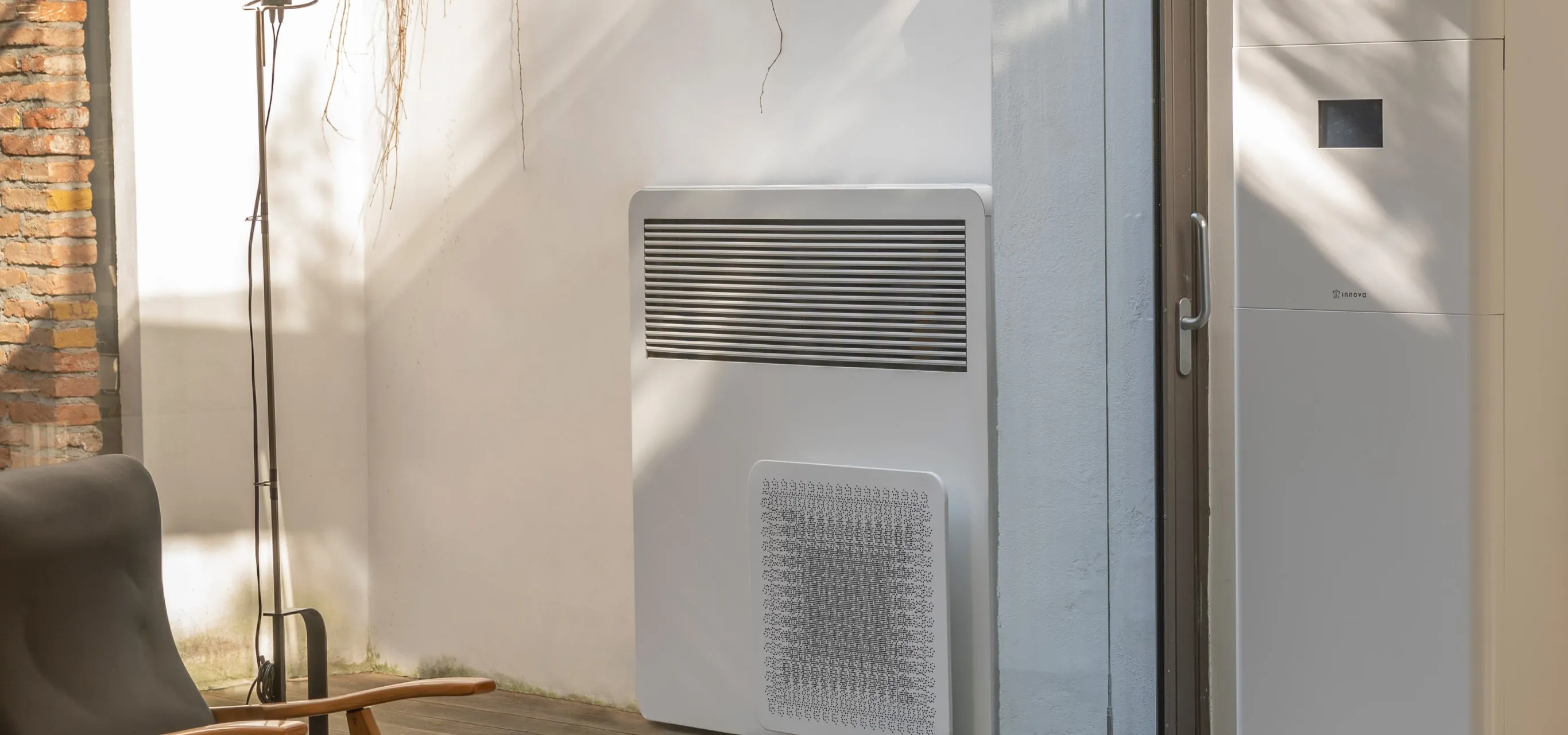

STØNE Architectural Complete

Tailored for large homes, office buildings, hotels, and apartment buildings, the STØNE Architectural Complete offers versatility.

This all-in-one system provides heating, cooling, and domestic hot water functionalities. Comprising an outdoor condenser unit and an indoor distribution and hot water system.

Key Benefits

  • All-in-one system heating, cooling, and domestic hot water
  • Outdoor condenser + indoor distribution and hot water system
  • Fits into a compact closet without requiring additional clearance
  • User-friendly installation no extensive technical expertise
  • Serves water loop heat pump terminals

Options

  • Available in five sizes two to five tons
  • Floor-standing / wall-mounted unit or a recessed version

Controllers

  • Butler Pro Advanced Controller

Fan coils

Hot water

Hot water

Indoor distribution unit

Cold water supply

STØNE Architectural

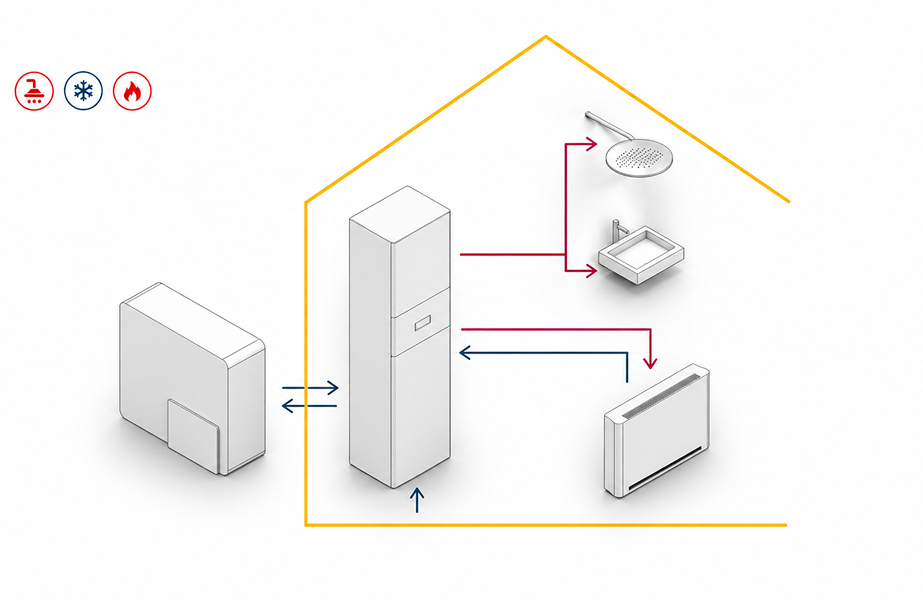

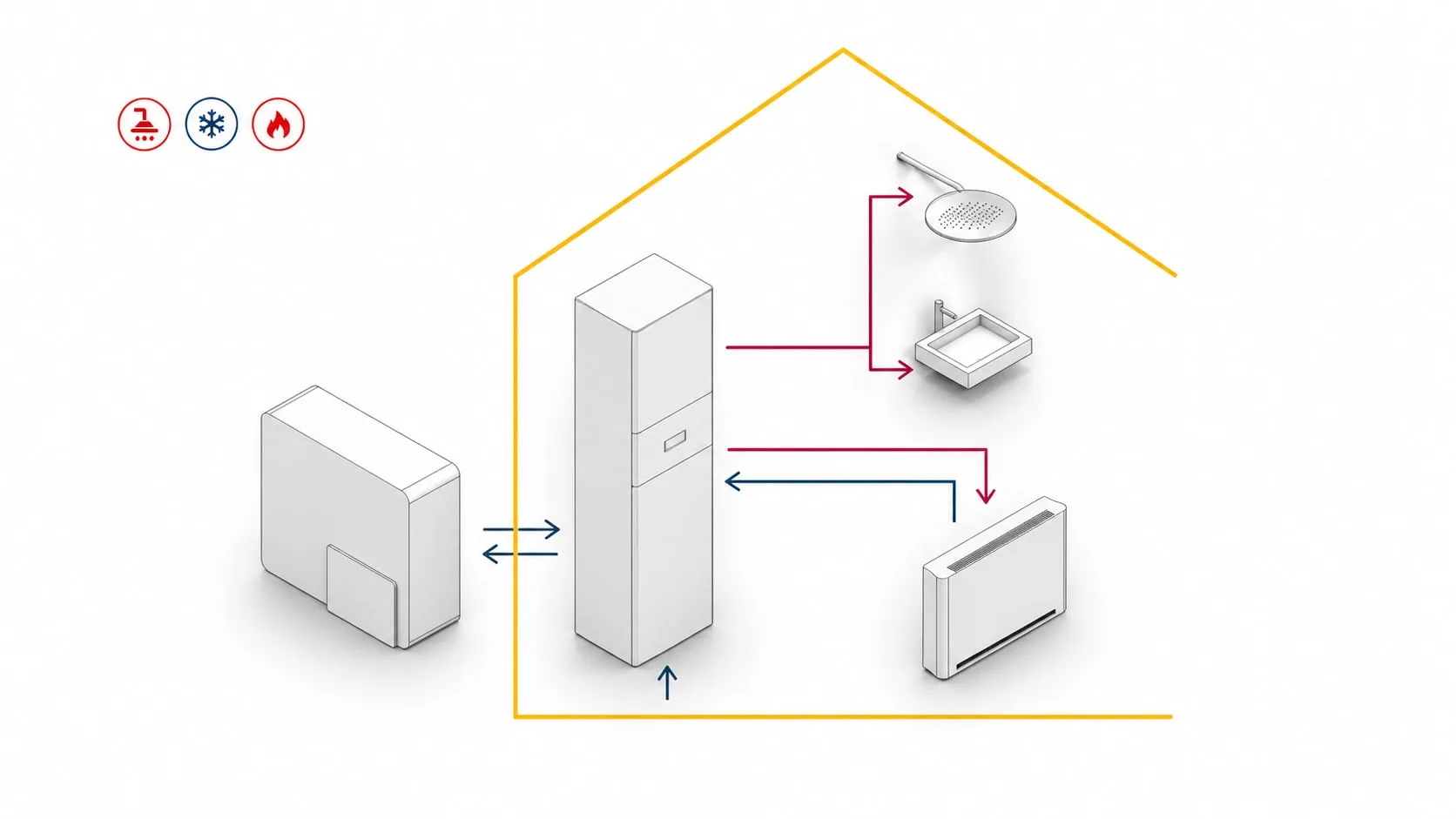

STØNE Architectural Diagram

STØNE ensures a continuous supply of domestic hot water where cold water flows through a serpentine-shaped pipe system for instantaneous heating.

Dimensions

Outdoor Unit

Top
Discharge

  • Width (in)
  • Height (in)
  • Depth (in)
  • Weight (lb)

P5T

  • 42.9
  • 36.4
  • 12.6
  • 264

P7T

  • 42.9
  • 36.4
  • 12.6
  • 264

P9T

  • 52.9
  • 42.9
  • 13.7
  • 295

P11T

  • 52.9
  • 42.9
  • 13.7
  • 308

P13T

  • 60.6
  • 56.8
  • 16.0
  • 339

P15T

  • 60.6
  • 56.8
  • 16.0
  • 352

Side
Discharge

  • Width (in)
  • Height (in)
  • Depth (in)
  • Weight (lb)

P5S

  • 42.9
  • 36.4
  • 12.6
  • 264

P7S

  • 42.9
  • 36.4
  • 12.6
  • 264

P9S

  • 52.9
  • 44.6
  • 13.7
  • 295

P11S

  • 52.9
  • 52.5
  • 13.7
  • 308

P13S

  • 60.6
  • 60.4
  • 16.0
  • 339

P15S

  • 60.6
  • 56.8
  • 16.0
  • 352

Recessed

  • Width (in)
  • Height (in)
  • Depth (in)
  • Weight (lb)

P5S

  • 42.9
  • 36.4
  • 12.6
  • 264

P7S

  • 42.9
  • 36.4
  • 12.6
  • 264

P9S

  • 52.9
  • 44.6
  • 13.7
  • 295

P11S

  • 52.9
  • 52.5
  • 13.7
  • 308

P13S

  • 60.6
  • 60.4
  • 16.0
  • 339

P15S

  • 60.6
  • 56.8
  • 16.0
  • 352

Top
Discharge

  • Width (mm)
  • Height (mm)
  • Depth (mm)
  • Weight (mm)

P5T

  • 1,089
  • 925
  • 320
  • 119.8

P7T

  • 1,089
  • 925
  • 320
  • 119.8

P9T

  • 1,344
  • 1,089
  • 348
  • 133.8

P11T

  • 1,344
  • 1,089
  • 348
  • 139.7

P13T

  • 1,539
  • 1,443
  • 407
  • 153.8

P15T

  • 1,539
  • 1,443
  • 407
  • 159.7

Side
Discharge

  • Width (mm)
  • Height (mm)
  • Depth (mm)
  • Weight (kg)

P5S

  • 1,089
  • 1,151
  • 320
  • 119.8

P7S

  • 1,089
  • 1,151
  • 320
  • 119.8

P9S

  • 1,344
  • 1,316
  • 348
  • 133.8

P11S

  • 1,344
  • 1,316
  • 348
  • 139.7

P13S

  • 1,539
  • 1,649
  • 407
  • 153.8

P15S

  • 1,539
  • 1,649
  • 407
  • 159.7

Recessed

  • Width (mm)
  • Height (mm)
  • Depth (mm)
  • Weight (kg)

P5S

  • 1,089
  • 1,151
  • 333
  • 109.8

P7S

  • 1,089
  • 1,151
  • 333
  • 109.8

P9S

  • 1,344
  • 1,316
  • 358
  • 119.8

P11S

  • 1,344
  • 1,316
  • 358
  • 124.7

P13S

  • 1,539
  • 1,649
  • 414
  • 139.7

P15S

  • 1,539
  • 1,649
  • 414
  • 144.7

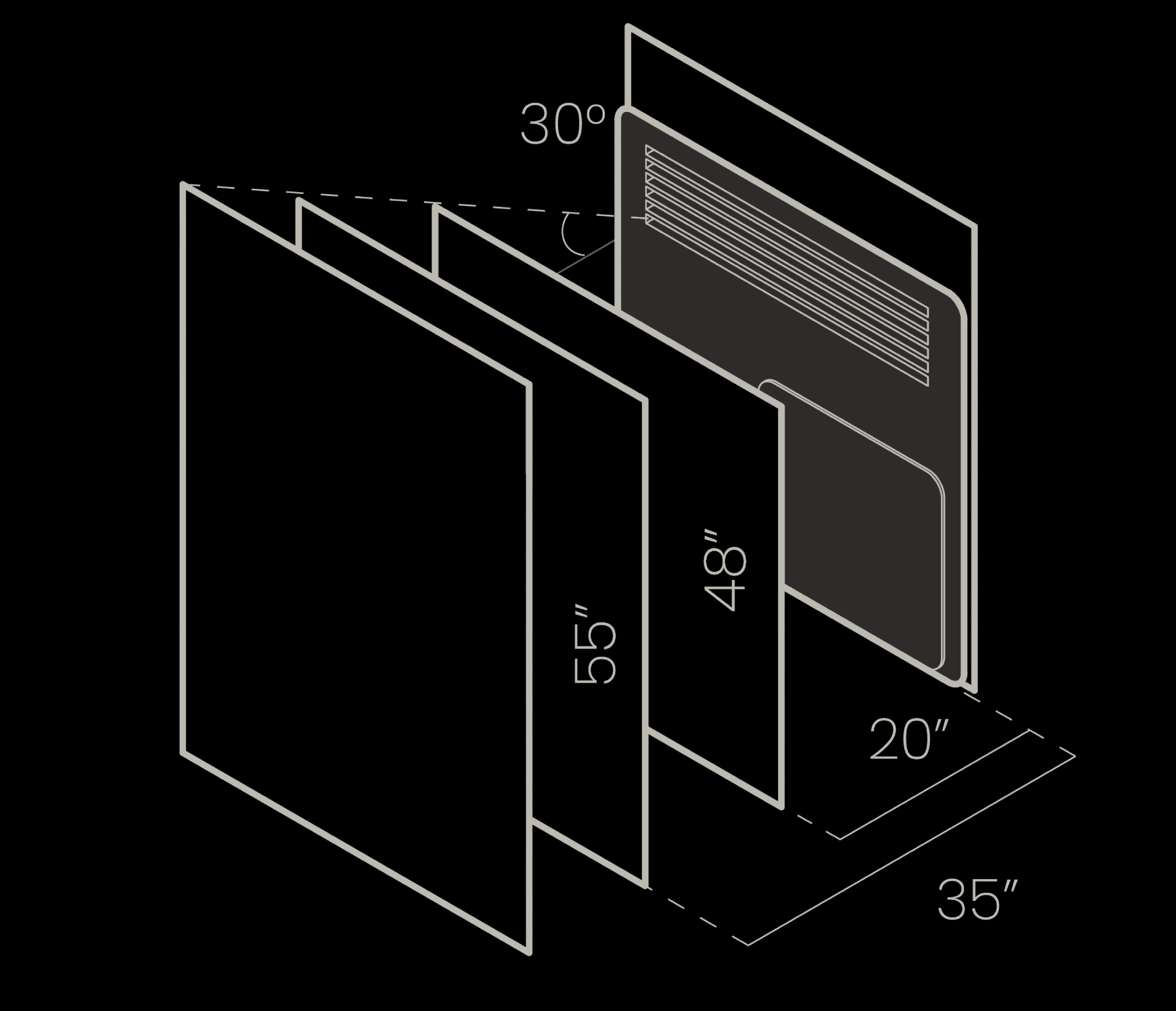

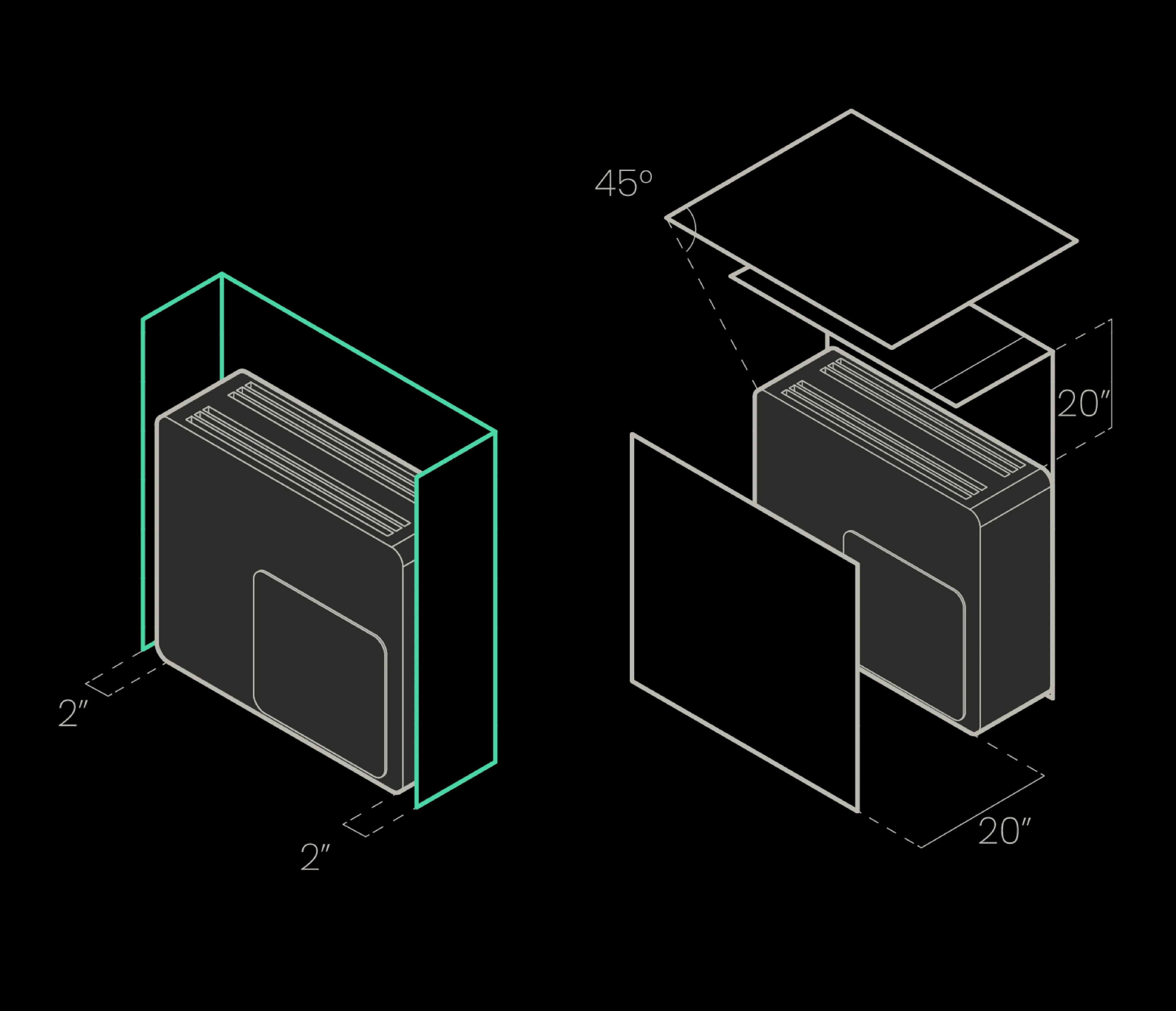

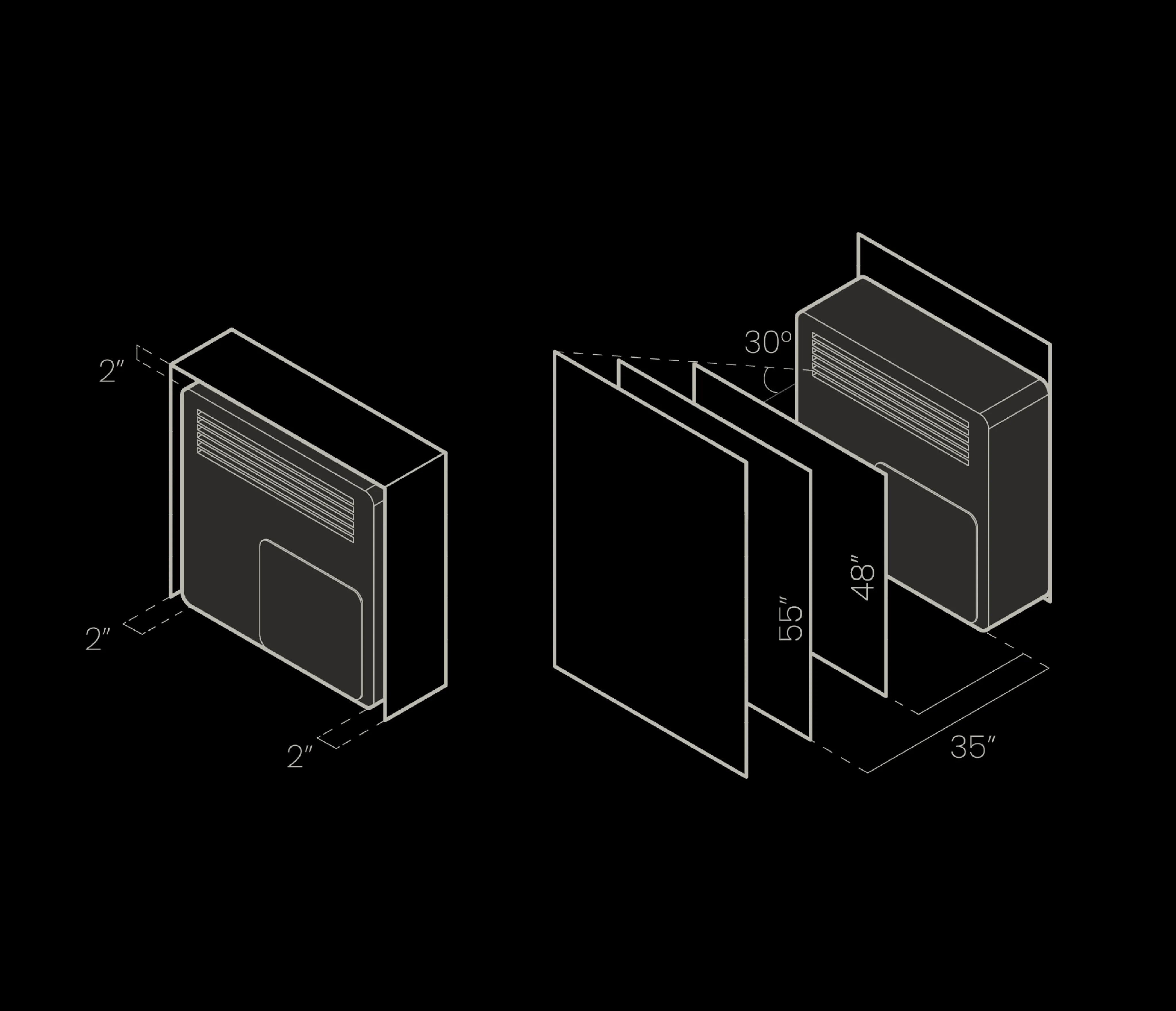

Clearances

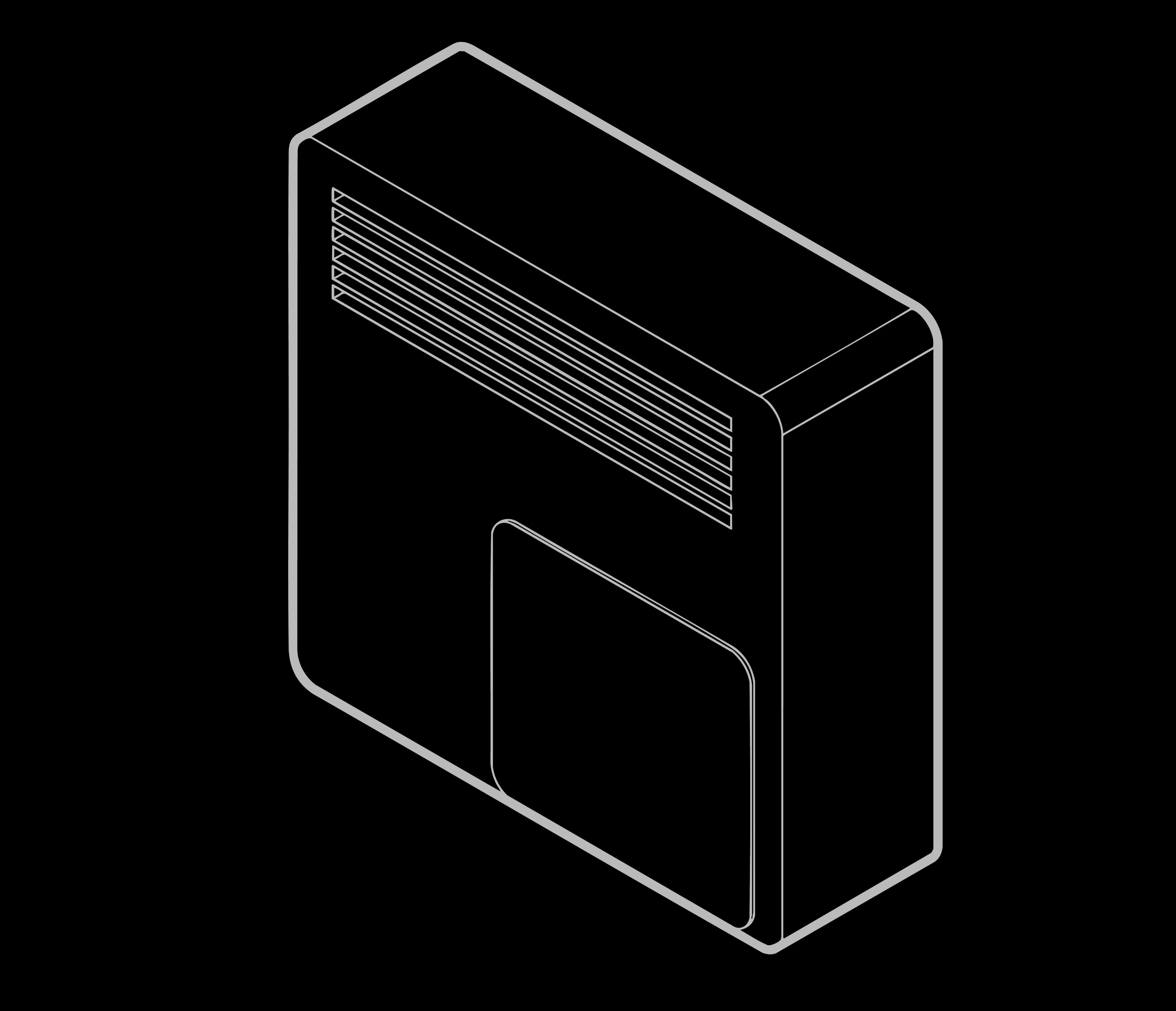

Top Discharge

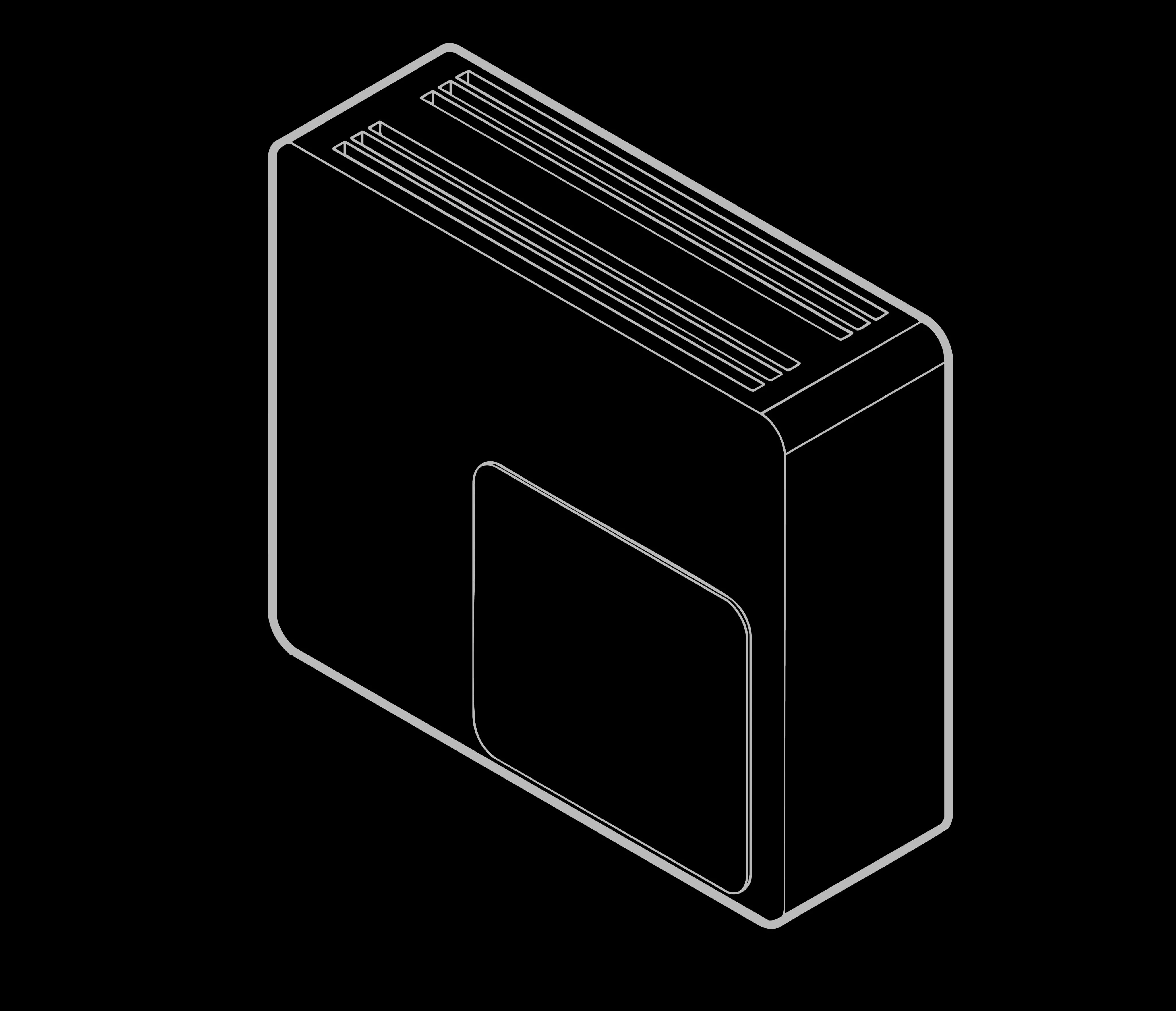

Side Discharge

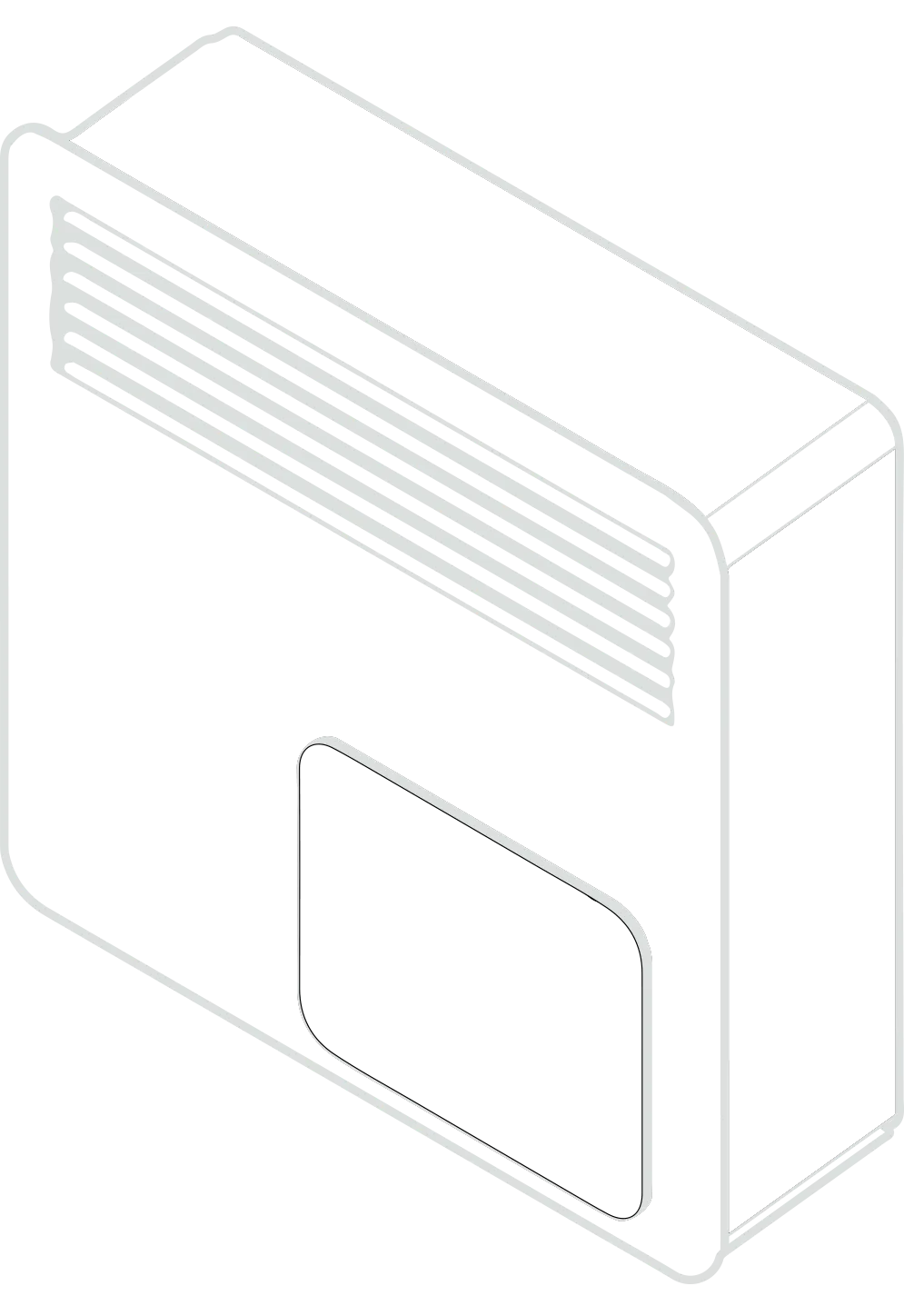

Recessed

Key Specifications

Heating

47°F

  • Maximum capacity
    (Btu/h)
  • Nominal capacity
    (Btu/h)
  • Power (kW)
  • Efficiency

C5

  • 25.8
  • 18.8
  • 1.16
  • 4.74

C7

  • 36.7
  • 25.5
  • 1.62
  • 4.67

C9

  • 39.1
  • 31.2
  • 1.83
  • 4.76

C11

  • 46.2
  • 36.3
  • 2.37
  • 4.48

C13

  • 51.9
  • 42.6
  • 2.62
  • 4.76

C15

  • 65
  • 51.7
  • 3.23
  • 4.70

5°F

  • Maximum capacity
    (Btu/h)
  • Power (kW)
  • Efficiency

C5

  • 14.3
  • 1.52
  • 2.76

C7

  • 17.5
  • 1.96
  • 2.62

C9

  • 21.5
  • 2.28
  • 2.76

C11

  • 25.1
  • 2.75
  • 2.68

C13

  • 28
  • 2.87
  • 2.86

C15

  • 34.7
  • 3.58
  • 2.84



  • Maximum capacity
    (Btu/h)
  • Nominal capacity
    (Btu/h)
  • Power (kW)
  • Efficiency EER2
  • Efficiency SEER2

C5

  • 22.9
  • 14.3
  • 1.22
  • 11.70
  • 15.28

C7

  • 30.2
  • 22.0
  • 2.0
  • 10.96
  • 13.92

C9

  • 32.4
  • 26.6
  • 2.33
  • 11.39
  • 14.68

C11

  • 38.0
  • 30.0
  • 2.65
  • 11.29
  • 14.51

C13

  • 42.5
  • 34.1
  • 2.99
  • 11.39
  • 14.68

C15

  • 54.3
  • 41.1
  • 3.71
  • 11.05
  • 14.10

Ambient
Temperature

Heating

  • -13°F
  • -13°F
  • 14°F
  • 100°F
  • 100°F

Entering Water
Temperature



  • 68°F
  • 95°F
  • 113°F
  • 113°F
  • 68°F

Leaving Water
Temperature



  • 77°F
  • 113°F
  • 131°F
  • 131°F
  • 77°F

Cooling

  • 59°F
  • 59°F
  • 117°F
  • 117°F



  • 54°F
  • 86°F
  • 86°F
  • 54°F



  • 45°F
  • 77°F
  • 77°F
  • 45°F

Heating

8°C

  • Maximum capacity
    (kW)
  • Nominal capacity
    (kW)
  • Power (kW)
  • Efficiency

C5

  • 7.6
  • 5.5
  • 1.16
  • 4.74

C7

  • 10.8
  • 7.5
  • 1.62
  • 4.67

C9

  • 11.5
  • 9.1
  • 1.83
  • 4.76

C11

  • 13.5
  • 10.5
  • 2.37
  • 4.48

C13

  • 15.2
  • 12.5
  • 2.62
  • 4.76

C15

  • 19.1
  • 15.2
  • 3.23
  • 4.70

−15°C

  • Maximum capacity
    (kW)
  • Power (kW)
  • Efficiency

C5

  • 4.2
  • 1.52
  • 2.76

C7

  • 5.1
  • 1.96
  • 2.62

C9

  • 6.3
  • 2.28
  • 2.76

C11

  • 7.4
  • 2.75
  • 2.68

C13

  • 8.2
  • 2.87
  • 2.86

C15

  • 10.2
  • 3.58
  • 2.84



  • Maximum capacity
    (kW)
  • Nominal capacity
    (kW)
  • Power (kW)
  • Efficiency EER2
  • Efficiency SEER2

C5

  • 6.7
  • 4.2
  • 1.22
  • 11.70
  • 15.28

C7

  • 8.9
  • 6.5
  • 2.0
  • 10.96
  • 13.92

C9

  • 5.9
  • 7.8
  • 2.33
  • 11.39
  • 14.68

C11

  • 11.2
  • 8.8
  • 2.65
  • 11.29
  • 14.51

C13

  • 12.5
  • 10.0
  • 2.99
  • 11.39
  • 14.68

C15

  • 15.9
  • 12.0
  • 3.71
  • 11.05
  • 14.10

Ambient
Temperature

Heating

  • -25°C
  • -25°C
  • -10°C
  • 38°C
  • 38°C

Entering Water
Temperature



  • 20°C
  • 35°C
  • 45°C
  • 45°C
  • 20°C

Leaving Water
Temperature



  • 25°C
  • 45°C
  • 55°C
  • 55°C
  • 25°C

Cooling

  • 15°C
  • 15°C
  • 47°C
  • 47°C



  • 12°C
  • 30°C
  • 30°C
  • 12°C



  • 7°C
  • 25°C
  • 25°C
  • 7°C
