Ephoca has returned to INNOVA

STØNE Architectural Split

Name: STØNE Architectural Split
Brand: INNOVA

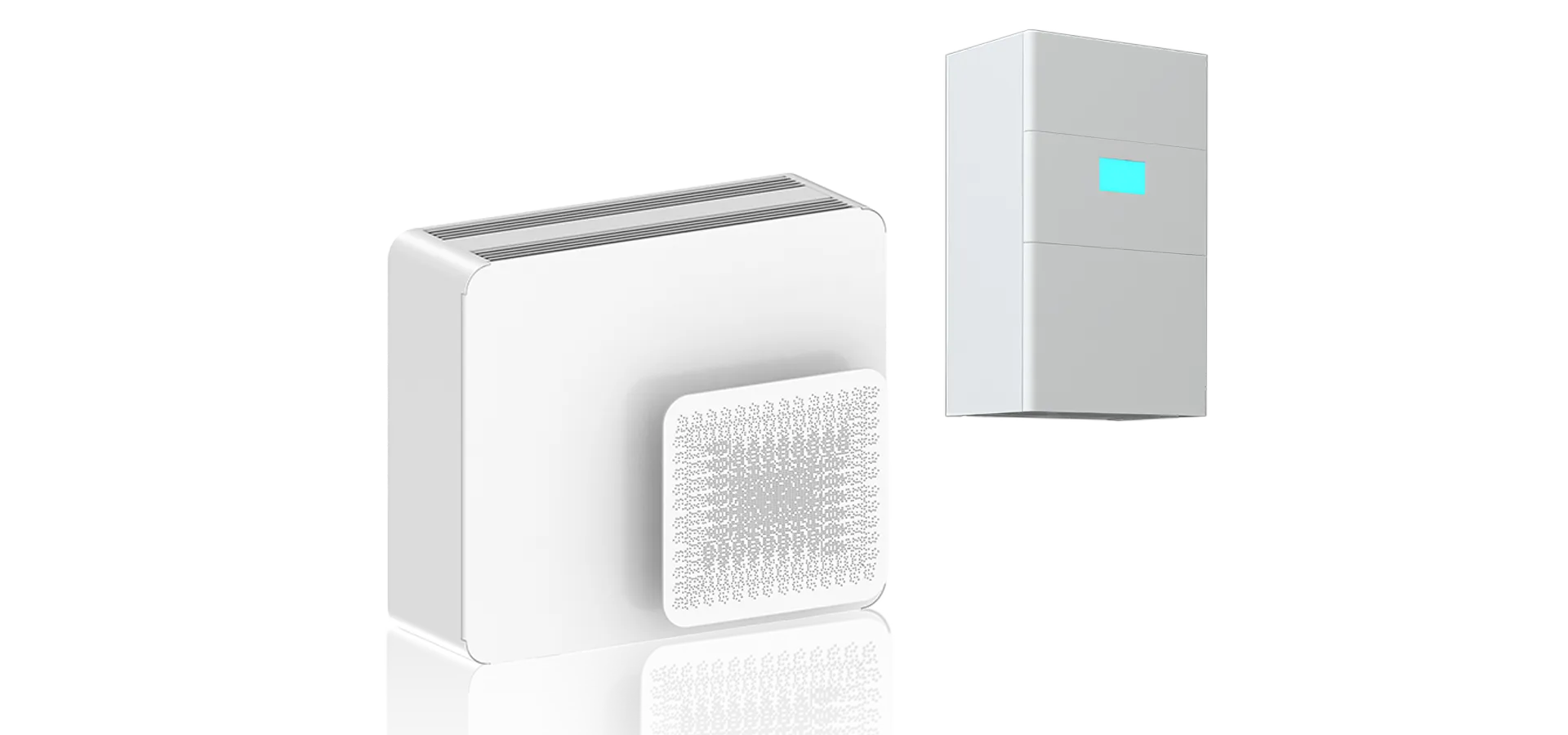

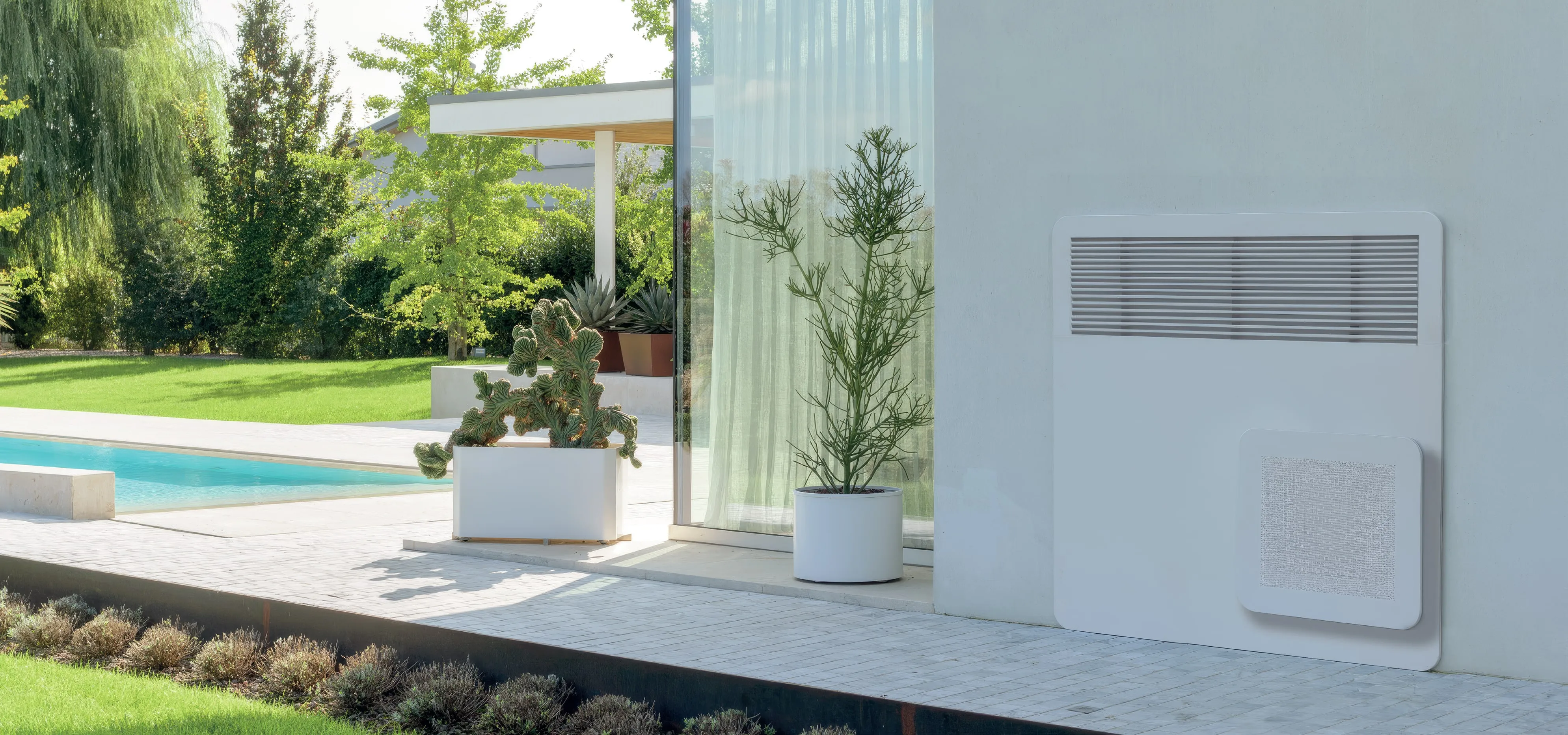

STØNE Architectural Split outdoor unit render

Tailored for large homes, office buildings, hotels, and apartment buildings, the STØNE Architectural Split offers flexibility.

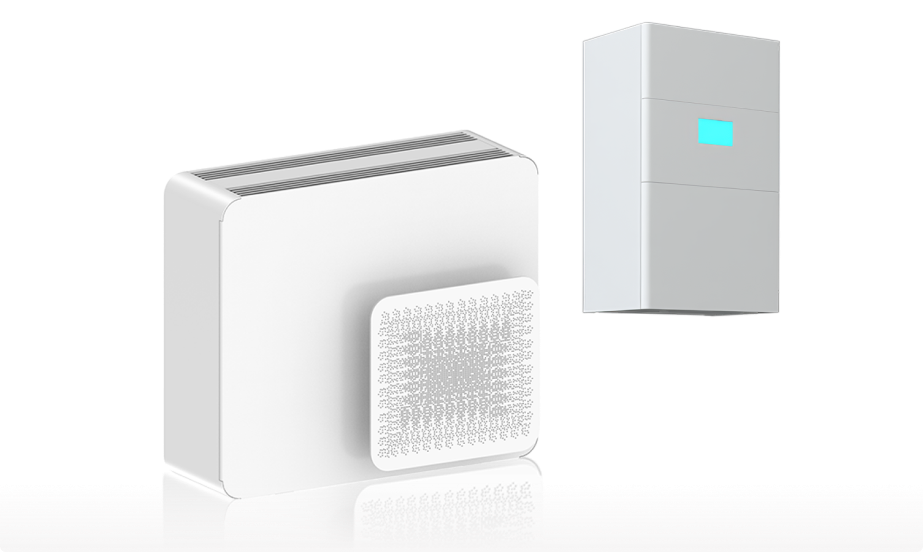

Comprising two components—an outdoor condenser unit and an indoor distribution system—these elements are seamlessly connected by refrigerant lines.

Key Benefits

Two components outdoor condenser and indoor distribution system
Provides both heating and cooling capabilities
Indoor unit fits into a small cabinet with no clearance
User-friendly installation no extensive technical expertise
Accommodate water loop heat pump terminals

Options

Available in five sizes two to five tons
Floor-standing / wall-mounted unit or a recessed version

Controllers

Butler Pro Advanced Controller

STØNE Architectural Split Diagram

Comprising two components—an outdoor condenser unit and an indoor distribution system—these elements are seamlessly connected by refrigerant lines and supply heating and cooling to the indoor fan coil units.

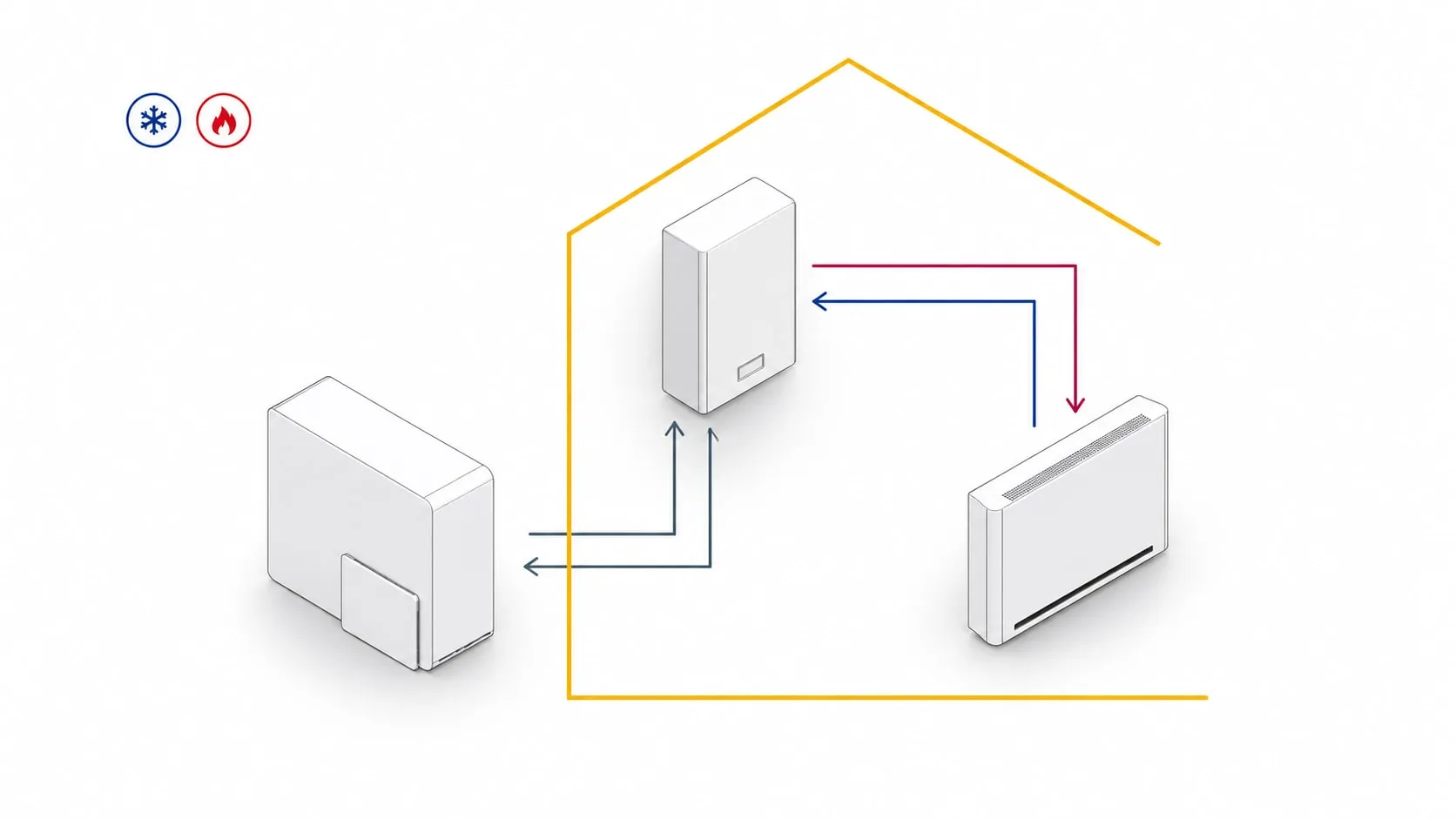

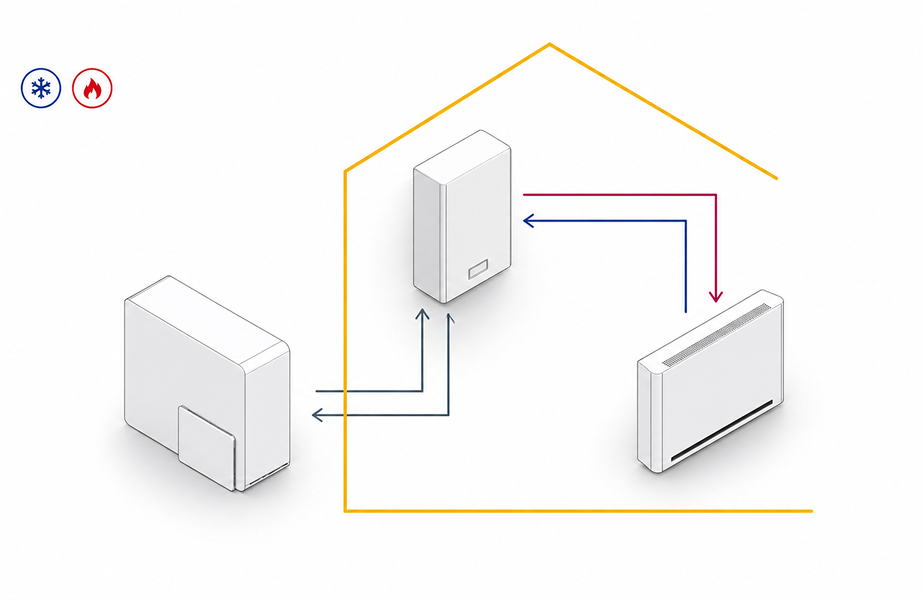

Diagram: the STØNE Architectural Split — outdoor unit, indoor module and fan coil, with the flow between them

The three STØNE Architectural mounting variants side by side — floor-standing, wall-mounted and recessed

Dimensions

Outdoor Unit

Top Discharge	P5T	P7T	P9T	P11T	P13T	P15T
Width (in)	42.9	42.9	52.9	52.9	60.6	60.6
Height (in)	36.4	36.4	42.9	42.9	56.8	56.8
Depth (in)	12.6	12.6	13.7	13.7	16.0	16.0
Weight (lb)	264	264	295	308	339	352

Technical drawing of the STØNE Architectural outdoor unit, side-discharge version

Side Discharge	P5S	P7S	P9S	P11S	P13S	P15S
Width (in)	42.9	42.9	52.9	52.9	60.6	60.6
Height (in)	36.4	36.4	44.6	52.5	60.4	56.8
Depth (in)	12.6	12.6	13.7	13.7	16.0	16.0
Weight (lb)	264	264	295	308	339	352

Technical drawing of the STØNE Architectural Split outdoor unit, recessed version

Recessed	P5S	P7S	P9S	P11S	P13S	P15S
Width (in)	42.9	42.9	52.9	52.9	60.6	60.6
Height (in)	36.4	36.4	44.6	52.5	60.4	56.8
Depth (in)	12.6	12.6	13.7	13.7	16.0	16.0
Weight (lb)	264	264	295	308	339	352

Clearances

Clearance diagram for the top-discharge unit: 2 in at each side and 20 in of free space above and in front, within a 45° arc — Top Discharge

Clearance diagram for the side-discharge unit: 2 in around the casing, and the free space required in front of the discharge at a 30° angle — Side Discharge

Clearance diagram for the recessed unit: the free space required in front of the discharge at a 30° angle — Recessed

Outdoor Unit

Top Discharge	P5T	P7T	P9T	P11T	P13T	P15T
Width (mm)	1,089	1,089	1,344	1,344	1,539	1,539
Height (mm)	925	925	1,089	1,089	1,443	1,443
Depth (mm)	320	320	348	348	407	407
Weight (kg)	119.8	119.8	133.8	139.7	153.8	159.7

Side Discharge	P5S	P7S	P9S	P11S	P13S	P15S
Width (mm)	1,089	1,089	1,344	1,344	1,539	1,539
Height (mm)	1,151	1,151	1,316	1,316	1,649	1,649
Depth (mm)	320	320	348	348	407	407
Weight (kg)	119.8	119.8	133.8	139.7	153.8	159.7

Recessed	P5S	P7S	P9S	P11S	P13S	P15S
Width (mm)	1,089	1,089	1,344	1,344	1,539	1,539
Height (mm)	1,151	1,151	1,316	1,316	1,649	1,649
Depth (mm)	333	333	358	358	414	414
Weight (kg)	109.8	109.8	119.8	124.7	139.7	144.7

Clearances

Key Specifications

Heating

47°F	S5	S7	S9	S11	S13	S15
Maximum capacity (Btu/h)	25.8 Btu/h	36.7 Btu/h	39.1 Btu/h	46.2 Btu/h	51.9 Btu/h	65 Btu/h
Nominal capacity (Btu/h)	18.8 Btu/h	25.5 Btu/h	31.2 Btu/h	36.3 Btu/h	42.6 Btu/h	51.7 Btu/h
Power (kW)	1.16 kW	1.62 kW	1.83 kW	2.37 kW	2.62 kW	3.23 kW
Efficiency	4.74	4.67	4.76	4.48	4.76	4.70

5°F	S5	S7	S9	S11	S13	S15
Maximum capacity (Btu/h)	14.3 Btu/h	17.5 Btu/h	21.5 Btu/h	25.1 Btu/h	28 Btu/h	34.7 Btu/h
Power (kW)	1.52 kW	1.96 kW	2.28 kW	2.75 kW	2.87 kW	3.58 kW
Efficiency	2.76	2.62	2.76	2.68	2.86	2.84

Cooling

	S5	S7	S9	S11	S13	S15
Maximum capacity (Btu/h)	22.9 Btu/h	30.2 Btu/h	32.4 Btu/h	38.0 Btu/h	42.5 Btu/h	54.3 Btu/h
Nominal capacity (Btu/h)	14.3 Btu/h	22.0 Btu/h	26.6 Btu/h	30.0 Btu/h	34.1 Btu/h	41.1 Btu/h
Power (kW)	1.22 kW	2.0 kW	2.33 kW	2.65 kW	2.99 kW	3.71 kW
Efficiency	11.70	10.96	11.39	11.29	11.39	11.05

Operating Limits

Ambient Temperature	Entering Water Temperature	Leaving Water Temperature
Heating
-13°F	68°F	77°F
-13°F	95°F	113°F
14°F	113°F	131°F
100°F	113°F	131°F
100°F	68°F	77°F

Cooling
59°F	54°F	45°F
59°F	86°F	77°F
117°F	86°F	77°F
117°F	54°F	45°F

Heating

8°C	S5	S7	S9	S11	S13	S15
Maximum capacity (kW)	7.6 kW	10.8 kW	11.5 kW	13.5 kW	15.2 kW	19.1 kW
Nominal capacity (kW)	5.5 kW	7.5 kW	9.1 kW	10.6 kW	12.5 kW	15.2 kW
Power (kW)	1.16 kW	1.62 kW	1.83 kW	2.37 kW	2.62 kW	3.23 kW
Efficiency	4.74	4.67	4.76	4.48	4.76	4.70

−15°C	S5	S7	S9	S11	S13	S15
Maximum capacity (kW)	4.2 kW	5.1 kW	6.3 kW	7.4 kW	8.2 kW	10.2 kW
Power (kW)	1.52 kW	1.96 kW	2.28 kW	2.75 kW	2.87 kW	3.58 kW
Efficiency	2.76	2.62	2.76	2.68	2.86	2.84

Cooling

	S5	S7	S9	S11	S13	S15
Maximum capacity (kW)	6.7 kW	8.9 kW	9.5 kW	11.2 kW	12.5 kW	15.9 kW
Nominal capacity (kW)	4.2 kW	6.5 kW	7.8 kW	8.8 kW	10.0 kW	12.0 kW
Power (kW)	1.22 kW	2.0 kW	2.33 kW	2.65 kW	2.99 kW	3.71 kW
Efficiency	11.70	10.96	11.39	11.29	11.39	11.05

Operating Limits

Ambient Temperature	Entering Water Temperature	Leaving Water Temperature
Heating
-25°C	20°C	25°C
-25°C	35°C	45°C
-10°C	45°C	55°C
38°C	45°C	55°C
38°C	20°C	25°C

Cooling
15°C	12°C	7°C
15°C	30°C	25°C
47°C	30°C	25°C
47°C	12°C	7°C

View Brochure
