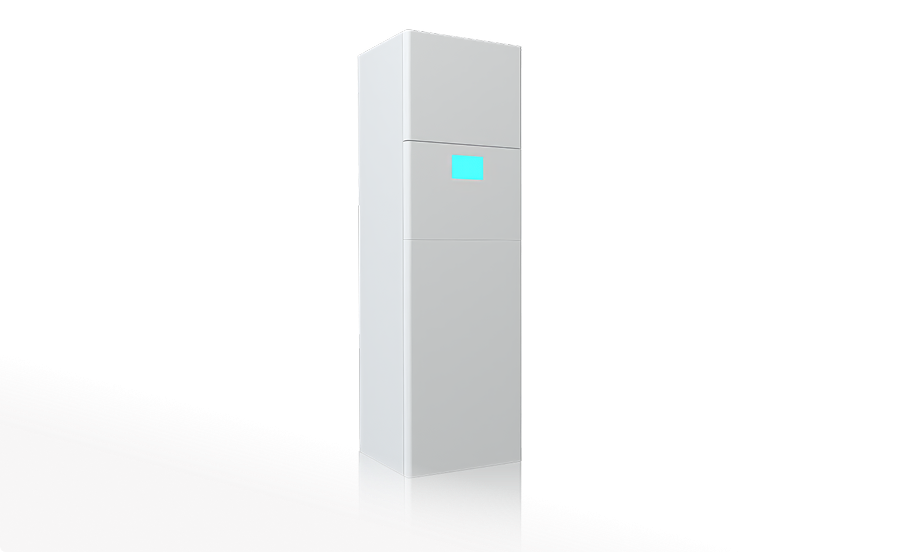

STØNE Compact Complete

Tailored for small homes and apartments, the STØNE Compact Complete delivers efficient heating, cooling, and domestic hot water solutions.

The entire system is seamlessly integrated into the compact indoor unit, eliminating the need for an outdoor unit.

Key Benefits

  • Heating, cooling, and domestic hot water solutions
  • Entire system integrated into the compact indoor unit
  • No outdoor unit
  • Fits into a 24 in. by 24 in. closet
  • Simple connections for the indoor fan coil unit
  • Continuous domestic hot water

Options

  • Available in two sizes
  • Can serve water loop heat pump terminals
  • Can be positioned side by side or stacked vertically

Controllers

  • Butler Pro Advanced Controller

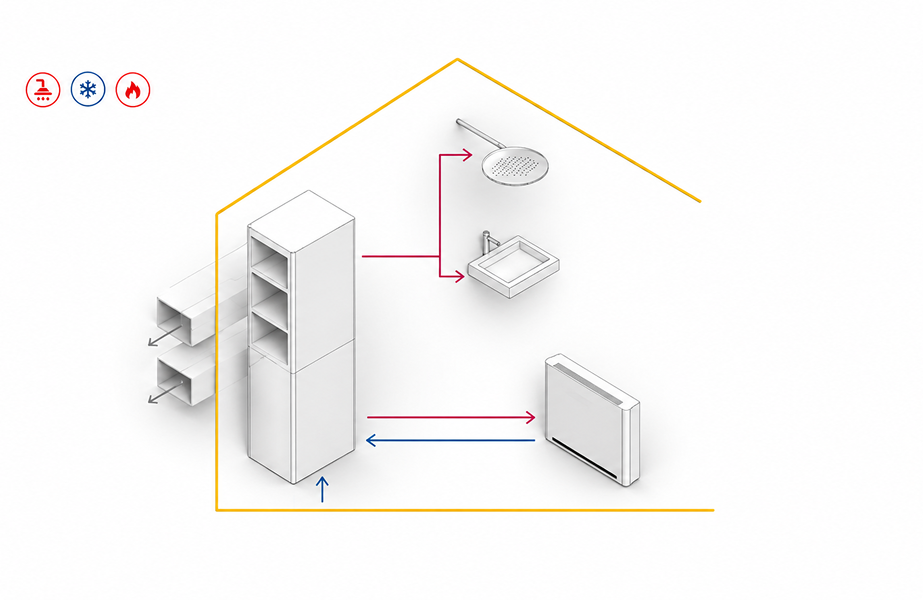

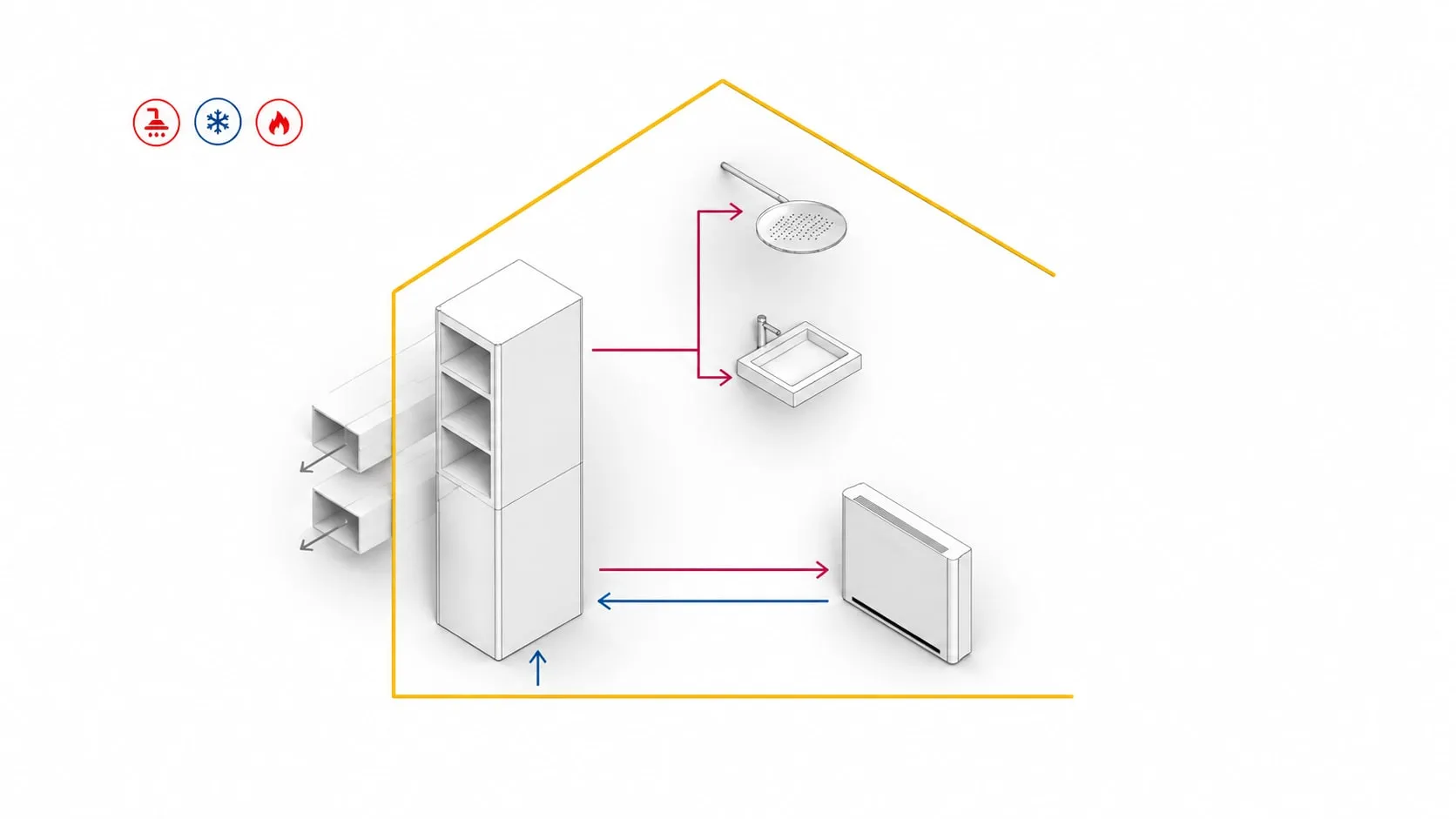

Hot water

Hot water

STØNE Compact
Complete

Fan coils

Cold water supply

Exhaust to outside

Outside air intake

STØNE Compact Complete Diagram

STØNE ensures a continuous supply of domestic hot water where cold water flows through a serpentine-shaped pipe system for instantaneous heating.

Key Specifications

Heating

47°F

  • Maximum capacity (Btu/h)
  • Nominal capacity (Btu/h)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 25.6
  • 15.4
  • 1.02
  • 4.40

CC7S & CC7T

  • 30.9
  • 18.9
  • 2.1
  • 4.31

5°F

  • Maximum capacity (Btu/h)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 14.3
  • 1.52
  • 2.76

CC7S & CC7T

  • 17.5
  • 1.96
  • 2.62



  • Maximum capacity (Btu/h)
  • Nominal capacity (Btu/h)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 21.3
  • 13.9
  • 1.38
  • 9.99

CC7S & CC7T

  • 26.7
  • 16.7
  • 1.78
  • 9.34

Ambient
Temperature

Heating

  • -13°F
  • -13°F
  • 14°F
  • 100°F
  • 100°F

Entering Water
Temperature



  • 68°F
  • 95°F
  • 113°F
  • 113°F
  • 68°F

Leaving Water
Temperature



  • 77°F
  • 113°F
  • 131°F
  • 131°F
  • 77°F

Cooling

  • 59°F
  • 59°F
  • 117°F
  • 117°F



  • 54°F
  • 86°F
  • 86°F
  • 54°F



  • 45°F
  • 77°F
  • 77°F
  • 45°F

Heating

8°C

  • Maximum capacity (kW)
  • Nominal capacity (kW)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 7.5
  • 4.5
  • 1.02
  • 4.40

CC7S & CC7T

  • 9.1
  • 5.5
  • 2.1
  • 4.31

-15°C

  • Maximum capacity (kW)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 4.2
  • 1.52
  • 2.76

CC7S & CC7T

  • 5.1
  • 1.96
  • 2.62



  • Maximum capacity (kW)
  • Nominal capacity (kW)
  • Power (kW)
  • Efficiency

CC5S & CC5T

  • 6.2
  • 4.0
  • 1.38
  • 9.99

CC7S & CC7T

  • 7.8
  • 4.9
  • 1.78
  • 9.34

Ambient
Temperature

Heating

  • -25°C
  • -25°C
  • -10°C
  • 38°C
  • 38°C

Entering Water
Temperature



  • 20°C
  • 35°C
  • 45°C
  • 45°C
  • 20°C

Leaving Water
Temperature



  • 25°C
  • 45°C
  • 55°C
  • 55°C
  • 25°C

Cooling

  • 15°C
  • 15°C
  • 47°C
  • 47°C



  • 12°C
  • 30°C
  • 30°C
  • 12°C



  • 7°C
  • 25°C
  • 25°C
  • 7°C
