AIO Wall Mounted Pro
AIO Wall Mounted Pro units are slim and sleek.
The Wall Mounted Pro mounts high or low with a factory-supplied bracket for quick installation. Special adapters allow perpendicular mounting, use with many louver styles, or venting through an existing window—no construction required. An electronic auto-swing louver distributes airflow evenly. It features an onboard touch controller and optional ERV module, plus a powerful exhaust fan (0.45″ WC) for flexible venting and higher efficiency than the standard unit.
Airflow
In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.
- Outside air
- Recirculate air
A - Outside air intake
The 8-inch (adaptable to 6-inch) outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
B - Outside air exhaust
The 8-inch (adaptable to 6-inch) round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
C - Return air
The return air is on the top through the integrated return air grille.
D - Supply air
The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.
Installation

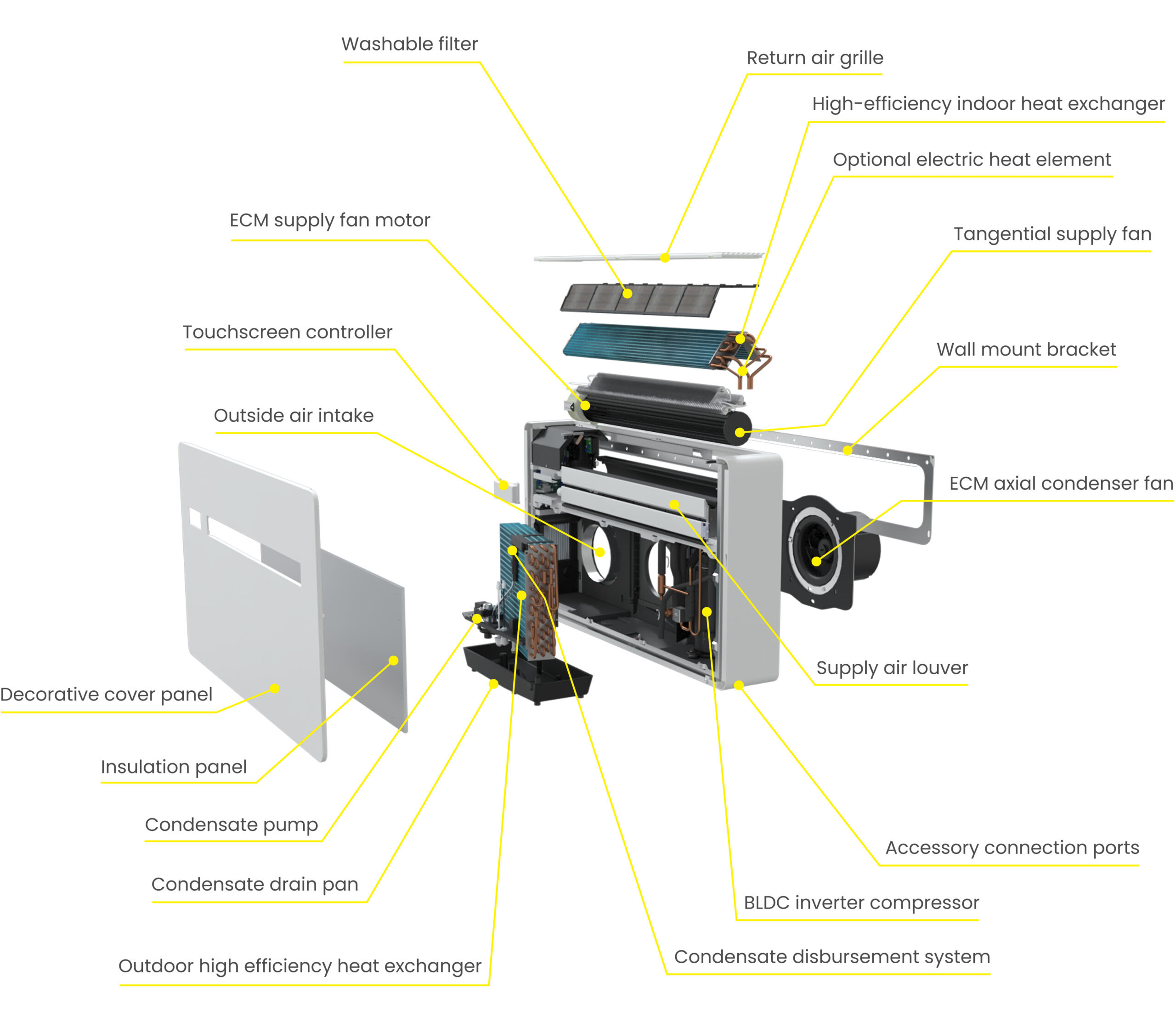

What's Inside
Key Specifications
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 15.0
- 10.4
- 3.0
- 3.3
- 1.79
- 1.05
- 0.81
- 0.21
- 8.38
- 9.9
- 11.2
- 15.7
1.9
105°F 2
- 13.5
- 9.2
- 8.2
- 3.3
- 1.79
- 1.05
- 0.91
- 0.24
- 7.6
- 8.8
- 9.0
- -
2.1
115°F 3
- 12.0
- 8.6
- 7.7
- 3.3
- 1.69
- 1.13
- 0.99
- 0.27
- 7.6
- 7.6
- 7.8
- -
2.4
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 10.1
- 8.8
- 6.7
- 3.0
- 1.03
- 0.85
- 0.59
- 0.23
- 2.9
- 3.0
- 3.3
- 3.8
- 8.6
17°F 2
- 6.4
- 5.7
- 4.8
- 3.0
- 0.97
- 0.87
- 0.62
- 0.41
- 1.93
- 1.92
- 2.27
- 2.2
- -
5°F 3
- 6.0
- 5.0
- 4.5
- 3.0
- 1.43
- 0.86
- 0.75
- 0.42
- 1.2
- 1.7
- 1.77
- 2.1
- -
0°F 4
- 5.7
- 5.7
- 5.1
- 3.0
- 1.40
- 1.04
- 0.90
- 0.43
- 1.2
- 1.6
- 1.7
- 2.0
- -
-5°F 5
- 5.3
- 5.1
- 4.9
- 3.0
- 1.32
- 1.07
- 0.93
- 0.44
- 1.2
- 1.4
- 1.6
- 2.0
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
Cooling
Heat Pump only
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (L/h)
35°C 1
- 15.0
- 10.4
- 9.0
- 3.3
- 1.79
- 1.05
- 0.81
- 0.21
- 8.38
- 9.9
- 11.2
- 15.7
1.9
41°C 2
- 13.5
- 9.2
- 8.2
- 3.3
- 1.79
- 1.05
- 0.91
- 0.24
- 7.6
- 8.8
- 9.0
- -
2.1
46°C 3
- 12.0
- 8.6
- 7.7
- 3.3
- 1.69
- 1.13
- 0.99
- 0.27
- 7.6
- 7.6
- 7.8
- -
2.4
- 1
- 2
- 3
- 35°C
- 41°C
- 48°C
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- OD: 35°C, W.B. 23.9°C
- OD: 40.6°C, W.B. 23.9°C
- OD: 46.1°C, W.B. 23.9°C
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
8°C 1
- 4.2
- 3.0
- 2.6
- 1.1
- 1.62
- 0.99
- 0.72
- 0.36
- 2.6
- 3.0
- 3.4
- 3.2
- 8.6
-8°C 2
- 2.7
- 2.5
- 2.2
- 1.1
- 1.63
- 1.08
- 0.94
- 0.37
- 1.6
- 2.3
- 2.4
- 2.6
- -
-15°C 3
- 2.0
- 1.8
- 1.6
- 0.8
- 1.63
- 1.06
- 0.92
- 0.41
- 1.2
- 1.7
- 1.8
- 2.0
- -
-17°C 4
- 1.9
- 1.8
- 1.6
- 1.0
- 1.48
- 1.10
- 0.96
- 0.44
- 1.3
- 1.6
- 1.7
- 2.2
- -
-20°C 5
- 1.8
- 1.7
- 1.5
- 1.0
- 1.57
- 1.05
- 0.92
- 0.47
- 1.1
- 1.6
- 1.6
- 2.1
- -
- 1
- 2
- 3
- 4
- 5
- 8°C
- -8°C
- -15°C
- -17°C
- -20°C
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- OD: 8.3°C, W.B. 6.1°C
- OD: -8.3°C, W.B. 1-10.6°C
- OD: -15°C, W.B. -16.1°C
- OD: -17.8°C
- OD:-20.6°C
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
