AIO Ceiling Suspended w/ERV

AIO Ceiling Suspended units are hung from the ceiling unobtrusively.

These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling Suspended units are suitable for dormitories, budget rental apartments or hotels, or anywhere a ceiling-mounted unit is desired. Ceiling Suspended units are available with or without the integrated ERV and can be vented directly outside or through ductwork.

Key Features

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after 15 seconds of inactivity
  • Auto-restart
  • Washable filters
  • Preheater for extreme cold climates

Options

  • Optional 0.9 or 1.8 kW electric heat
  • With ERV
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV - field configurable amount of fresh air

Mounting

  • Ceiling

Airflow

  • Dual 8-inch external vents
  • Available 0.45" WC for external ducting, adapters, and louvers

Included controls

  • Onboard touch controller

Optional controllers

  • WiFi app for Android and iPhoneWiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

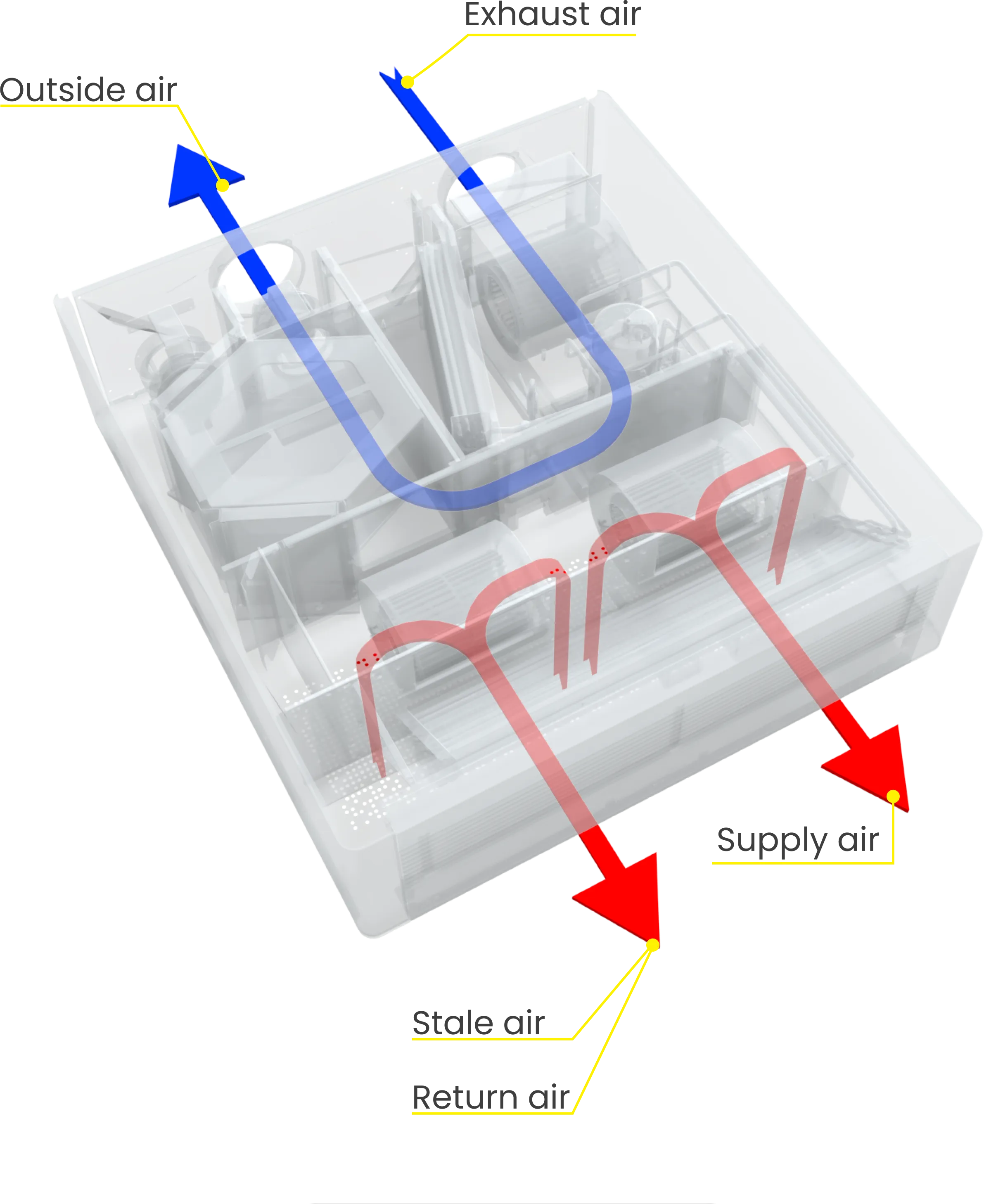

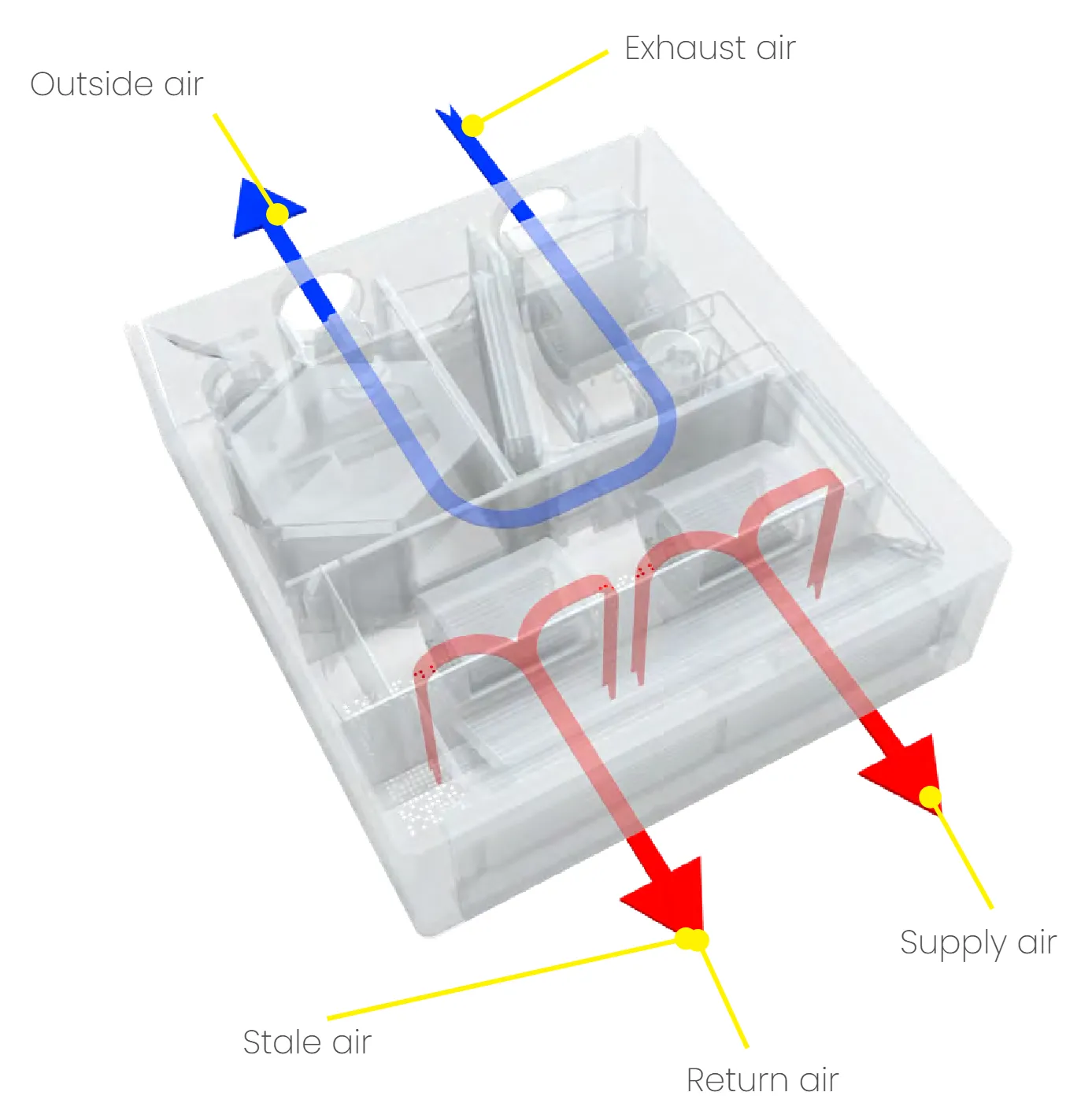

Airflow

AIO Ceiling Suspended is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Suspended to be placed anywhere in a dwelling without restrictions.

  • Outside air
  • Recirculate air

Outside air intake

The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be supported with ERV with up to 0.7” WC external static pressure (combined between intake and exhaust).

Outside air exhaust

The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be supported with ERV with up to 0.7” WC external static pressure (combined between intake and exhaust).

Stale air exhaust

The room air and exhaust air are returned to the unit through the integrated return air grille on the bottom of the unit.

Supply air

The supply air is through the front fixed louver.

Installation

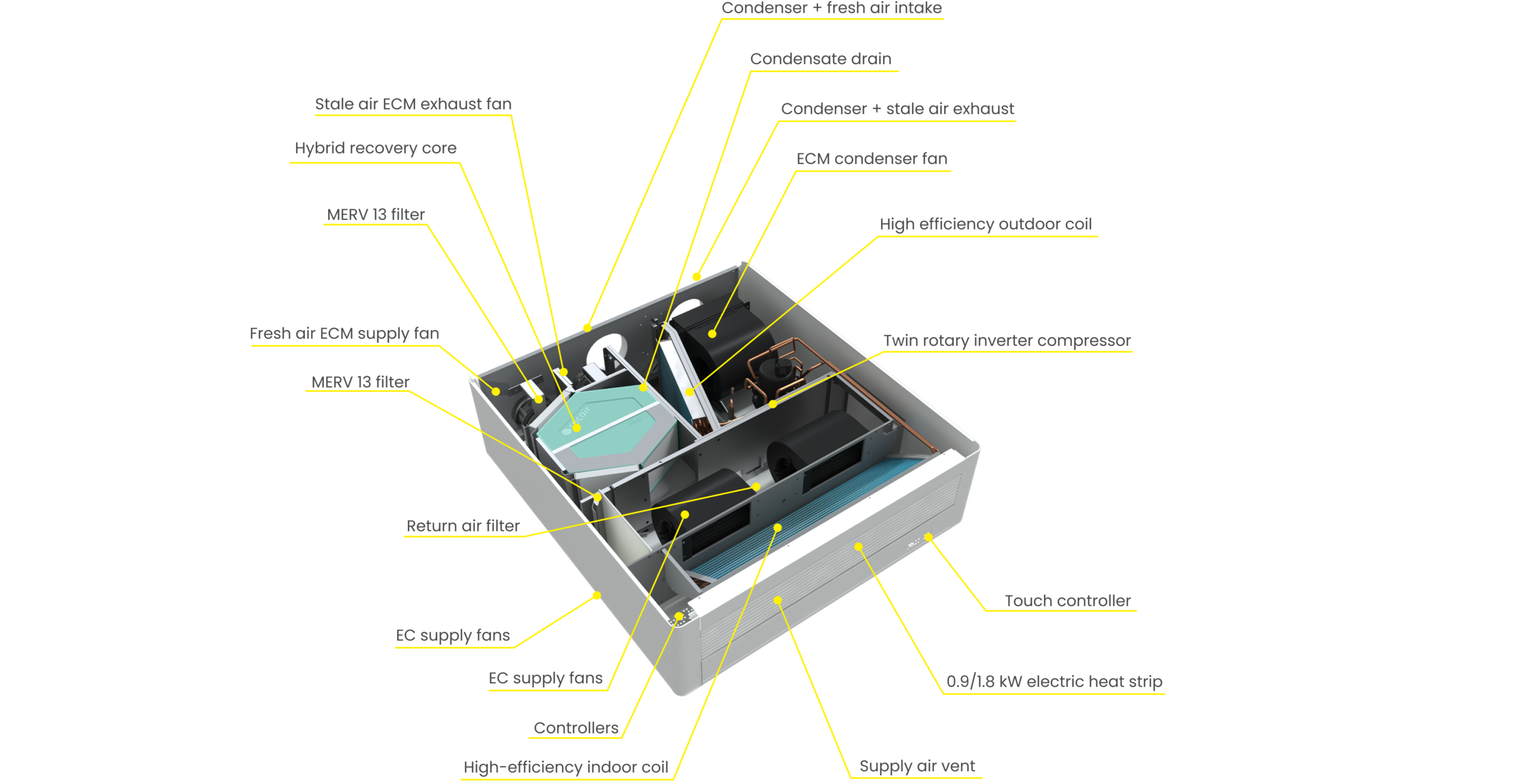

What's Inside

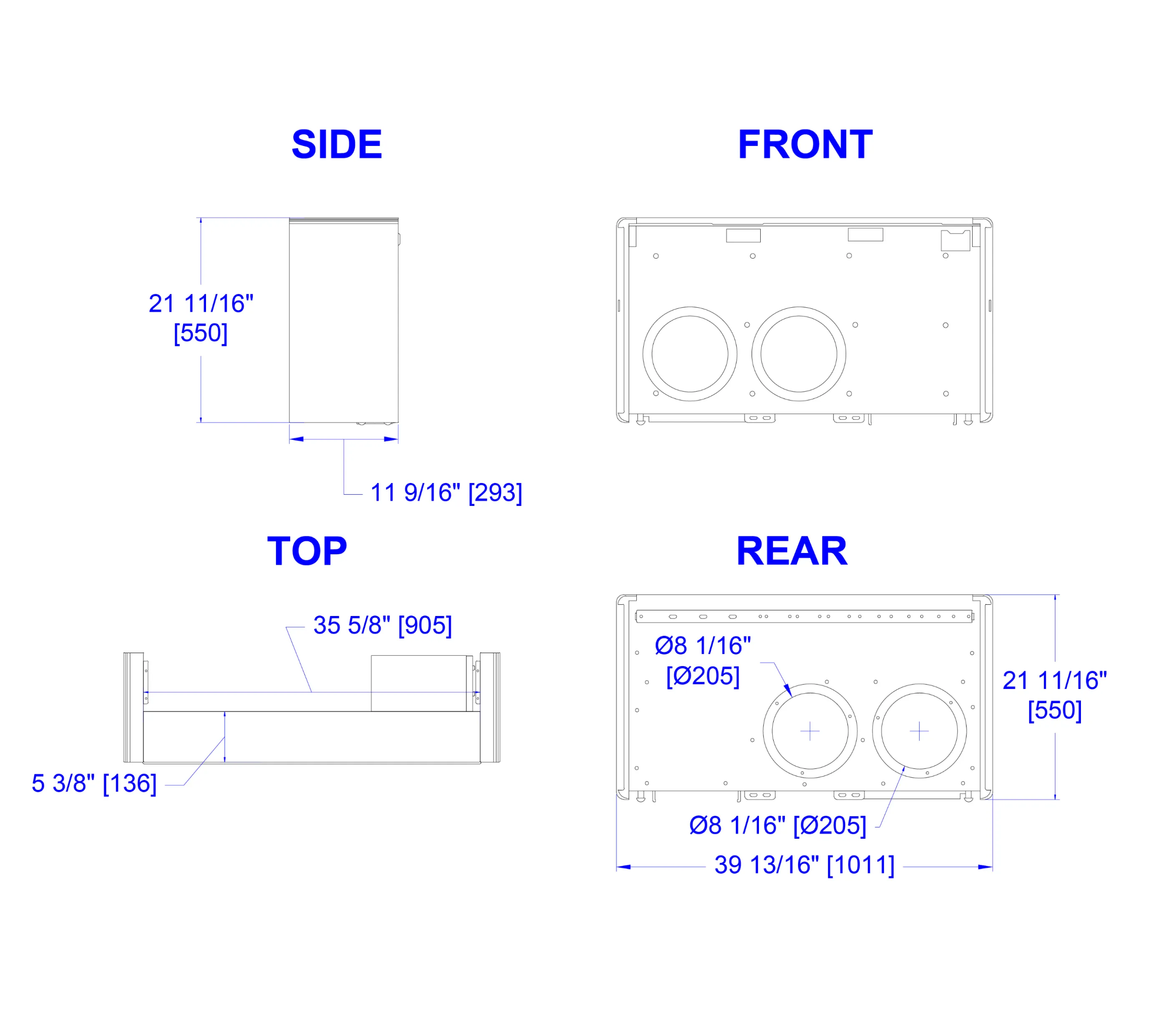

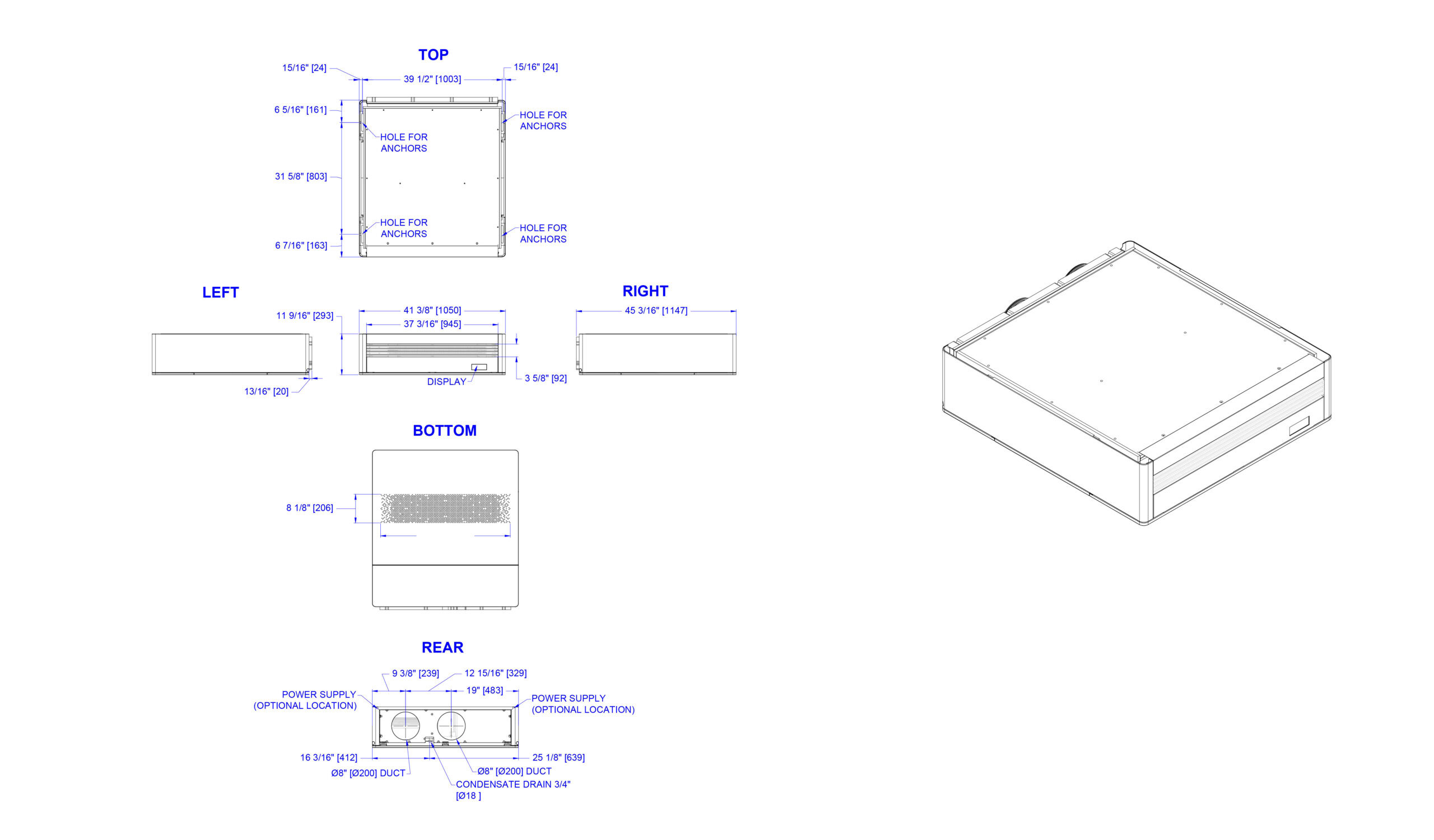

Dimensions​

Key Specifications

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 7.7
  • 3.1



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

2.0



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 9.3
  • 8.3
  • 3.3



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



5°F 3



  • 6.6
  • 6.2
  • 6.2
  • 2.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 7.7
  • 3.1



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

2.0



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 8.7
  • 7.8
  • 3.3



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



5°F 3



  • 6.6
  • 6.2
  • 6.2
  • 2.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 4.4
  • 2.8
  • 2.3
  • 0.9



  • 1.58
  • 0.95
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

0.9



41°C 2



  • 3.3
  • 2.4
  • 2.2
  • 0.9



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

1.0



46°C 3



  • 2.9
  • 2.1
  • 1.9
  • 0.9



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

1.0

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 4.1
  • 2.7
  • 2.5
  • 1.0



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



-8°C 2



  • 2.9
  • 2.7
  • 2.4
  • 1.0



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



-15°C 3



  • 1.9
  • 1.8
  • 1.8
  • 0.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



-17°C 4



  • 1.8
  • 1.7
  • 1.7
  • 0.7



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-20°C 5



  • 1.7
  • 1.6
  • 1.6
  • 0.7



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.

Cooling

Heat Pump only

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (L/h)



35°C 1



  • 4.4
  • 2.8
  • 2.3
  • 0.9



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

0.9



41°C 2



  • 3.3
  • 2.4
  • 2.2
  • 0.9



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

1.0



46°C 3



  • 2.9
  • 2.1
  • 1.9
  • 0.9



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

1.1

  • 1
  • 2
  • 3
  • 35°C
  • 41°C
  • 48°C
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • ID: 26.7°C, W.B. 19.4°C;
  • OD: 35°C, W.B. 23.9°C
  • OD: 40.6°C, W.B. 23.9°C
  • OD: 46.1°C, W.B. 23.9°C
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum(kW)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



8°C 1



  • 4.1
  • 2.7
  • 2.4
  • 1.0



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



-8°C 2



  • 2.9
  • 2.5
  • 2.3
  • 1.0



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



-15°C 3



  • 1.9
  • 1.8
  • 1.7
  • 0.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



-17°C 4



  • 1.8
  • 1.7
  • 1.7
  • 0.7



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-20°C 5



  • 1.7
  • 1.6
  • 1.6
  • 0.7



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 8°C
  • -8°C
  • -15°C
  • -17°C
  • -20°C
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • ID: 21.1°C, W.B. 15.6°C;
  • OD: 8.3°C, W.B. 6.1°C
  • OD: -8.3°C, W.B. 1-10.6°C
  • OD: -15°C, W.B. -16.1°C
  • OD: -17.8°C
  • OD:-20.6°C
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
Download Full PDF

Documentation

Data Sheet

Installation

BIM

Shroud extension
