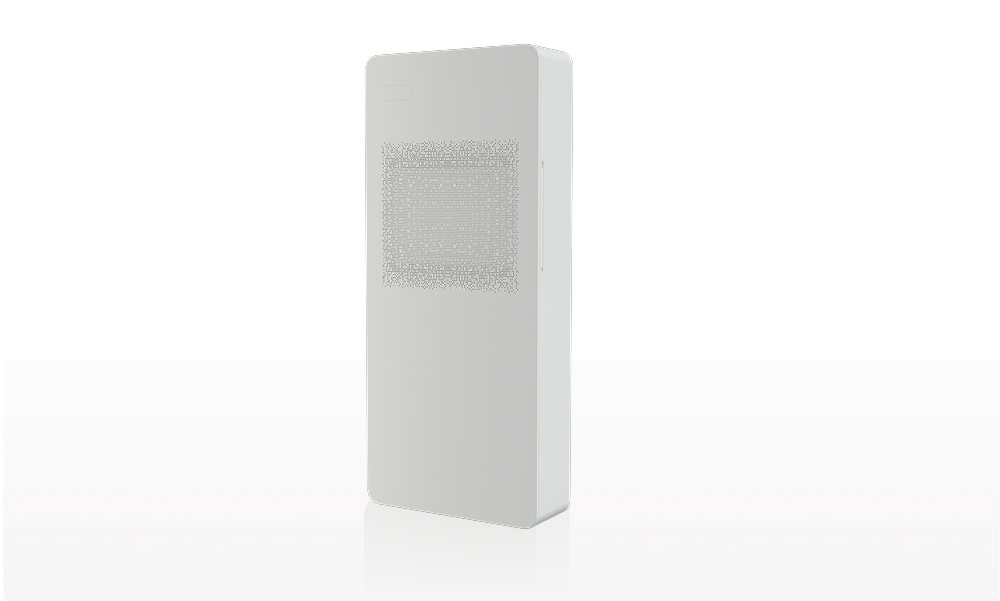

AIO Floor Standing
AIO Floor Standing units are the latest addition to our AIO product line

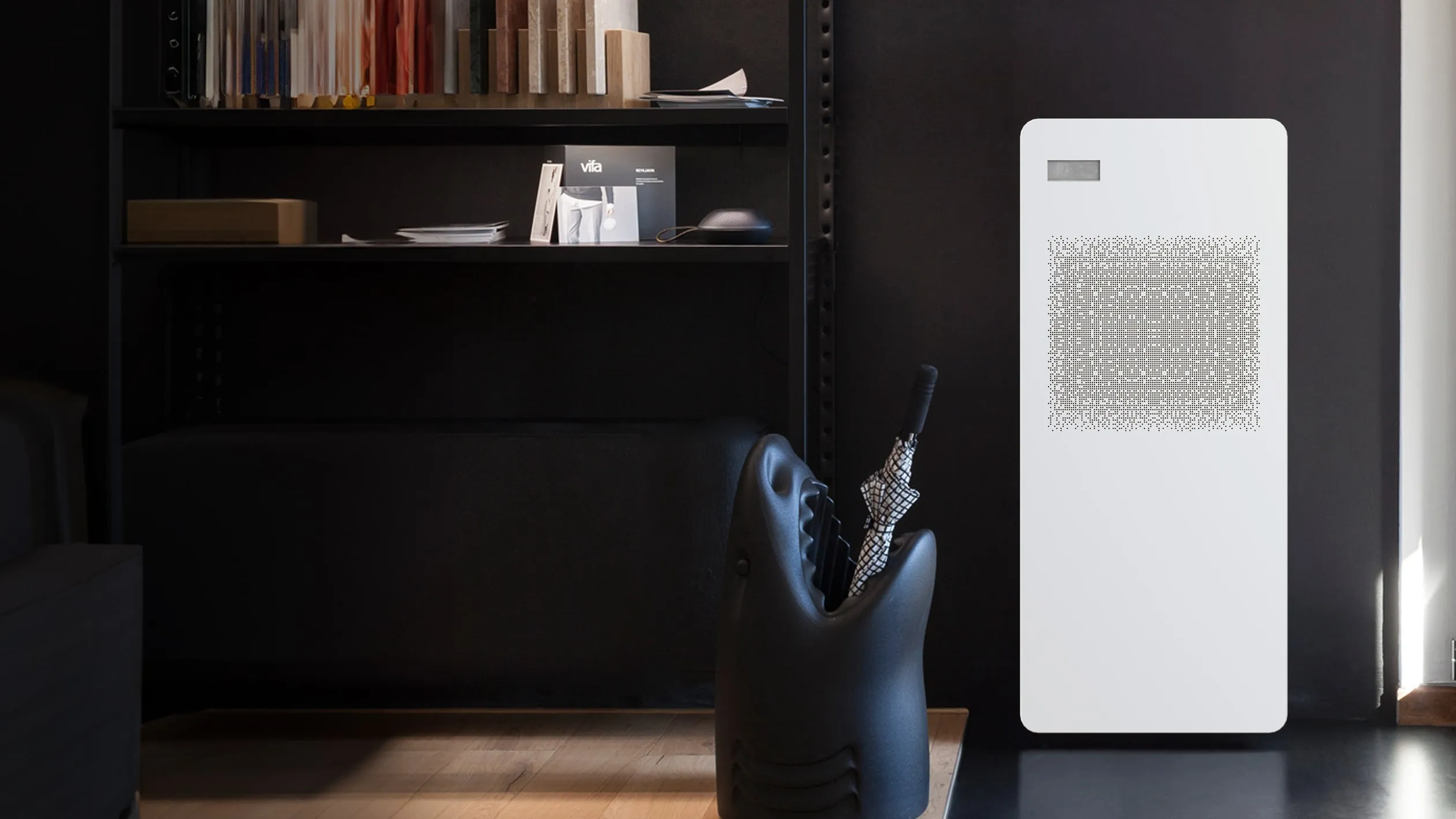

This unit fortifies our commitment to providing a complete range of products that allow you to find the right model for every type of installation. The AIO Floor Standing unit is just 19.7 inches wide and is a perfect fit between two windows or at an angle. The onboard touch controller simplifies use and installation.

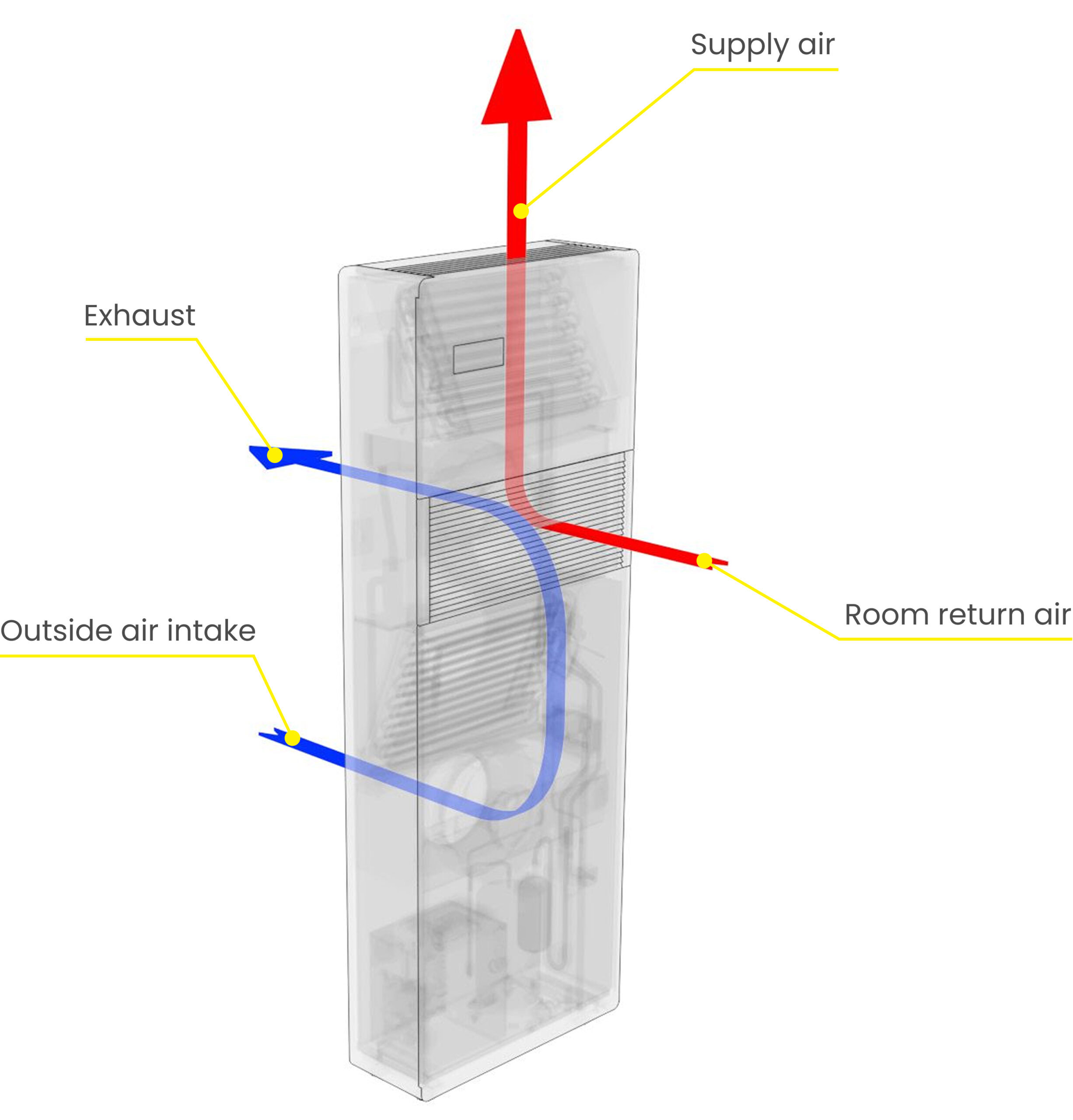

Airflow
In addition to the typical twin external vents, AIO Floor Standing can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.
- Outside air
- Recirculate air
Supply air
The supply air comes through the top with an adjustable grill.
Return air
The return air is at the third of the unit, coming through the integrated return air grill.
Outside air intake
The 8-inch outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
Outside air exhaust
The 8-inch round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

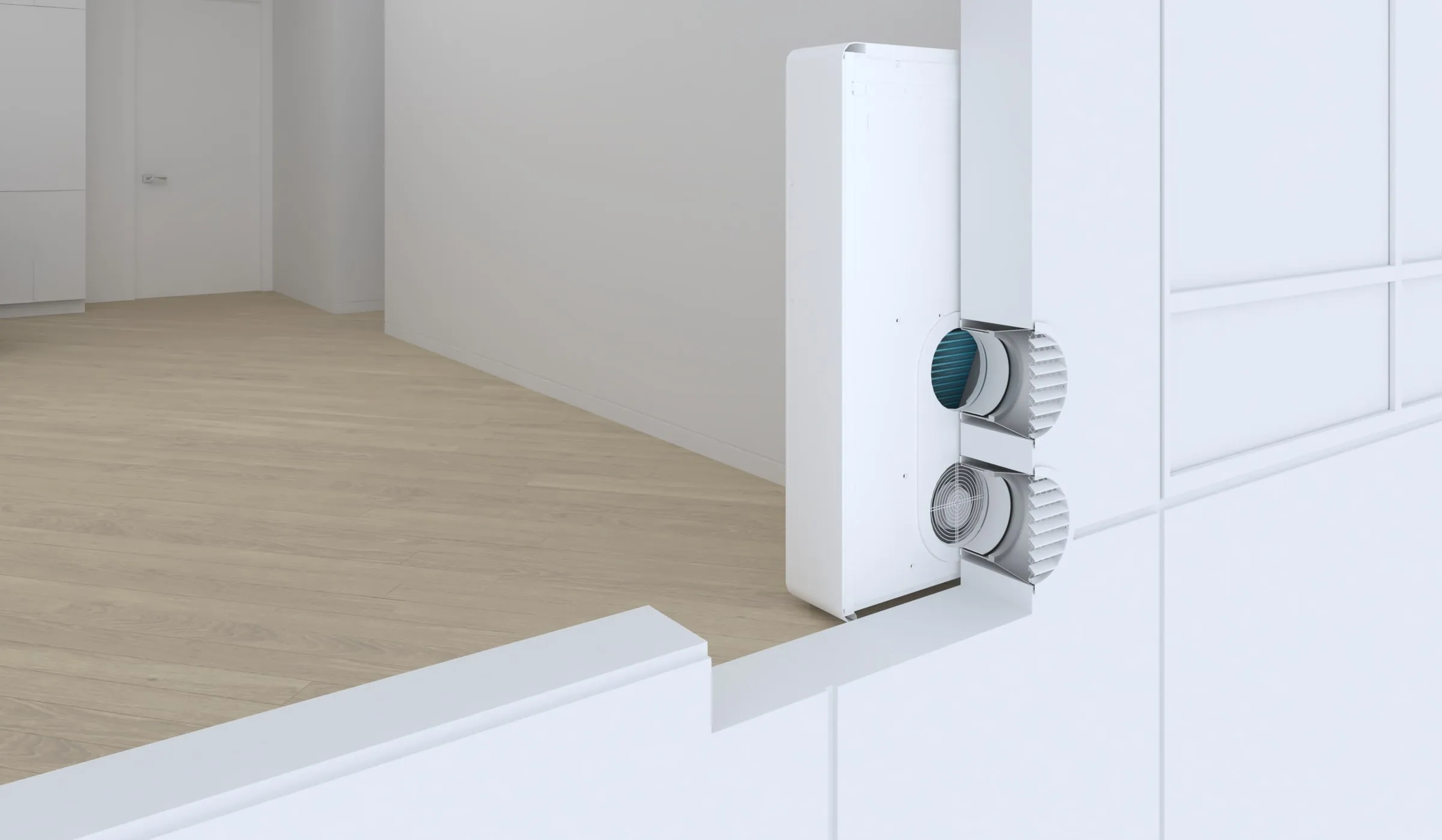

Installation

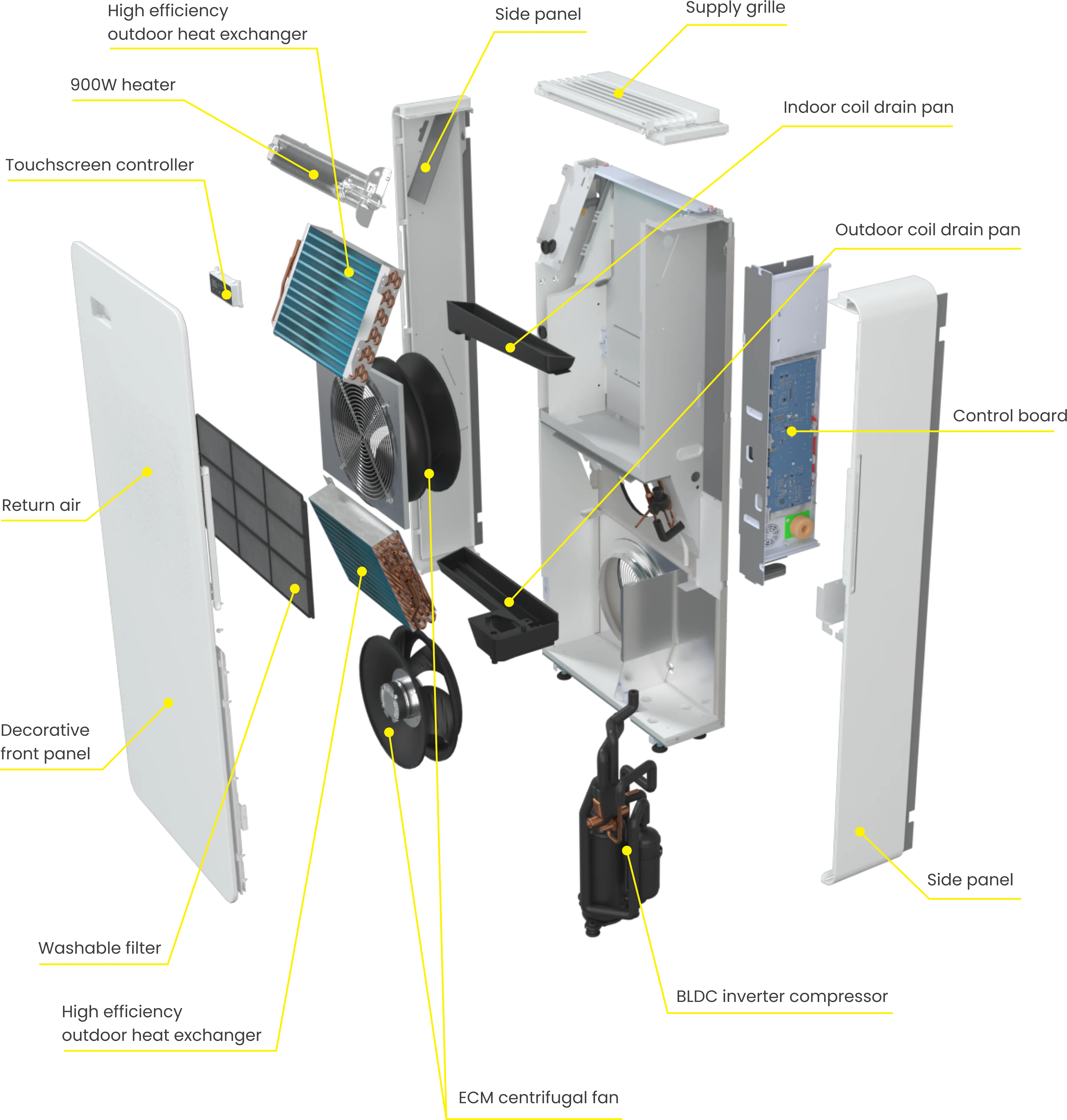

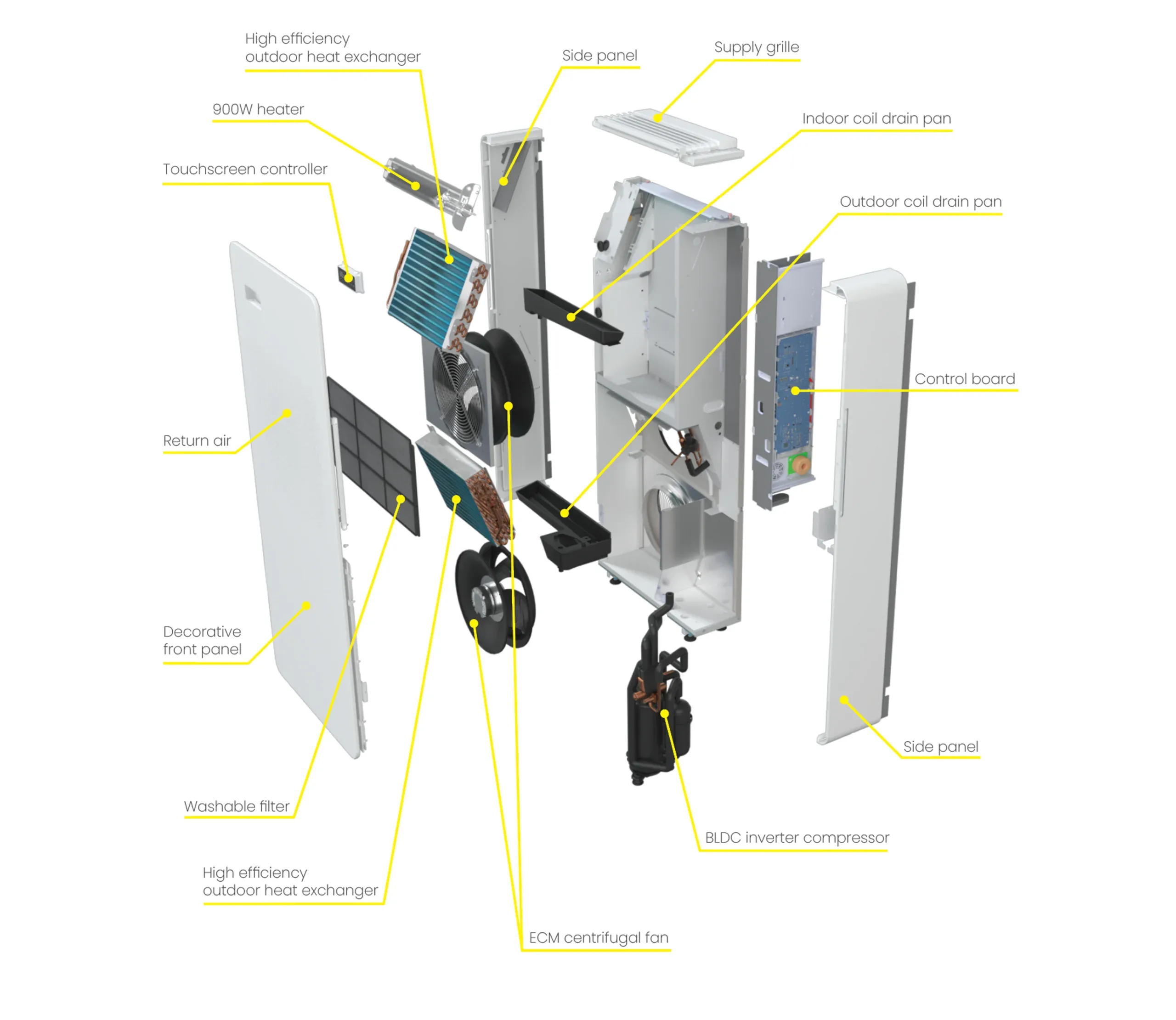

What's Inside
Dimensions
CAD Files
For CAD and DWG files, please scan or click the QR code below.
Key Specifications
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 10.2
- 9.3
- 9.3
- 3.9
- 1.25
- 1.02
- 1.02
- 0.21
- 8.17
- 9.1
- 19.1
- 13.7
1.8
105°F 2
- 8.0
- 7.6
- 7.4
- 3.3
- 1.00
- 0.94
- 0.90
- 0.24
- 8.0
- 8.1
- 8.2
- -
2.1
115°F 3
- 7.5
- 7.1
- 7.1
- 3.3
- 1.08
- 0.98
- 0.98
- 0.27
- 7.0
- 7.2
- 7.2
- -
2.3
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 10.1
- 9.2
- 9.2
- 3.0
- 1.03
- 0.85
- 0.85
- 0.23
- 2.9
- 3.2
- 3.2
- 3.5
- 7.0
17°F 2
- 6.4
- 5.5
- 5.5
- 3.0
- 1.05
- 0.81
- 0.81
- 0.4
- 1.8
- 2.0
- 2.0
- 2.2
- -
5°F 3
- 6.0
- 5.3
- 5.3
- 3.0
- 1.47
- 1.11
- 1.11
- 0.55
- 1.2
- 1.4
- 1.4
- 1.6
- -
0°F 4
- 5.7
- 5.1
- 5.1
- 3.0
- 1.52
- 1.15
- 1.15
- 0.59
- 1.1
- 1.3
- 1.3
- 1.5
- -
-5°F 5
- 5.3
- 4.9
- 4.9
- 3.0
- 1.56
- 1.20
- 1.20
- 0.36
- 1.0
- 1.2
- 1.2
- 1.4
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
Cooling
Heat Pump only
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (L/h)
35°C 1
- 3.0
- 2.7
- 2.7
- 1.1
- 1.25
- 1.02
- 1.02
- 0.21
- 8.17
- 9.1
- 9.1
- 13.7
0.9
41°C 2
- 2.3
- 2.2
- 2.2
- 1.0
- 1.00
- 0.94
- 0.90
- 0.24
- 8.0
- 8.1
- 8.2
- -
1.0
46°C 3
- 2.2
- 2.1
- 2.1
- 1.0
- 1.08
- 0.98
- 0.98
- 0.27
- 7.0
- 7.2
- 7.2
- -
1.1
- 1
- 2
- 3
- 35°C
- 41°C
- 48°C
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- ID: 26.7°C, W.B. 19.4°C;
- OD: 35°C, W.B. 23.9°C
- OD: 40.6°C, W.B. 23.9°C
- OD: 46.1°C, W.B. 23.9°C
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum(kW)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
8°C 1
- 3.0
- 2.7
- 2.7
- 0.9
- 1.03
- 0.85
- 0.85
- 0.26
- 2.9
- 3.2
- 3.2
- 3.5
- 7.0
-8°C 2
- 1.9
- 1.6
- 1.6
- 0.9
- 1.05
- 0.81
- 0.81
- 0.4
- 1.8
- 2.0
- 2.0
- 2.2
- -
-15°C 3
- 1.8
- 1.6
- 1.6
- 0.9
- 1.47
- 1.11
- 1.11
- 0.55
- 1.2
- 1.4
- 1.4
- 1.6
- -
-17°C 4
- 1.7
- 1.5
- 1.5
- 0.9
- 1.52
- 1.15
- 1.15
- 0.59
- 1.1
- 1.3
- 1.3
- 1.5
- -
-20°C 5
- 1.6
- 1.4
- 1.4
- 0.9
- 1.56
- 1.20
- 1.20
- 0.36
- 1.0
- 1.2
- 1.2
- 1.4
- -
- 1
- 2
- 3
- 4
- 5
- 8°C
- -8°C
- -15°C
- -17°C
- -20°C
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- ID: 21.1°C, W.B. 15.6°C;
- OD: 8.3°C, W.B. 6.1°C
- OD: -8.3°C, W.B. 1-10.6°C
- OD: -15°C, W.B. -16.1°C
- OD: -17.8°C
- OD:-20.6°C
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 0.9 or 1.8 kW.
