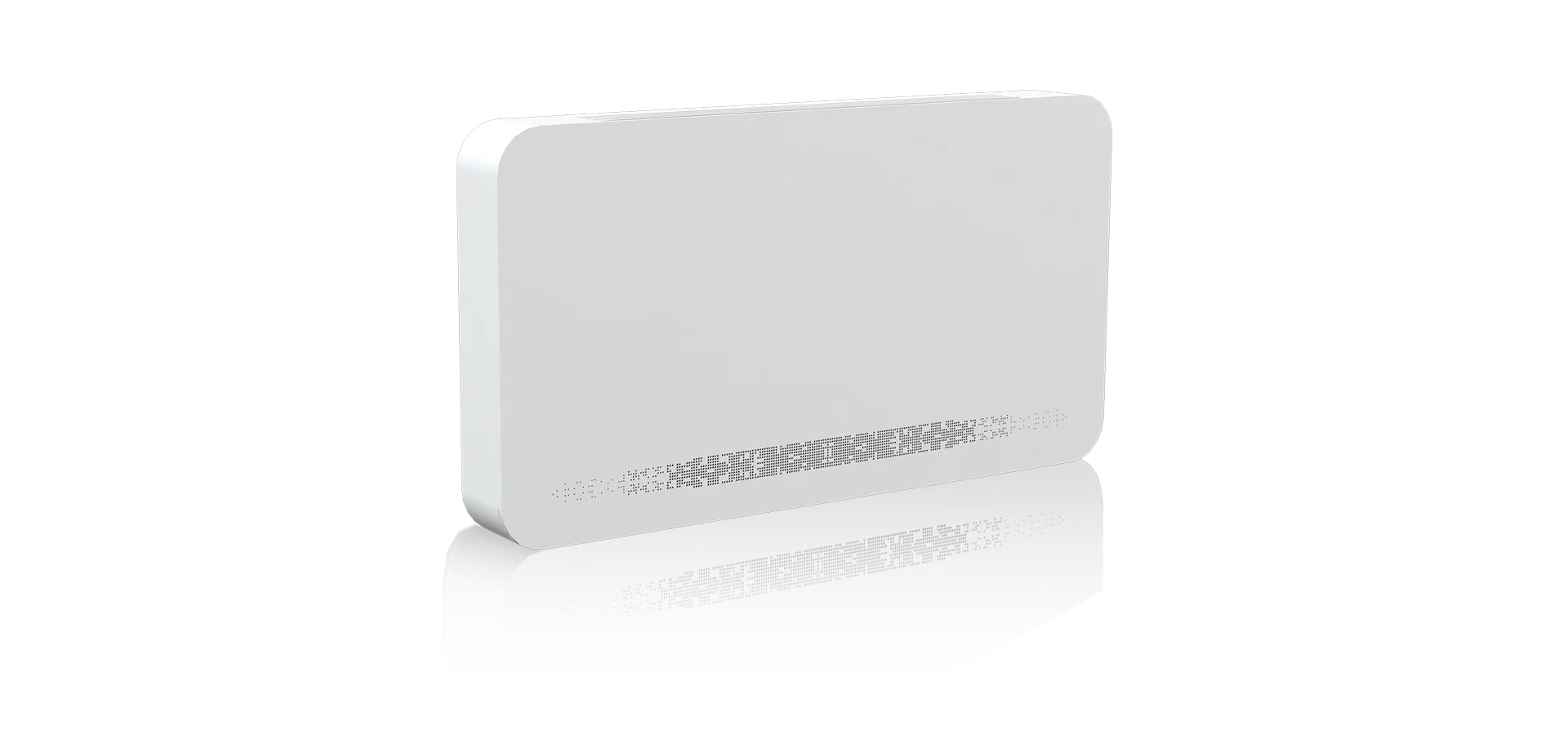

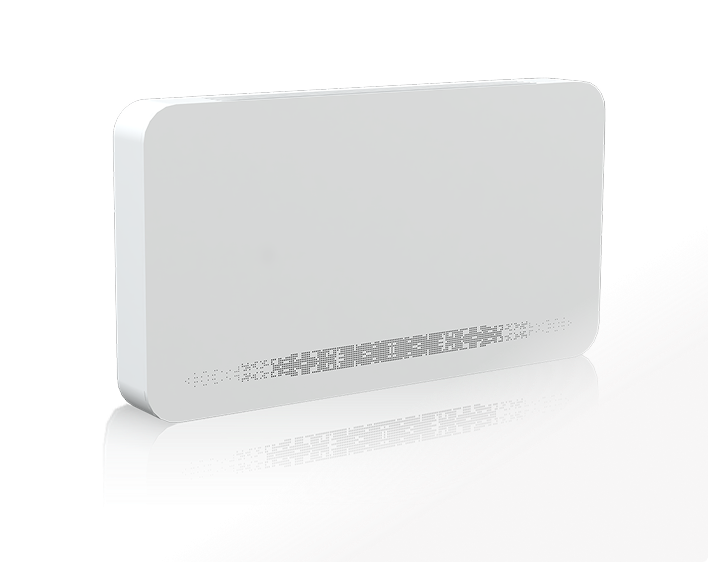

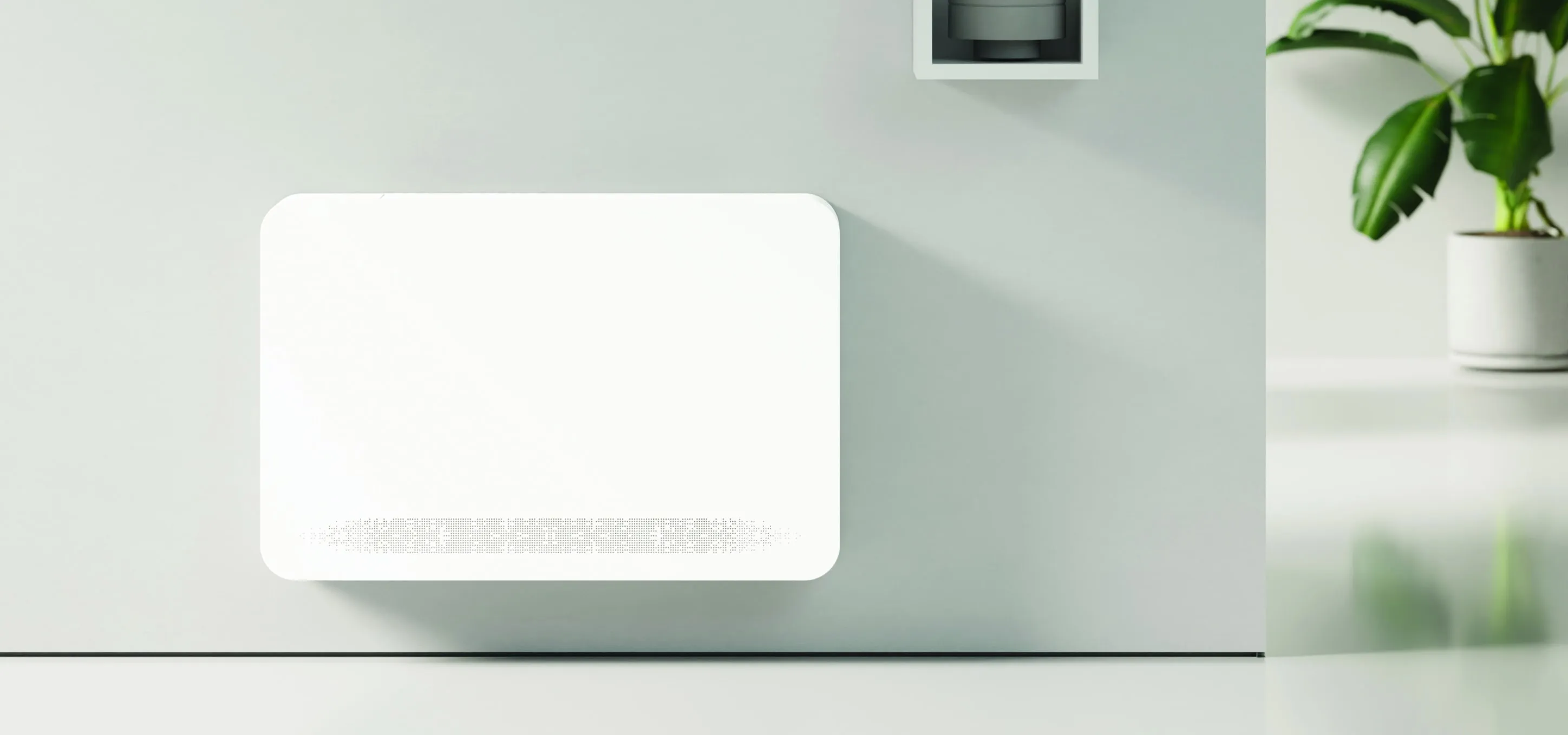

Loop Wall Mounted

Designed for low-profile, under-window applications

The Horizontal model is designed for under-window and low-profile wall applications, delivering high performance in a compact footprint.

Key Benefits

  • Variable-speed inverter technology
  • Low-profile horizontal configuration
  • Ultra-quiet fan and compressor operation
  • Onboard digital display
  • Washable, long-life filters
  • LCDI plug-in power connection

Options

  • LCDI plug-in power cord
  • Custom factory colors

Controllers

  • Wall-mounted controller
  • Mobile app

Key Specifications

Cooling¹



  • Maximum cooling capacity (kBtu/h)
  • Rated cooling capacity(kBtu/h)
  • Minimum cooling capacity (kBtu/h)
  • Rated power consumption (kW)
  • EER

400

  • 5.8
  • 5.2
  • 1.0
  • 0.30
  • 17.3

600

  • 10.2
  • 8.8
  • 2.1
  • 0.50
  • 17.7

800*

  • 14.7
  • 12.3
  • 3.4
  • 0.75
  • 16.4
  • 1
  •  W 68°F
  • A 68°F
  • * Under development, subject to change.



  • Maximum heat output (kBTU/h)
  • Rated heat output (kBTU/h)
  • Minimum heat output (kBTU/h)
  • Rated power consumption (kW)
  • COP

400

  • 7.9
  • 7.1
  • 1.4
  • 0.30
  • 6.93

600

  • 12.3
  • 10.6
  • 2.7
  • 0.5
  • 6.20

800*

  • 17.1
  • 14.3
  • 3.6
  • 0.75
  • 5.60
  • 2
  • W 86°F
  • A 80.6°F
  • * Under development, subject to change.

Cooling¹



  • Maximum heat output(kW)
  • Rated heat output (kW)
  • Minimum heat output (kW)
  • Rated power consumption (kW)
  • COP

400

  • 1.7
  • 1.5
  • 0.3
  • 0.30
  • 17.3

600

  • 3.0
  • 2.6
  • 0.6
  • 0.5
  • 17.7

800*

  • 4.3
  • 3.6
  • 1.0
  • 0.75
  • 16.4
  • 2
  • W 20°C
  • A 20°C
  • * Under development, subject to change.



  • Maximum heat output(kW)
  • Rated heat output (kW)
  • Minimum heat output (kW)
  • Rated power consumption (kW)
  • COP

400

  • 2.3
  • 2.1
  • 0.4
  • 0.30
  • 6.93

600

  • 3.6
  • 3.1
  • 0.8
  • 0.5
  • 6.20

800*

  • 5.0
  • 4.2
  • 1.1
  • 0.75
  • 5.60
  • 2
  • W 30°C
  • A 27°C
  • * Under development, subject to change.
Download Full PDF
