OSMO Recessed High WallPlaster Frame

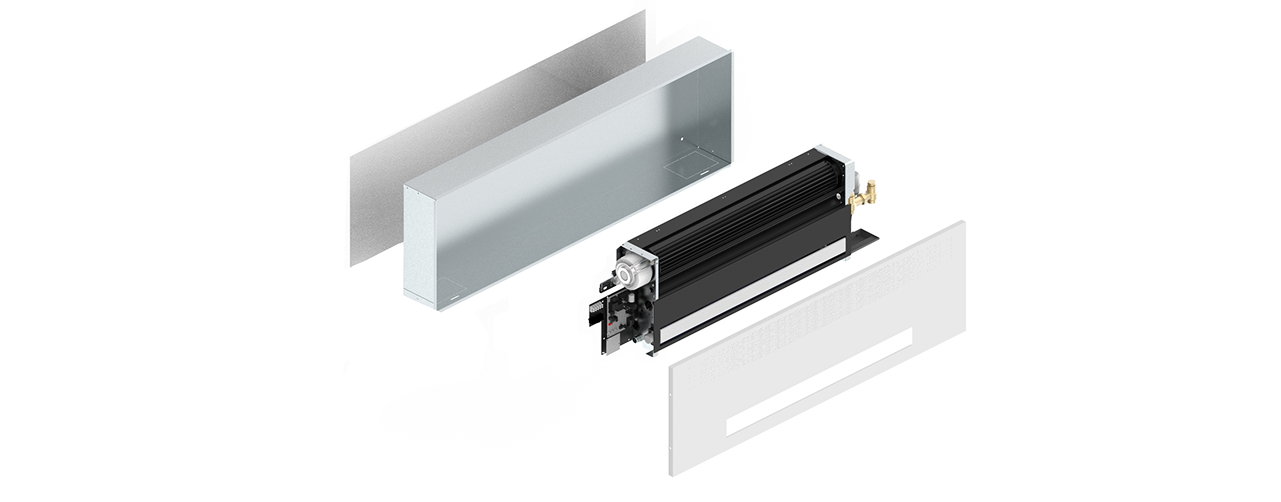

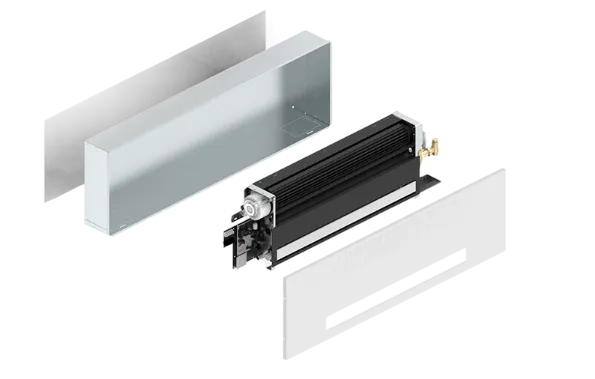

OSMO Recessed High Wall Plaster Frame unit render

Precision fit, minimal profile

The OSMO Recessed High Wall Plaster Frame fan coil offers the highest level of fit and finish for a high wall fan coil. The plaster frame ensures only the front panel is visible, providing a clean, slim, paintable design ideal for discerning clients and demanding architects. A super quiet tangential fan minimizes vibration while optimizing performance.

Compatible with low-temperature generators such as heat pumps, condensing boilers, and solar-integrated systems.

Key Features

  • Fully recessed in the wall
  • Paintable all-metal front panel
  • Auto-restart
  • Washable filters

Options

  • LCDI power cord
  • Custom factory colors

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Connection

  • 2‑pipe
  • Can connect to low temperature 4 pipe systems with optional 6‑way valve
  • Available in 1/2 or 3/4 connections

Mounting

  • Recessed high wall mount

Airflow

  • Supply air managed by electronically controlled louver on the front
  • Return air is on upper front

Controller Options

  • Wireless remote
  • WiFi app for Android and iPhone
  • Centralized control
  • Wall Mounted touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

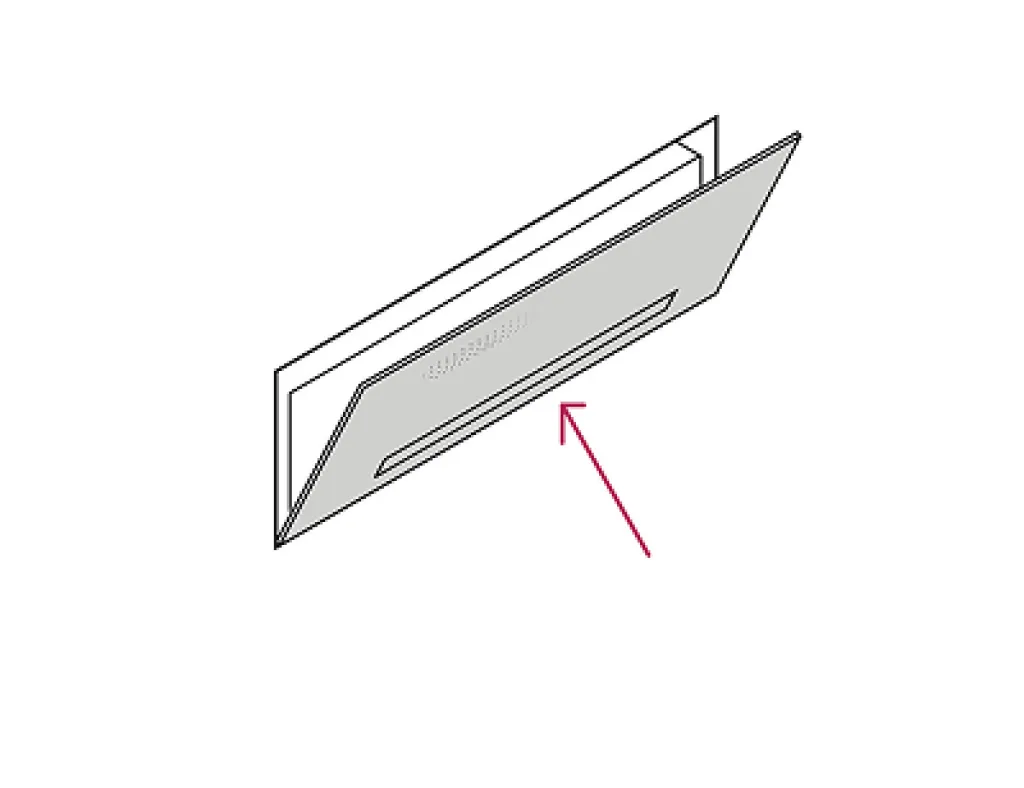

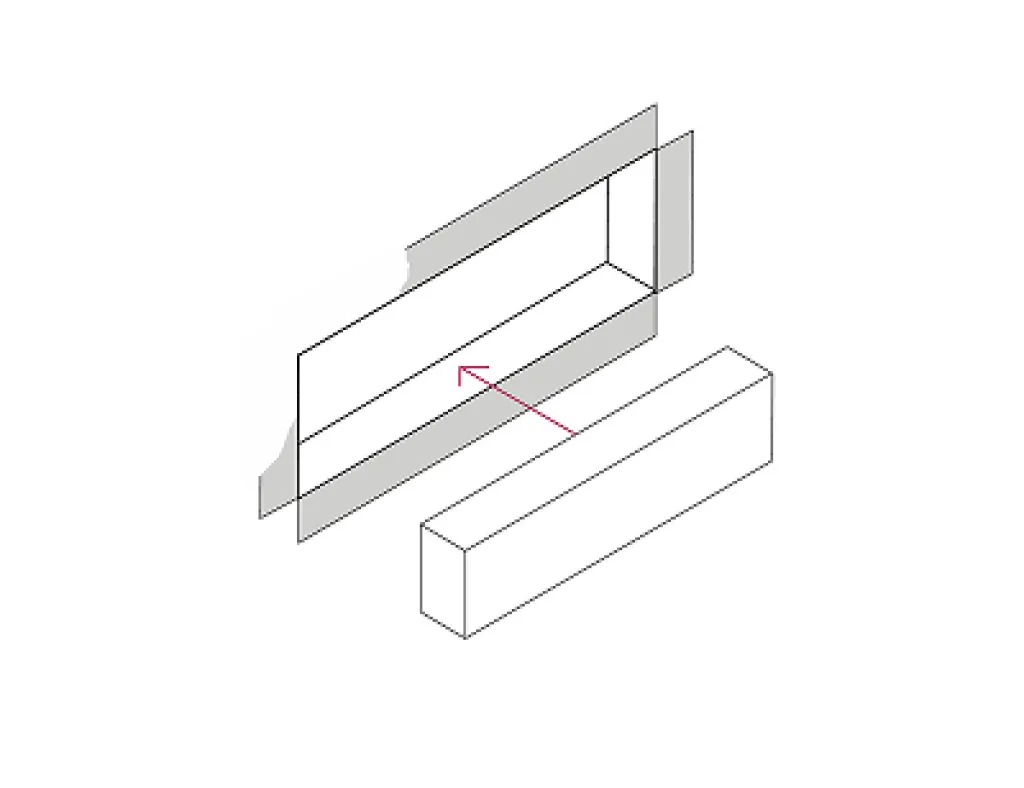

Installation

Dimensions

Showing RHP4 · Unit length 28.5 inUnit length 725 mm

Width
28.5in725mm
Height
14.8in376mm
Depth
5.0in126mm
Weight
30.8lb13.9kg
Water connections
1/2 or 3/4in12.7 or 19mm

Performance at a glance

Total cooling · 80/67°FTotal cooling · 27/19°C
4.13MBh1.2kW
Sensible cooling
3.45MBh1.0kW
Heating · 113°F waterHeating · 45°C water
5.15MBh1.5kW
Airflow · high
134CFM228m³/h

Technical documents

Full specifications, CAD and DWG files for design and installation planning.
