OKKI AI-Driven Jets
OKKI’s AI-Driven Jets are a proprietary indoor airflow innovation that connects to an outdoor heat pump and can integrate with most VRF systems using standard AHU kits.
This allows OKKI to deliver its unique, stratification-free performance while fitting seamlessly into existing VRF architectures.
Using Smart Jet™ airflow technology, OKKI delivers conditioned air directly to the occupied zone, eliminating stratification and reducing energy waste.

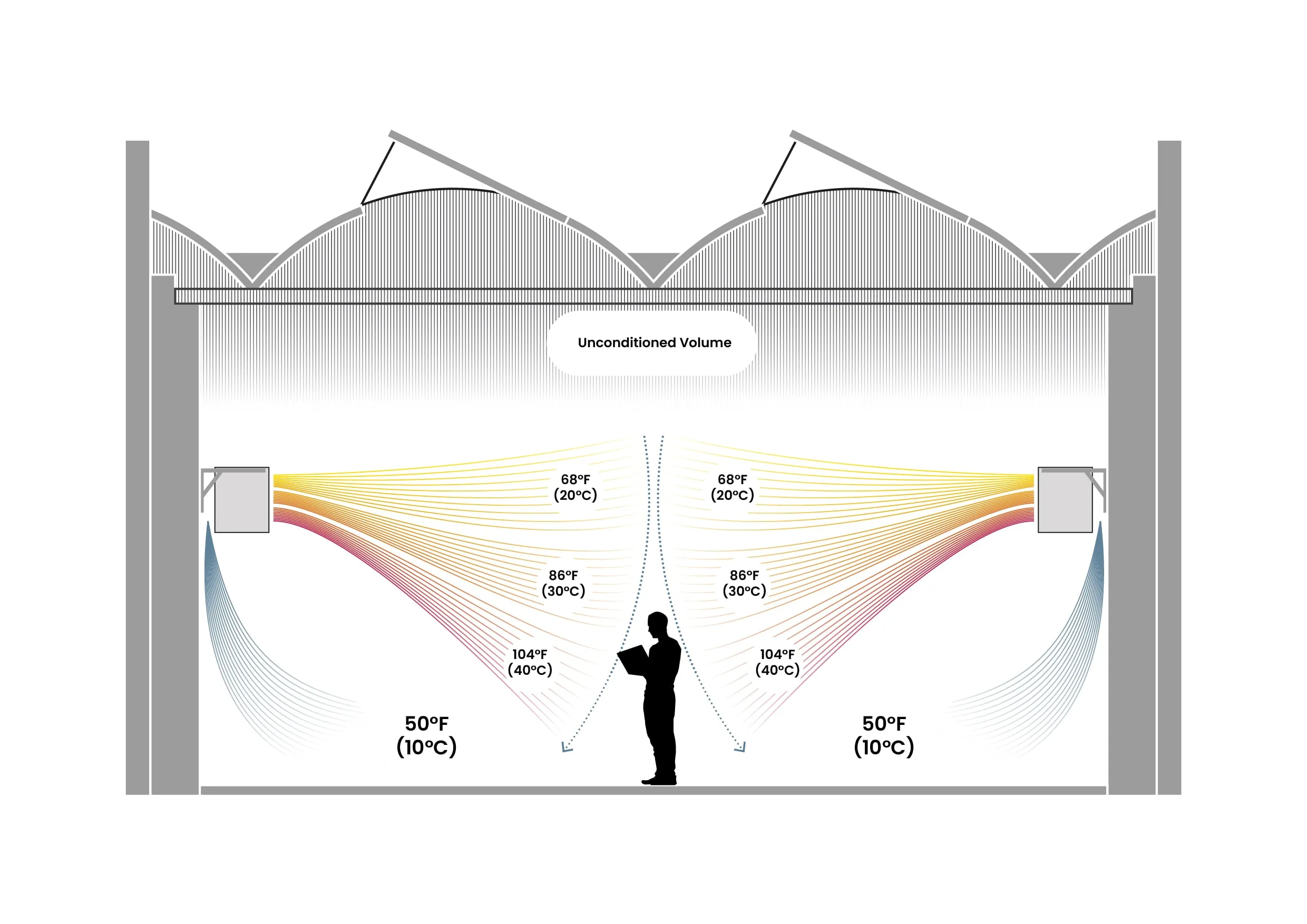

Heating - Preheating and rapid heating

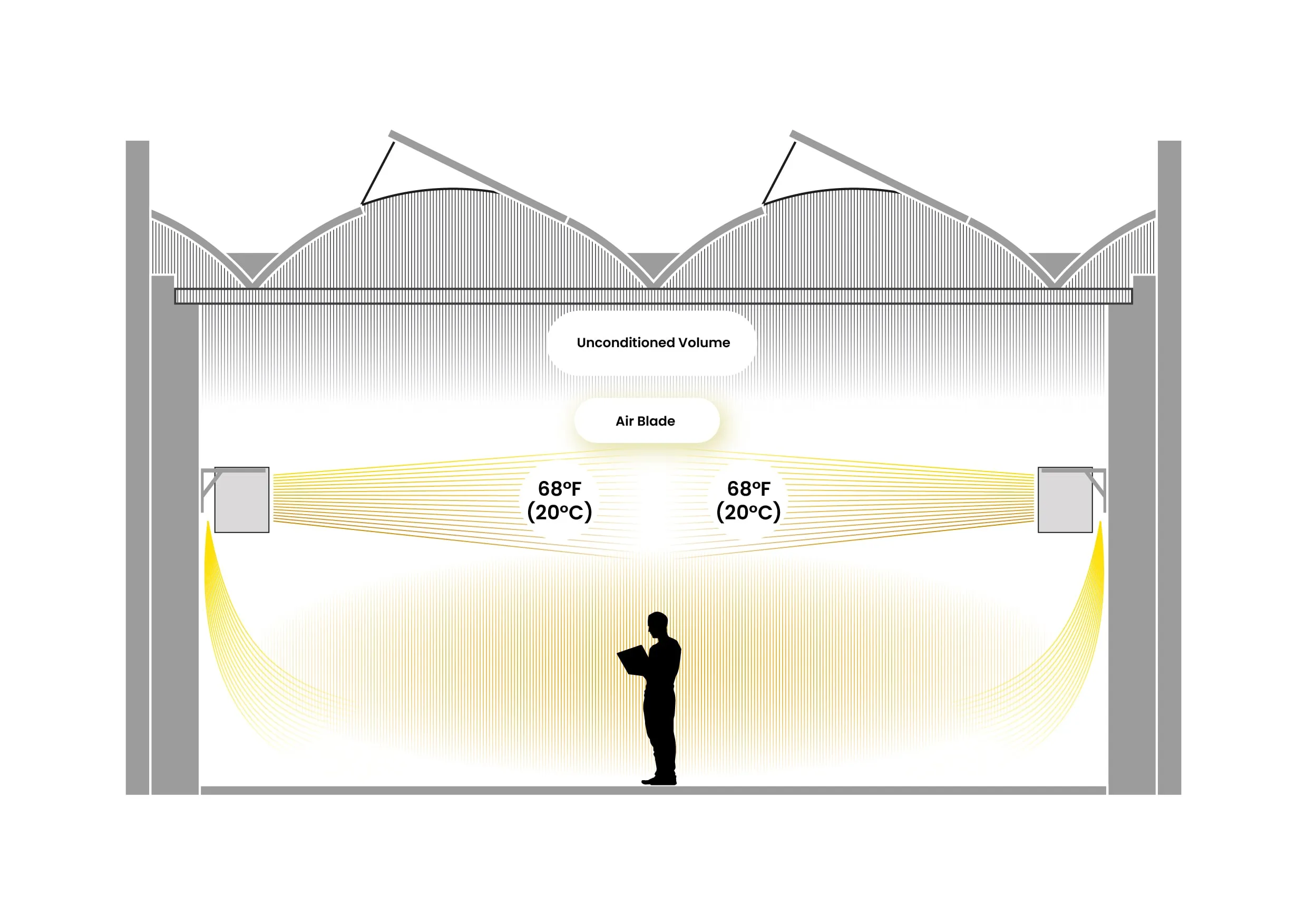

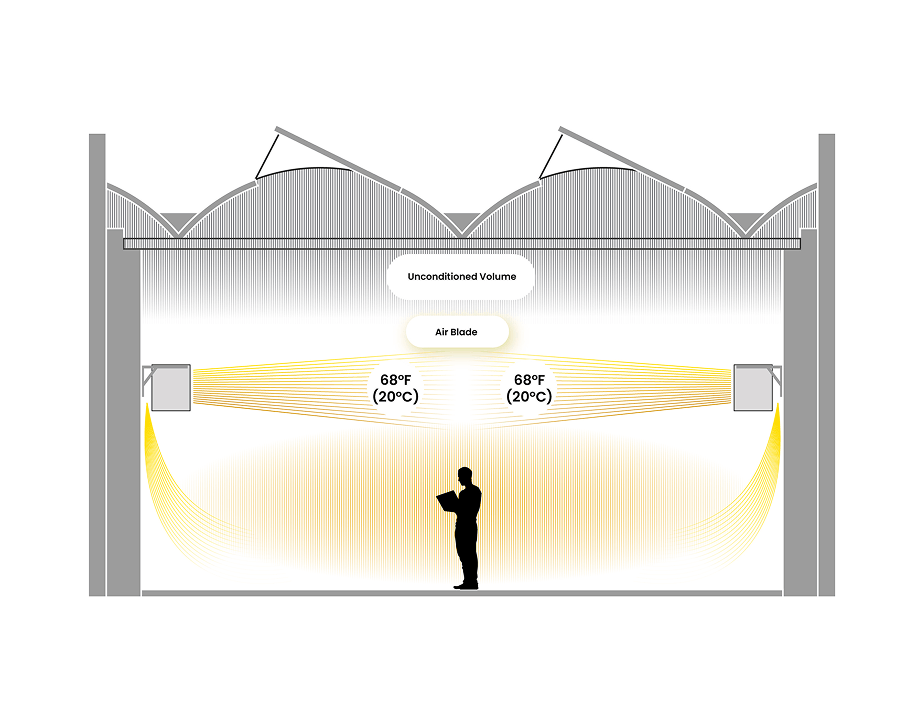

Heating - Maintenance with air blade effect

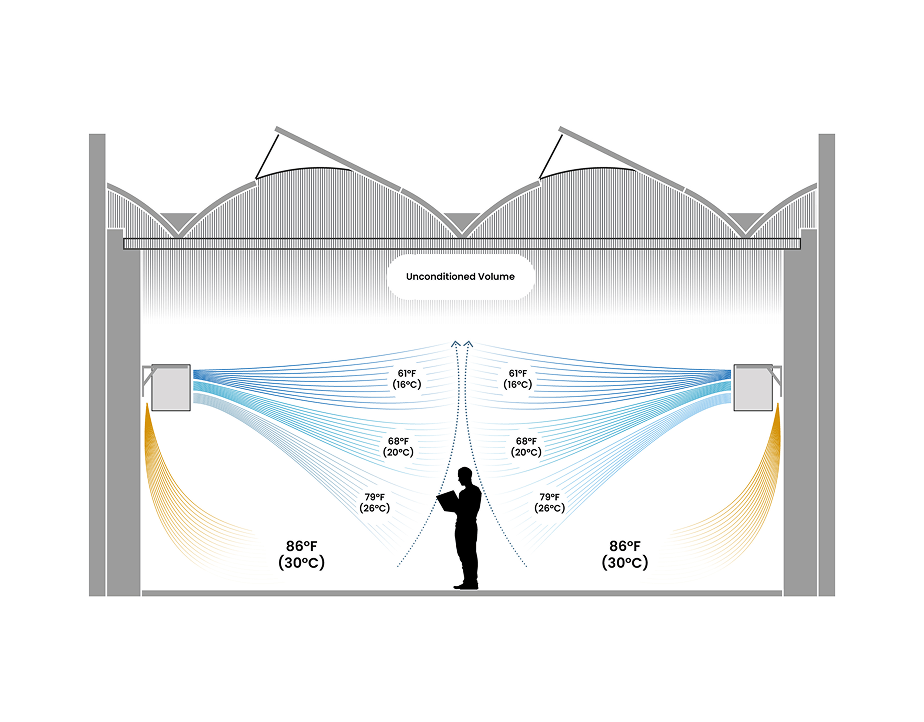

Cooling - Pre-cooling and rapid cooling

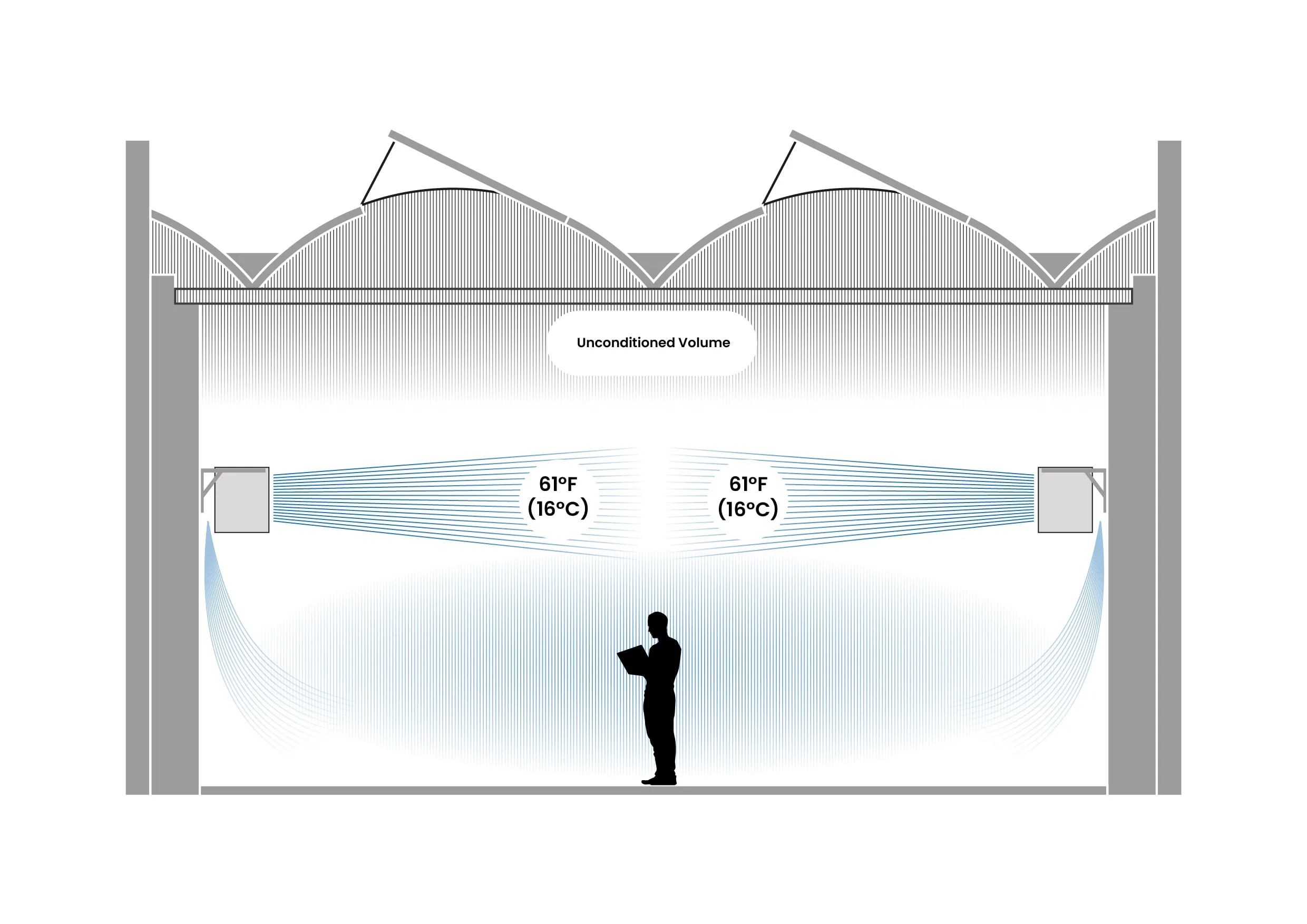

Cooling - Maintenance
Using Smart Jet™ airflow technology, OKKI delivers conditioned air directly to the occupied zone, eliminating stratification and reducing energy waste.
Heating - Preheating and rapid heating
Heating - Maintenance with air blade effect

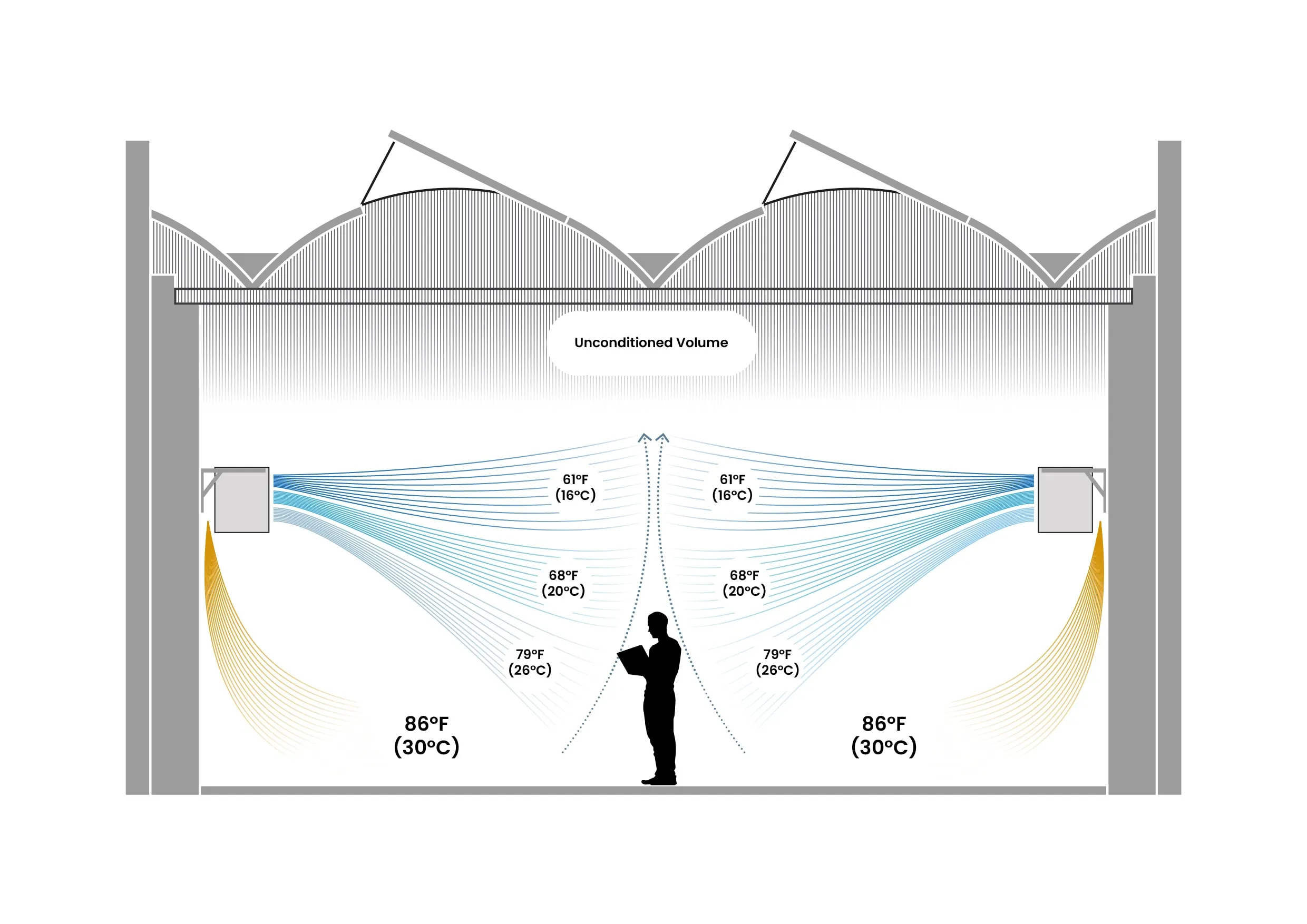

Cooling - Pre-cooling and rapid cooling

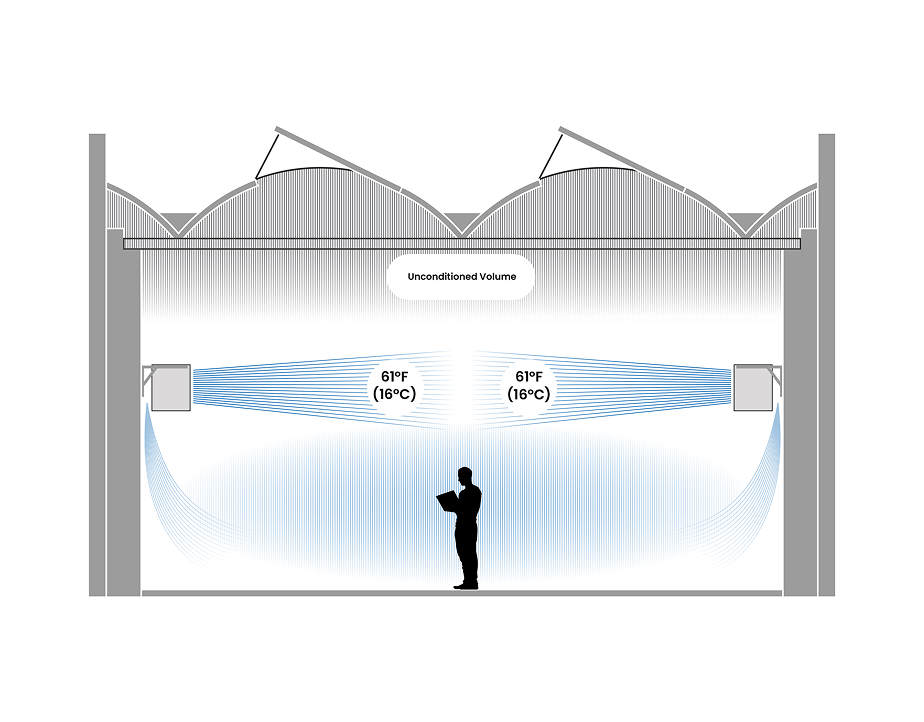

Cooling - Maintenance

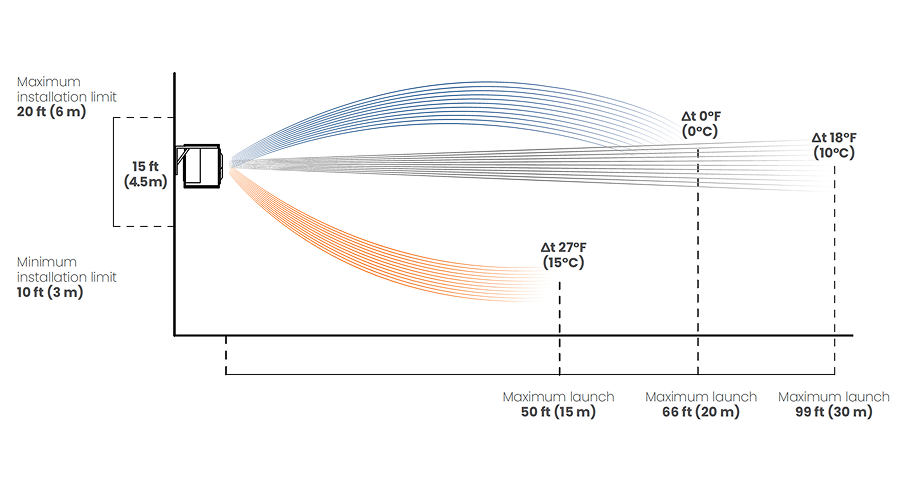

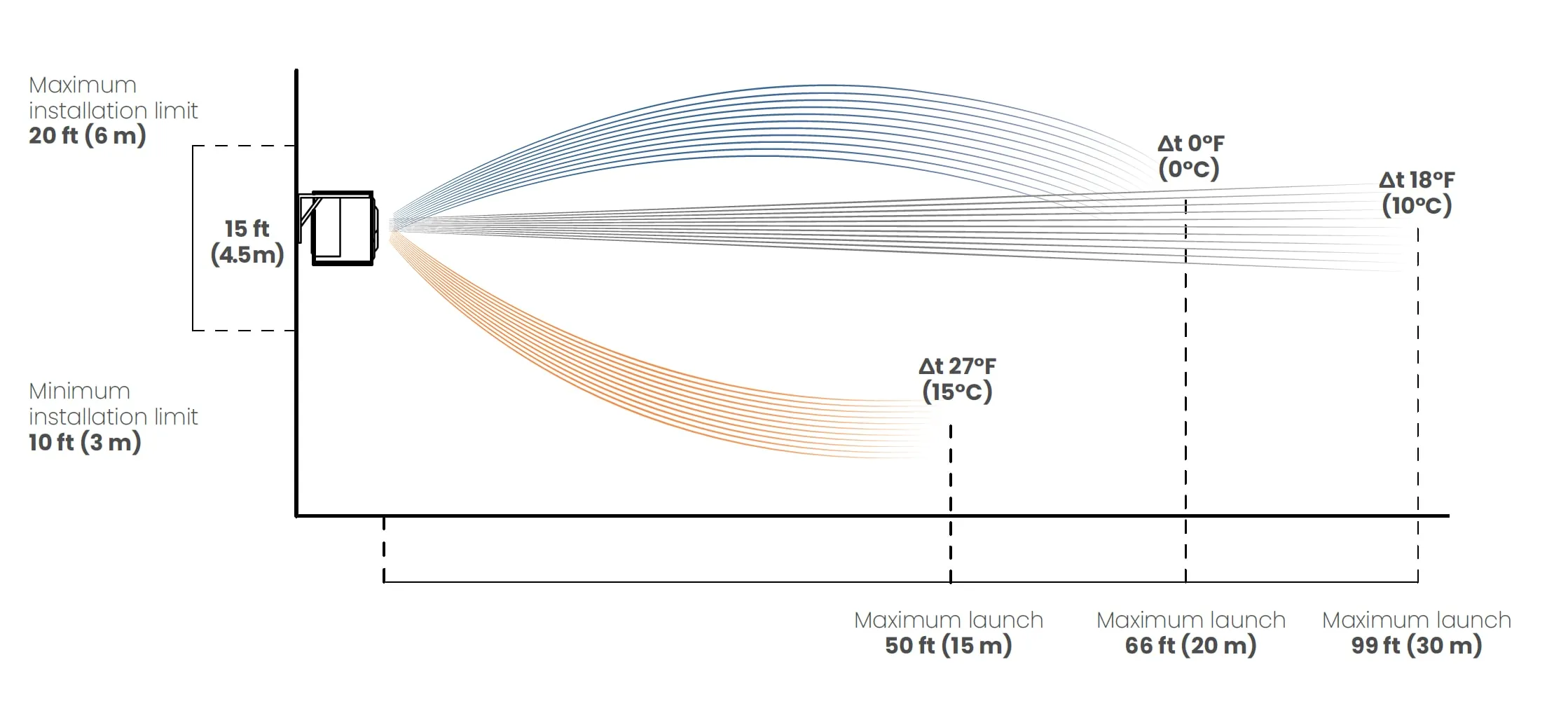

Indoor Unit Air Throws
In large-volume buildings, hot air rises and cold air settles near the floor, creating
Flexible Install Configurations

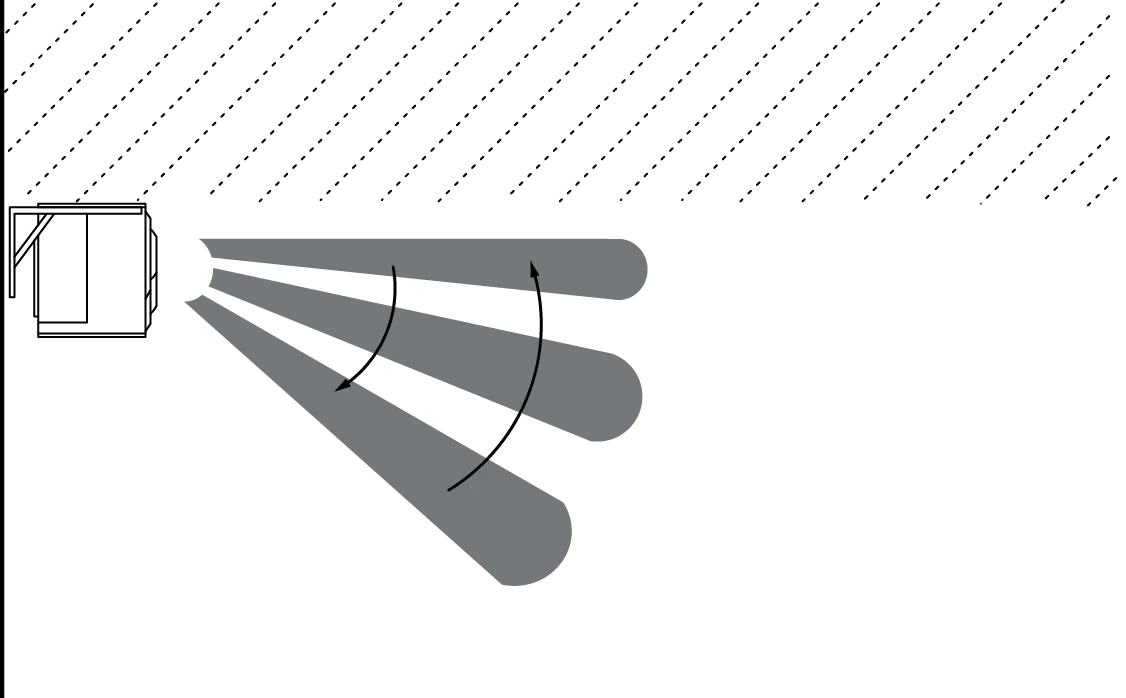

Smart Jet
Fully motorized nozzles

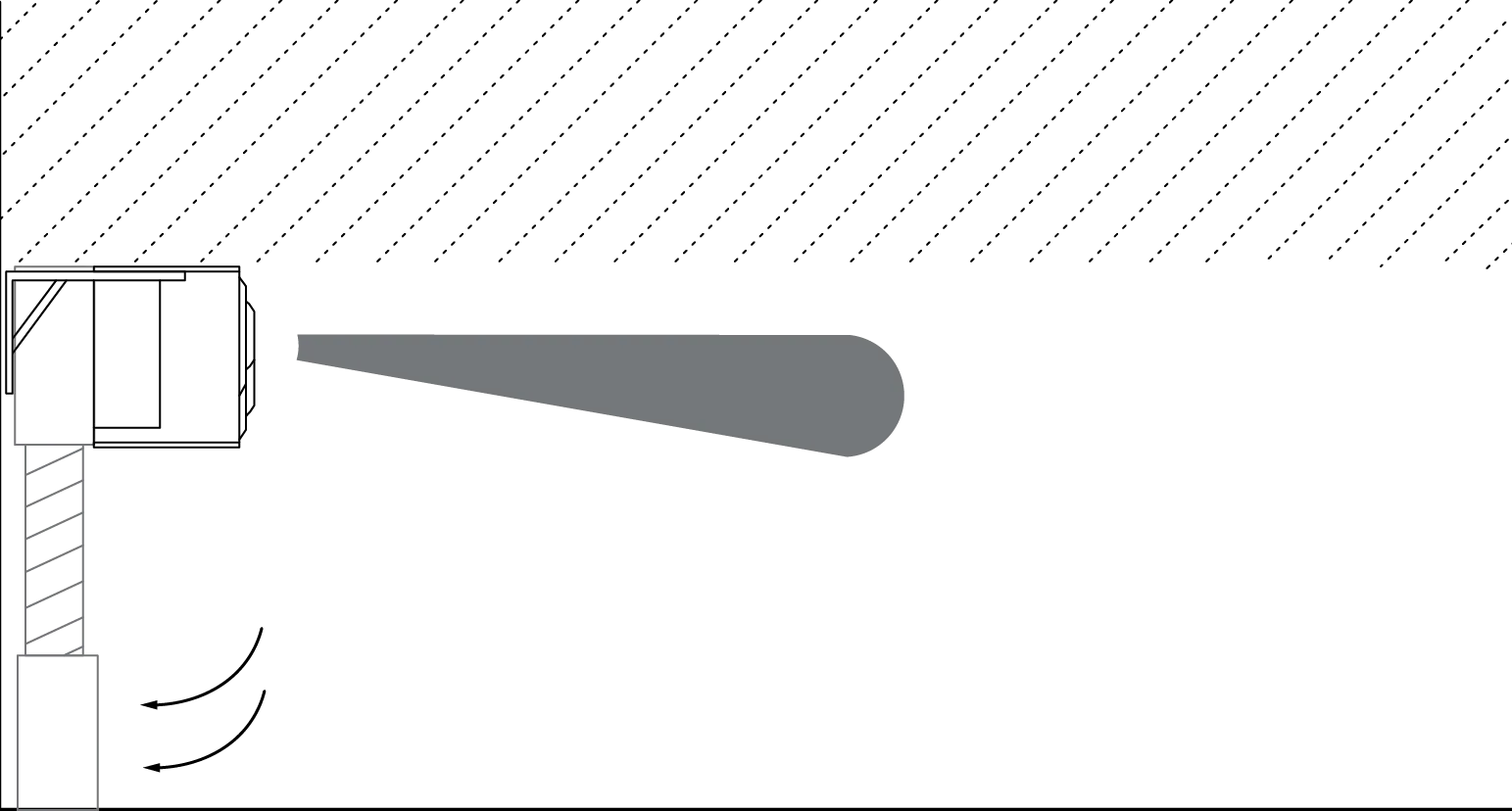

Manual Jet
Adjustable but non-motorized

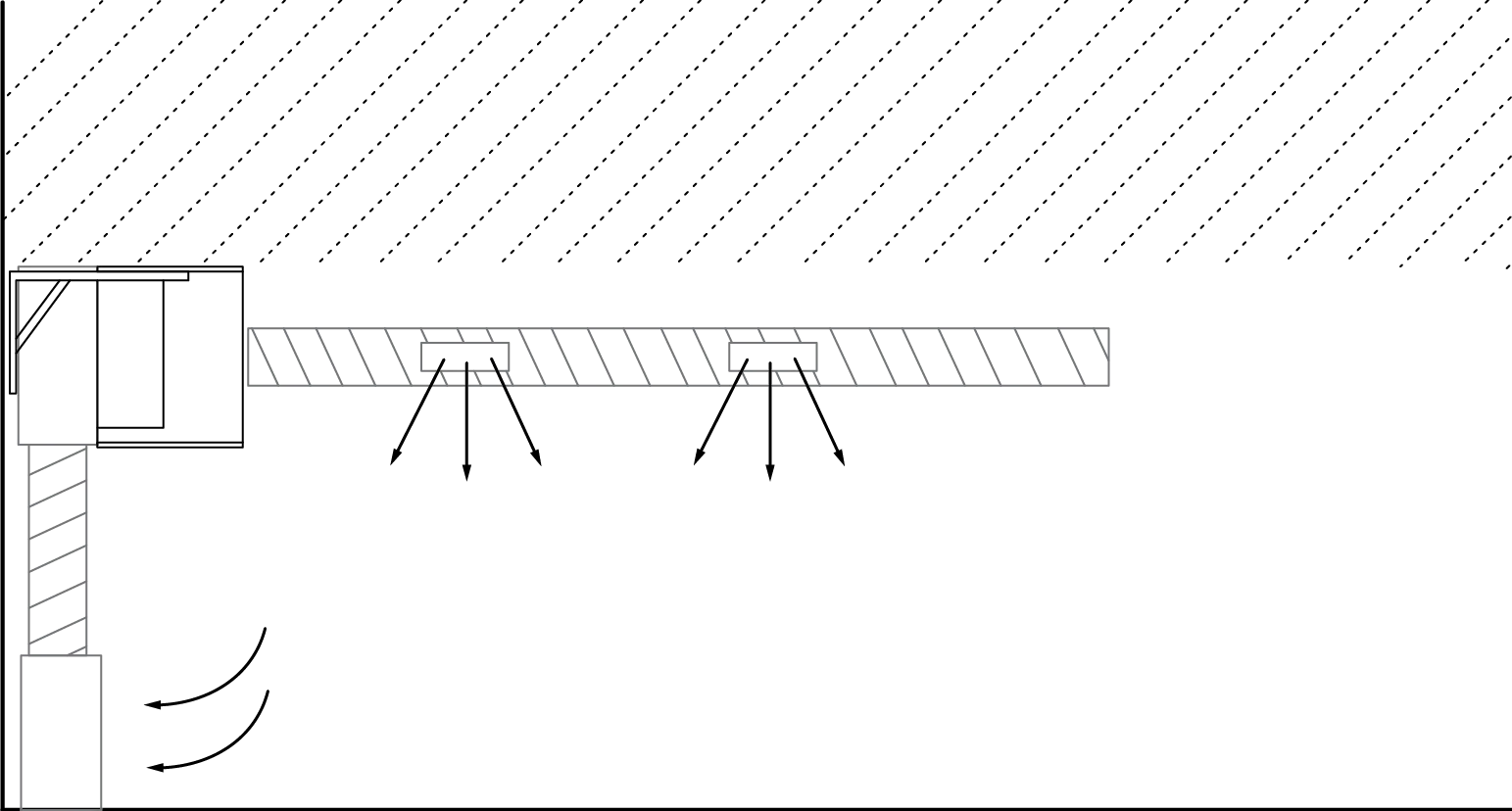

Ducted
Supply via ducts and grilles

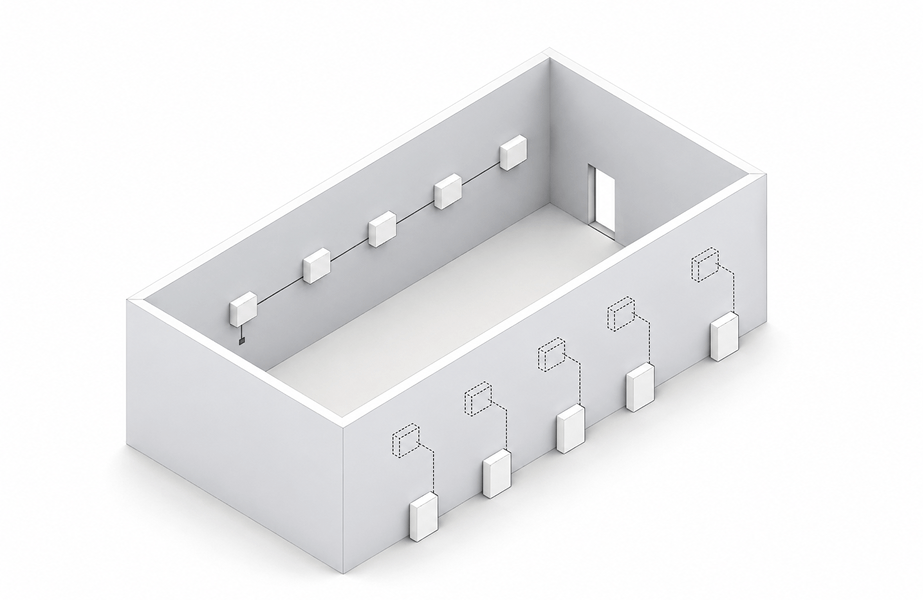

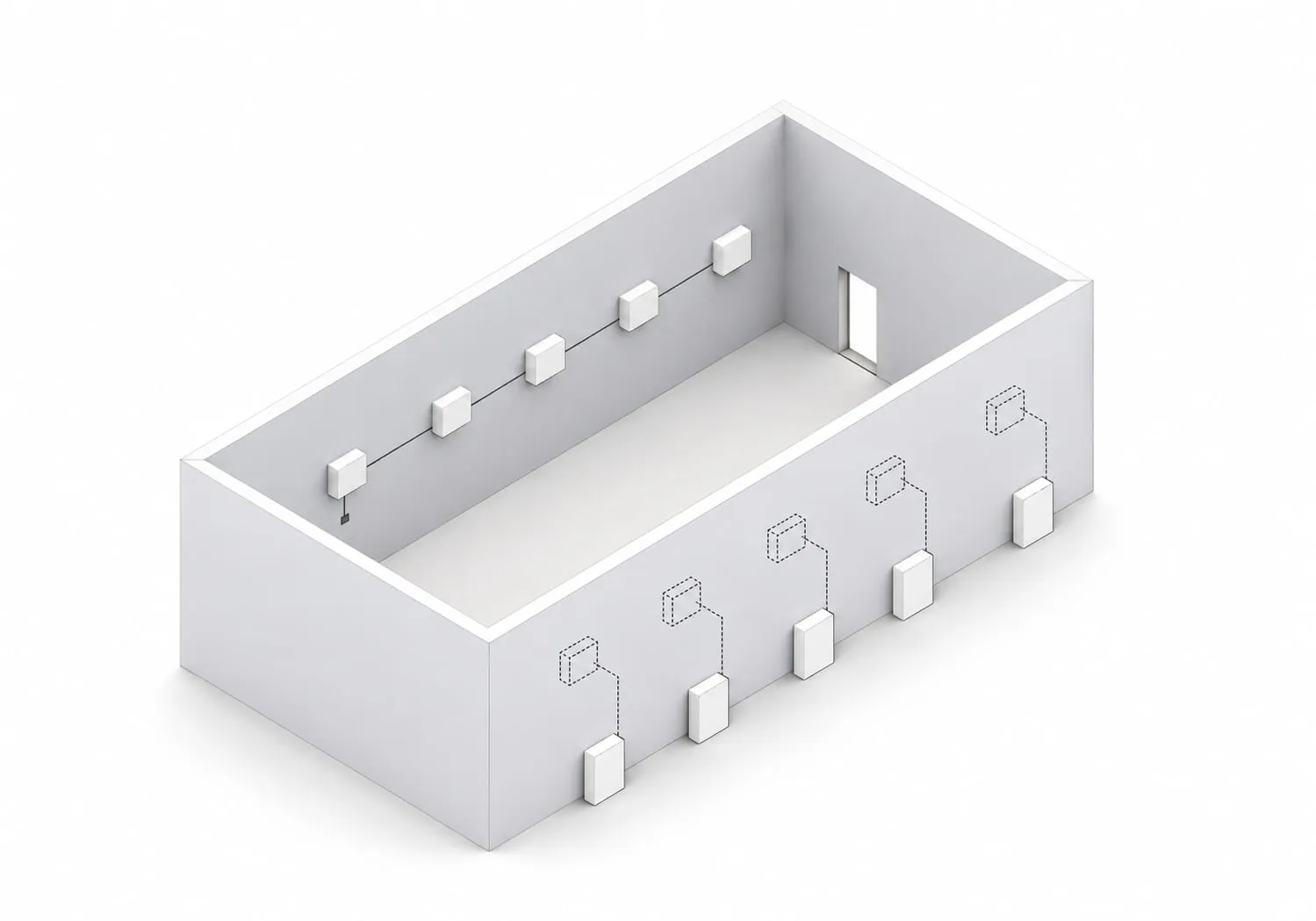

Modular System with Maximum Comfort

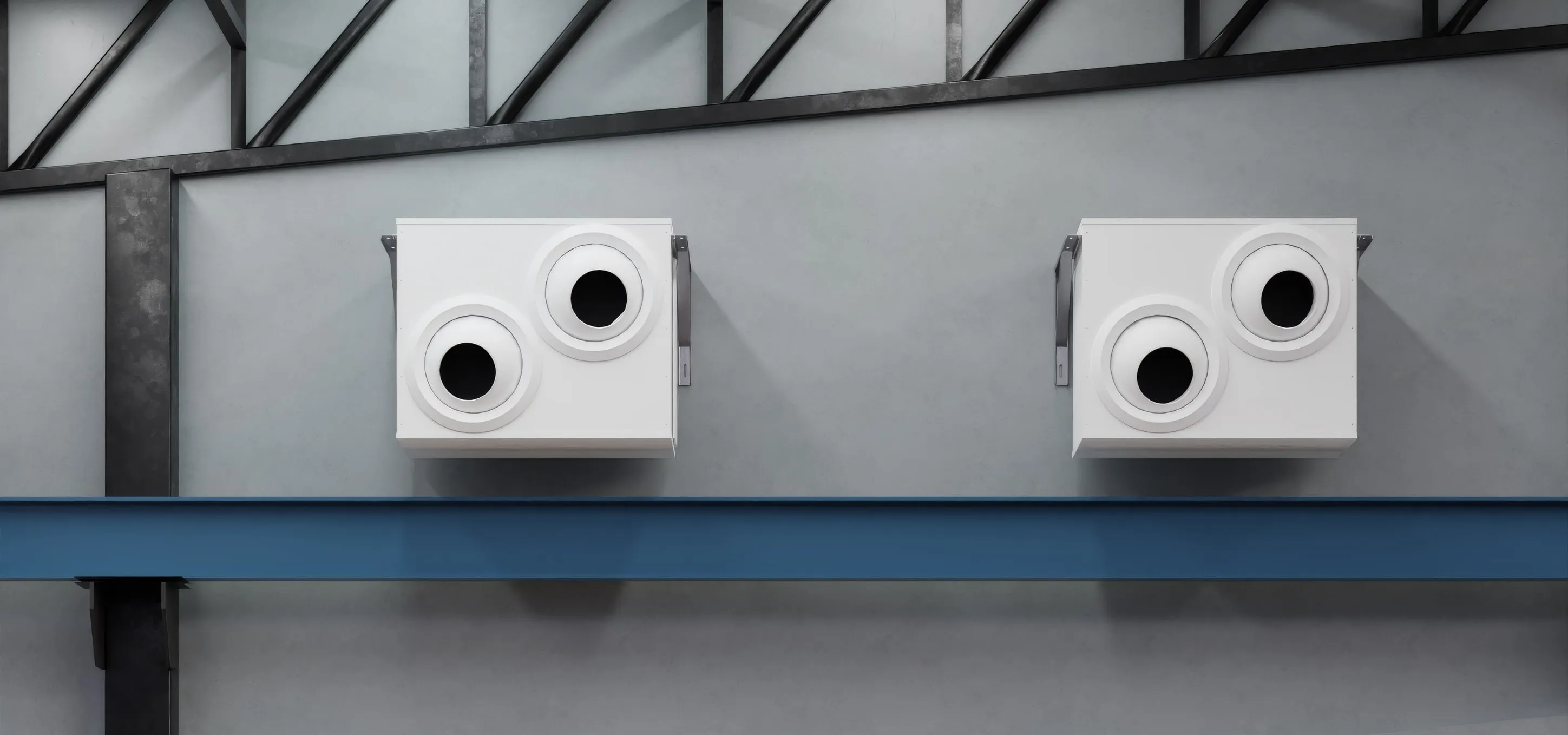

OKKI is a modular system that allows multiple installation of units. It includes all the necessary components for quick and easy installation, with wall mounting brackets and needing only the refrigerant connections to the indoor unit.
Indoor unit
Outdoor unit
Key Specifications
Heating
- Total rated power output (Btu/h)
- Minimum total power output (Btu/h)
- Maximum total power output
- COP
- COP (maximum - minimum)
15
- 48.2
- 14.2
- 54.0
- 3.88
- 5.53 - 3.49
30
- 91.1
- 21.5
- 102.0
- 3.74
- 5.83 - 3.36
Cooling
- Total rated power output (Btu/h)
- Minimum total power output (Btu/h)
- Maximum total power output
- EER
- EER (maximum - minimum)
15
- 47.8
- 14.0
- 56.6
- 11.81
- 8.4 - 17.57
30
- 82.5
- 20.9
- 90.5
- 12.97
- 10.06 - 18.11
Heating
- Total rated power output (kW)
- Minimum total power output (kW)
- Maximum total power output (kW)
- COP
- COP (maximum - minimum)
15
- 14.1
- 4.2
- 15.8
- 3.88
- 5.53 - 3.49
30
- 26.7
- 6.3
- 29.9
- 3.74
- 5.83 - 3.36
Cooling
- Total rated power output (kW)
- Minimum total power output (kW)
- Maximum total power output (kW)
- EER
- EER (maximum - minimum)
15
- 14.0
- 4.1
- 16.6
- 11.81
- 8.4 - 17.57
30
- 24.2
- 6.1
- 26.5
- 12.97
- 10.06 - 18.11
